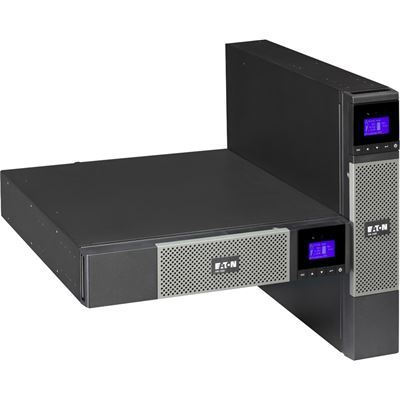

EATON 5PX Gen 2 1500VA/1500W 2U Rack/Tower UPS.10Amp Input, 8 x
- Brand: Eaton
- Category: UPS Systems
- SKU: 5PX1500IRT2UAUG2
- MPN: 5PX1500IRT2UAUG2
Eaton
EATON 5PX Gen 2 1500VA/1500W 2U Rack/Tower UPS.10Amp Input, 8 x
- SKU
- CNZ-CD-004440
- MPN
- 5PX1500IRT2UAUG2
- Rating
- No reviews yet
−9%
Overview
EATON 5PX Gen 2 1500VA/1500W 2U Rack/Tower UPS.10Amp Input, 8 x IEC10Amp Outlets. External Battery Connector. Pure Sinewave Output, Communications Card Slot. 3-5 days lead time if out of stock
Specifications
Input
| Input | IEC C14 (10A) |
|---|
Format
| Format | RT2U (tower/rack 2U) |
|---|
Output
| Output | (8) IEC C13 (10A) |
|---|
Safety
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
|---|
5PX 1500
| 5PX 1500 | 44 |
|---|
Warranty
| Warranty | 3 years (See ANZ Warranty Statement) |
|---|
Approvals
| Approvals | CE / CB report (TUV) / cTUVus / EAC / UKCA / Ukr / Cm / RCM |
|---|
Format (2)
| Format (2) | Electrical Characteristics |
|---|
Technology
| Technology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
|---|
Rating (VA/W)
| Rating (VA/W) | 1500VA/1500W |
|---|
Warranty (31)
| Warranty (31) | *5% derating @ 200V |
|---|
Warranty (32)
| Warranty (32) | **Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. |
|---|
Approvals (24)
| Approvals (24) | Dimensions W x D x H / Weight |
|---|
Output voltage
| Output voltage | 230V (+6/-10%)(Adjustable to 200V*/208V/220V/230V/240V), 50/60 Hz +/-0.1 Hz (autosensing) |
|---|
EBM weight (kg)
| EBM weight (kg) | 27.8 |
|---|
UPS Weight (kg)
| UPS Weight (kg) | 22.4 |
|---|
EMC, Performance
| EMC, Performance | IEC/EN 62040-2, FCC Class B, CISPR22 Class B |
|---|
Battery management
| Battery management | ABM® Temperature compensated charging method (user selectable). Automatic battery test, deep discharge protection, automatic recognition of external battery units |
|---|
Communication slot
| Communication slot | 1 slot for Network-M2, INDGW-M2, or RELAY-MS cards |
|---|
Output voltage (7)
| Output voltage (7) | Connections |
|---|
Communication ports
| Communication ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF + 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay |
|---|
EBM dimensions (mm)
| EBM dimensions (mm) | 438x448x85.5 |
|---|
UPS Dimensions (mm)
| UPS Dimensions (mm) | 438x448x85.5 |
|---|
EBM weight (kg) (29)
| EBM weight (kg) (29) | Customer Service & Support |
|---|
Operating temperature
| Operating temperature | 0 to 40°C |
|---|
Typical Backup Times**
| Typical Backup Times** | 300W |
|---|
Battery management (15)
| Battery management (15) | Interfaces |
|---|
Communication slot (18)
| Communication slot (18) | Operating conditions, standards and approvals |
|---|
Remote controlled sockets
| Remote controlled sockets | 2 groups of (2) IEC C13 (10A) |
|---|
Operating temperature (20)
| Operating temperature (20) | Noise level |
|---|
Remote controlled sockets (11)
| Remote controlled sockets (11) | Batteries |
|---|
Input voltage range without batteries
| Input voltage range without batteries | 160V-294V (adjustable to 150V-294V) |
|---|
Input frequency range without batteries
| Input frequency range without batteries | 47 to 70 Hz (50Hz system), 56.5 to 70Hz (60Hz system), 40Hz in low-sensitivity mode |
|---|
Questions
$3,466.09inc GST
