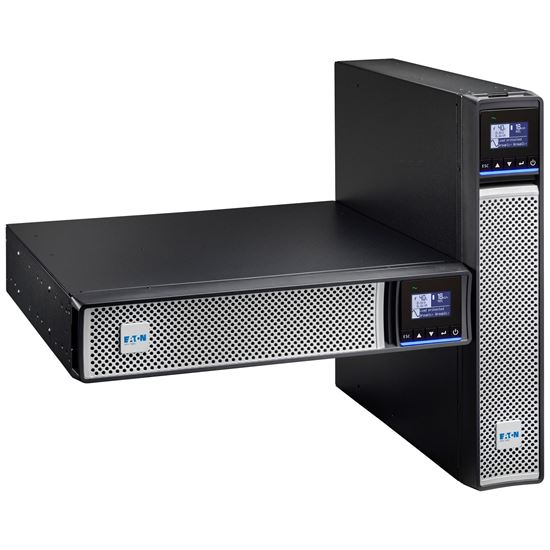

EATON 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS.16Amp Input, 8 x
- Brand: Eaton
- Category: UPS Systems
- SKU: 5PX2200IRT2UAUG2
- MPN: 5PX2200IRT2UAUG2
Eaton
EATON 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS.16Amp Input, 8 x
- SKU
- CNZ-CD-004442
- MPN
- 5PX2200IRT2UAUG2
- Rating
- No reviews yet
−17%
Overview
EATON 5PX Gen 2 2200VA/2200W 2U Rack/Tower UPS.16Amp Input, 8 x IEC10Amp, 2 x IEC 16Amp Outlets. External Battery Connector. Communications Card Slot. 3-5 days lead time if out of stock
Specifications
Input
| Input | IEC C20 (16A) |
|---|
Format
| Format | RT2U (tower/rack 2U) |
|---|
Output
| Output | (8) IEC C13 (10A)(2) IEC C19 (16A) |
|---|
Safety
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
|---|
5PX 1500
| 5PX 1500 | 13 |
|---|
5PX 2000
| 5PX 2000 | 16 |
|---|
5PX 2200
| 5PX 2200 | 16 |
|---|
5PX 3000
| 5PX 3000 | 23 |
|---|
Warranty
| Warranty | 3 years (See ANZ Warranty Statement) |
|---|
Approvals
| Approvals | CE / CB report (TUV) / cTUVus / EAC / UKCA / Ukr / Cm / RCM |
|---|
Format (2)
| Format (2) | Electrical Characteristics |
|---|
Technology
| Technology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
|---|
Noise level
| Noise level | <40dB @ typical load |
|---|
Rating (VA/W)
| Rating (VA/W) | 2200VA/2200W |
|---|
Approvals (31)
| Approvals (31) | Dimensions W x D x H / Weight |
|---|
Output voltage
| Output voltage | 230V (+6/-10%)(Adjustable to 200V*/208V/220V/230V/240V), 50/60 Hz +/-0.1 Hz (autosensing) |
|---|
EBM weight (kg)
| EBM weight (kg) | 40.4kg |
|---|
UPS Weight (kg)
| UPS Weight (kg) | 28.2kg |
|---|
EMC, Performance
| EMC, Performance | IEC/EN 62040-2, FCC Class B, CISPR22 Class B |
|---|
Battery management
| Battery management | ABM® Temperature-compensated charging method (user selectable). Automatic battery test, deep discharge protection, automatic recognition of external battery units |
|---|
Communication slot
| Communication slot | 1 slot for Network-M2, INDGW-M2, or RELAY-MS cards |
|---|
Output voltage (7)
| Output voltage (7) | Connections |
|---|
Communication ports
| Communication ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF + 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay |
|---|
EBM dimensions (mm)
| EBM dimensions (mm) | 438x603x85.5mm |
|---|
UPS Dimensions (mm)
| UPS Dimensions (mm) | 438x603x85.5mm |
|---|
EBM weight (kg) (36)
| EBM weight (kg) (36) | Customer Service & Support |
|---|
Operating temperature
| Operating temperature | 0°C~40°C |
|---|
Typical Backup Times**
| Typical Backup Times** | 800W |
|---|
Battery management (22)
| Battery management (22) | Interfaces |
|---|
Communication slot (25)
| Communication slot (25) | Operating conditions, standards and approvals |
|---|
5PX 1500 + 1 EBM / 4 EBM
| 5PX 1500 + 1 EBM / 4 EBM | 53/199 |
|---|
5PX 2000 + 1 EBM / 4 EBM
| 5PX 2000 + 1 EBM / 4 EBM | 80/319 |
|---|
5PX 2200 + 1 EBM / 4 EBM
| 5PX 2200 + 1 EBM / 4 EBM | 80/319 |
|---|
5PX 3000 + 1 EBM / 4 EBM
| 5PX 3000 + 1 EBM / 4 EBM | 86/323 |
|---|
Remote-controlled sockets
| Remote-controlled sockets | 1 group of (2) IEC C13 (10A)1 group of (2) IEC C13 (10A) + (1) IEC C19 (16A) Batteries |
|---|
Remote-controlled sockets (11)
| Remote-controlled sockets (11) | Batteries |
|---|
Input voltage range without batteries
| Input voltage range without batteries | 160V~294V (adjustable to 150V~294V) |
|---|
Input frequency range without batteries
| Input frequency range without batteries | 47~70 Hz (50Hz system), 56.5~70Hz (60Hz system), 40Hz in low-sensitivity mode |
|---|
Questions
$4,718.44inc GST
