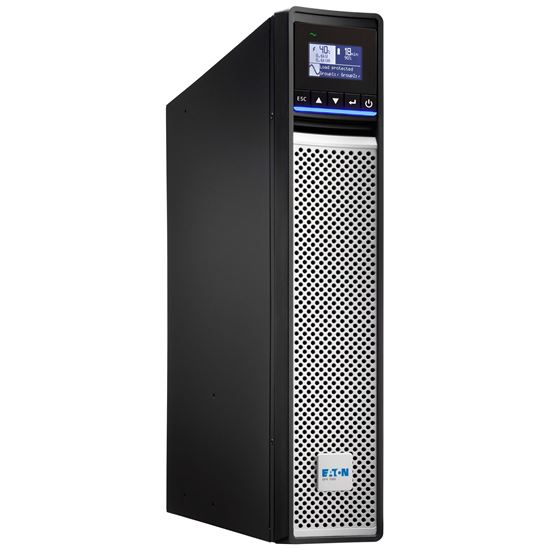

EATON 5PX Gen 2 3000VA/3000W 3U Rack/Tower UPS.16Amp Input, 8 x
- Brand: Eaton
- Category: UPS Systems
- SKU: 5PX3000IRT3UAUG2
- MPN: 5PX3000IRT3UAUG2
Eaton
EATON 5PX Gen 2 3000VA/3000W 3U Rack/Tower UPS.16Amp Input, 8 x
- SKU
- CNZ-CD-004444
- MPN
- 5PX3000IRT3UAUG2
- Rating
- No reviews yet
−17%
Overview
EATON 5PX Gen 2 3000VA/3000W 3U Rack/Tower UPS.16Amp Input, 8 x IEC10Amp, 2 x IEC 16Amp Outlets. External Battery Connector. Communications Card Slot. 3-5 days lead time if out of stock
Specifications
Spec
| Spec | Technical specifications |
|---|
Input
| Input | IEC C20 (16A) |
|---|
Format
| Format | RT2U or RT3U |
|---|
Output
| Output | (8) IEC C13 (10A)(2) IEC C19 (16A) |
|---|
Safety
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
|---|
Spec (1)
| Spec (1) | 3000 |
|---|
Warranty
| Warranty | 3 years (See ANZ Warranty Statement) |
|---|
Approvals
| Approvals | CE / CB report (TUV) / cTUVus / EAC / UKCA / Ukr / Cm / RCM |
|---|
Format (4)
| Format (4) | Electrical Characteristics |
|---|
Technology
| Technology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
|---|
Output (12)
| Output (12) | Remote controlled sockets |
|---|
5PX 1500 - 44
| 5PX 1500 - 44 | 24 13 7 |
|---|
5PX 2000 - 50
| 5PX 2000 - 50 | 28 16 9 4 |
|---|
5PX 2200 - 50
| 5PX 2200 - 50 | 28 16 9 4 |
|---|
5PX 3000 - 68
| 5PX 3000 - 68 | 39 23 13 7 4 |
|---|
Rating (VA/W)
| Rating (VA/W) | 3000VA/3000W |
|---|
Warranty (39)
| Warranty (39) | *5% derating @ 200V |
|---|
Warranty (40)
| Warranty (40) | **Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. |
|---|
Warranty (41)
| Warranty (41) | In the interest of continuous product improvement, all specifications are subject to change without notice. |
|---|
Warranty (42)
| Warranty (42) | * All 5PX UPS and EBM are delivered with rack kit |
|---|
Approvals (32)
| Approvals (32) | Dimensions W x D x H / Weight |
|---|
Output voltage
| Output voltage | 230V (+6/-10%)(Adjustable to 200V*/208V/220V/230V/240V), 50/60 Hz +/-0.1 Hz (autosensing) |
|---|
EBM weight (kg)
| EBM weight (kg) | 40.4 (RT2U) / 39.7 (RT3U) |
|---|
UPS Weight (kg)
| UPS Weight (kg) | 31.7 (RT2U) / 31.1 (RT3U) |
|---|
EMC, Performance
| EMC, Performance | IEC/EN 62040-2, FCC Class B, CISPR22 Class B |
|---|
Battery management
| Battery management | ABM® Temperature-compensated charging method (user selectable). Automatic battery test, deep discharge protection, automatic recognition of external battery units |
|---|
Communication slot
| Communication slot | 1 slot for Network-M2, INDGW-M2, or RELAY-MS cards |
|---|
Output voltage (9)
| Output voltage (9) | Connections |
|---|
Communication ports
| Communication ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF + 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay |
|---|
EBM dimensions (mm)
| EBM dimensions (mm) | 438x603x85.5 (RT2U)438x483x129 (RT3U) |
|---|
UPS Dimensions (mm)
| UPS Dimensions (mm) | 438x603x85.5 (RT2U)438x483x129 (RT3U) |
|---|
EBM weight (kg) (37)
| EBM weight (kg) (37) | Customer Service & Support |
|---|
Operating temperature
| Operating temperature | 0 to 40°C |
|---|
Battery management (23)
| Battery management (23) | Interfaces |
|---|
Communication slot (26)
| Communication slot (26) | Operating conditions, standards and approvals |
|---|
Operating temperature (28)
| Operating temperature (28) | Noise level |
|---|
5PX 1500 + 1 EBM / 4 EBM - 164/611
| 5PX 1500 + 1 EBM / 4 EBM - 164/611 | 92/346 53/199 33/123 |
|---|
5PX 2000 + 1 EBM / 4 EBM - 242/958
| 5PX 2000 + 1 EBM / 4 EBM - 242/958 | 138/551 80/319 49/197 30/121 |
|---|
5PX 2200 + 1 EBM / 4 EBM - 242/958
| 5PX 2200 + 1 EBM / 4 EBM - 242/958 | 138/551 80/319 49/197 30/121 |
|---|
5PX 3000 + 1 EBM / 4 EBM - 255/950
| 5PX 3000 + 1 EBM / 4 EBM - 255/950 | 146/546 86/323 54/201 33/124 22/84 |
|---|
Input voltage range without batteries
| Input voltage range without batteries | 160V-294V (adjustable to 150V-294V) |
|---|
BatteriesTypical Backup Times** - 300W
| BatteriesTypical Backup Times** - 300W | 500W 800W 1200W 1800W 2500W |
|---|
Input frequency range without batteries
| Input frequency range without batteries | 47 to 70 Hz (50Hz system), 56.5 to 70Hz (60Hz system), 40Hz in low-sensitivity mode |
|---|
Questions
$6,316.94inc GST
