ALLIED TELESIS 1000T to 1000X/ST Desktop 1000T to 1000X/ST Desktop MC U.S. Power/ TAA
Brand: ALLIED TELESIS Category: Network Accessories SKU: 4282884 MPN: AT-DMC1000/ST-90 Home Network Accessories ALLIED TELESIS ALLIED TELESIS Allied Telesis AT-DMC1000/ST-90 network media converter 1000 Mbit/s…
SKU CNZ-IM-019862
MPN AT-DMC1000/ST-90 Pricing Price on request
Sales confirms current pricing and availability by email before any order. Tracked courier, NZ-wide. Rates calculated at checkout. Online only, no pick-up.GST tax invoice emailed the moment your order is paid.Genuine NZ warranty , serviced in New Zealand.Your Consumer Guarantees Act rights apply on top.

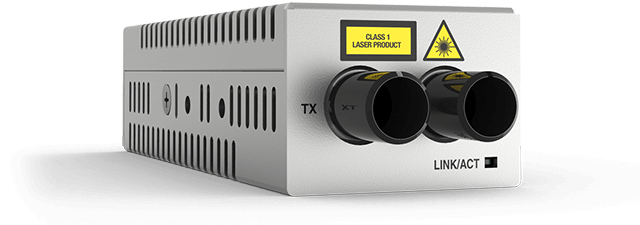

Overview Specifications Questions Overview Gigabit Desktop USB-Powered Media Converter
Key features Maximum data transfer rate: 1000 Mbit/s Converter input interface: 1000Base-T Converter output interface: 1000Base-SX Networking standards: IEEE 802.1Q Ethernet interface type: Gigabit Ethernet Ethernet LAN data rates: 10,100,1000 Mbit/s Data transfer rate: 1000 Mbit/s Packet forwarding rate (10 Mbps): 14880 pps Packet forwarding rate (100 Mbps): 148800 pps Packet forwarding rate (1 Gbps): 1488000 pps VLAN support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes Rate limiting: Yes Duplex system: Full, Half Link Loss Carry Forward (LLCF) supported: Yes Link Loss Return (LLR) supported: Yes Cable types supported: Fiber Maximum transfer distance: 550 m Wavelength: 850 nm Fiber mode structure: Multi-mode Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm Tx power (min): -9.5 dBmW Tx power (max): -4 dBmW At a glance Output voltage 5 V Maximum data transfer rate 1000 Mbit/s Converter input interface 1000Base-T Converter output interface 1000Base-SX Networking standards IEEE 802.1Q Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Data transfer rate 1000 Mbit/s
All 47 specifications Specifications Network Maximum data transfer rate 1000 Mbit/s Converter input interface 1000Base-T Converter output interface 1000Base-SX Networking standards IEEE 802.1Q Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Data transfer rate 1000 Mbit/s Packet forwarding rate (10 Mbps) 14880 pps Packet forwarding rate (100 Mbps) 148800 pps Packet forwarding rate (1 Gbps) 1488000 pps VLAN support Yes Auto MDI/MDI-X Yes Auto-negotiation Yes Rate limiting Yes Duplex system Full, Half Link Loss Carry Forward (LLCF) supported Yes Link Loss Return (LLR) supported Yes Cable types supported Fiber
Features Internal No LED indicators Yes Product colour Grey
Performance Maximum transfer distance 550 m Wavelength 850 nm Fiber mode structure Multi-mode Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm Tx power (min) -9.5 dBmW Tx power (max) -4 dBmW Rx power (min) -17 dBmW
Certificates Compliance certificates RoHS Safety UL60950-1, EN60950-1 Certification FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Ports & interfaces Connectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 1 Fiber optic connector ST DC-in jack Yes
Weight & dimensions Width 31.8 mm Depth 91.4 mm Height 21.6 mm Weight 113 g
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 65 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Operating altitude 0 - 3048 m
