Allied Telesis X230-18GP-40 L2+ Giga Switch, 16X 10/100/1000-T POE+, 2X SFP Ports, 1 X Fixed PSU, Au Power Cord
- Brand: Allied Telesis
- Category: Switches
- SKU: AT-X230-18GP-40
- MPN: AT-X230-18GP-40
Allied Telesis
Allied Telesis AT-X230-18GP-30 Managed L3 Gigabit Ethernet…
- Our SKU
- MPN
- Rating
- No reviews yet
−26%
Overview
Gigabit Edge Switch

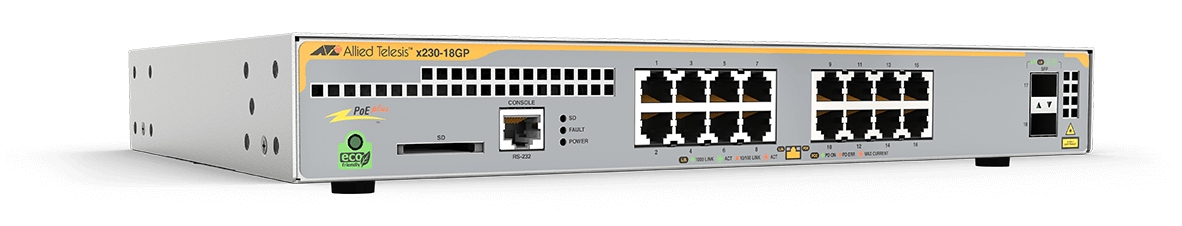

The Allied Telesis x230-18GP features 16 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. A full feature-set with Power over Ethernet Plus (PoE+) makes it ideal for applications at the network edge, supporting the growth of wireless networking and digital video surveillance.
The Allied Telesis x230-18GP features 16 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. A full feature-set with Power over Ethernet Plus (PoE+) makes it ideal for applications at the network edge, supporting the growth of wireless networking and digital video surveillance.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: Y
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
- Power connector: DC-in jack
- Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Switching capacity: 36 Gbit/s
- Throughput: 26.8 Mpps
- MAC address table: 16000 entries
- DHCP features: DHCP server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
Specifications
Power
| AC input voltage | 90 - 260 V |
|---|---|
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 21 W |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Security
| DHCP features | DHCP server, DHCP client |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
Performance
| Internal memory | 256 MB |
|---|---|
| Noise level | 34 dB |
Packaging data
| Package width | 430 mm |
|---|---|
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4.35 kg |
Data transmission
| Switching capacity | 36 Gbit/s |
|---|---|
| Throughput | 26.8 Mpps |
| MAC address table | 16000 entries |
Multicast features
| Multicast support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Power connector | DC-in jack |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Y |
Weight & dimensions
| Width | 341 mm |
|---|---|
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 3 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 81 BTU/h |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
