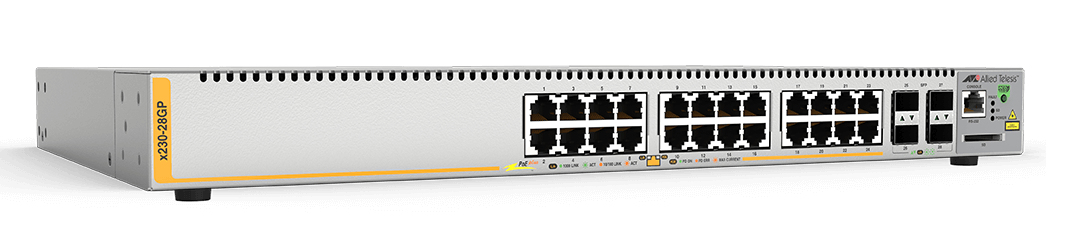

Allied Telesis X230-28GP-40 L2+ Giga Switch, 24X 10/100/1000-T POE+, 4X SFP Ports, 1 X Fixed PSU, Au Power Cord

  • Brand: Allied Telesis
  • Category: Switches
  • SKU: AT-X230-28GP-40
  • MPN: AT-X230-28GP-40
Allied Telesis

Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000)…

Our SKU
MPN
Barcode
−27%
Allied Telesis X230-28GP-40 L2+ Giga Switch, 24X 10/100/1000-T POE+, 4X SFP Ports, 1 X Fixed PSU, Au Power Cord — Allied Telesis

Overview

Gigabit Managed Edge Switches
Maximum network performance for even the most demanding applications, the x230 family offers an impressive set of features in a compact design, ready for flexible deployment.

Key features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Installed SFP modules quantity: 4
  • Compatible memory cards: SD, SDHC
  • Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes

Specifications

Power

Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current2.4 A
Power consumption (max)520 W

Design

Rack mountingYes
StackableYes
Form factor1U
LED indicatorsYes
Electromagnetic compatibilityEN55022 class A, FCC class A, VCCI class A

Network

Networking standardsIEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Port mirroringYes
Full duplexYes
IP routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Active link detectionYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN, Stacked VLAN, Tagged VLAN
Number of VLANs2048

Security

DHCP featuresDHCP client, DHCP snooping, DHCPv6 client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms3DES, AES, MD5, PEAP, SHA-1, SHA-2, SNMPv3, SSH, SSL/TLS, TTLS
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN, MAC-based authentication, Web-based authentication
Password protectionYes
Authentication typeAAA, IEEE 802.1x
Queue scheduling algorithmsSP, Weighted Round Robin (WRR)

Protocols

Management protocolsSNMPv1, v2c, v3
Routing protocolsRIP, RIP-2

Performance

Memory typeDDR-SDRAM
Internal memory256 MB
Flash memory64 MB
Noise level34 dB
Firmware upgradeableYes

Certificates

CertificationUL, cUL, UL-EU, RoHS

Optical fiber

Fiber ethernet cabling technology100BASE-X, 1000BASE-X

Logistics data

Country of originChina

Packaging data

Package width530 mm
Package depth430 mm
Package height150 mm
Package weight6.35 kg

Data transmission

Switching capacity56 Gbit/s
Forwarding rate41.7 Mpps
MAC address table16000 entries
Latency (1 Gbps)4.3 µs
Number of queues8
Static routeYes
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory1.5 MB

Multicast features

Multicast supportYes
Multicast MAC address table512 entries

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Installed SFP modules quantity4
Compatible memory cardsSD, SDHC

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes

Weight & dimensions

Width440 mm
Depth290 mm
Height44 mm
Weight4.7 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 2000 m
Heat dissipation303 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Total Power over Ethernet (PoE) budget370 W

Questions

$2,692.14inc GST
