APC Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User…

SKU: CNZ-IM-000068
MPN: BK350EI
Rating: No reviews yet

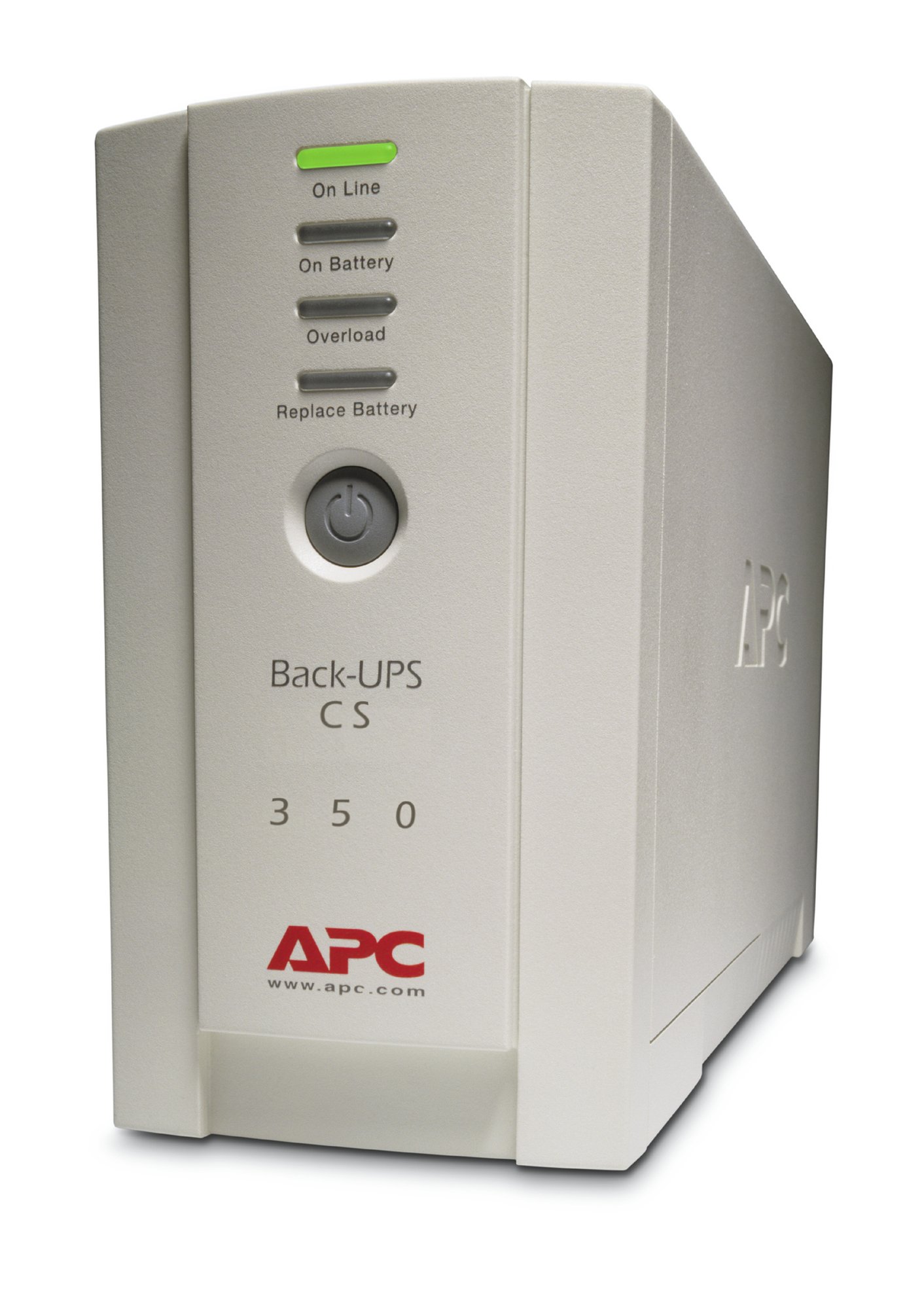

APC BACK-UPS CS 350VA USB/SERIAL 230V — APC

Overview

This product is part of the Back-UPS range. The BK350EI features a total of 6 power outlets, 5 of which are UPS battery backup and one that is surge only. Its runtime at 100W is 14 minutes 52 seconds. It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK350EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Key features

UPS topology: Standby (Offline)
Output power capacity: 0.35 kVA
Output power: 210 W
Input operation voltage (min): 180 V
Input operation voltage (max): 266 V
Input frequency: 50/60 Hz
Output frequency regulation: 47 - 63 Hz
Maximum current: 7 A
Surge energy rating: 310 J
Hold time (min): 6 ms
Hold time (max): 10 ms
Efficiency: 98.6%
Surge protection: Yes
Surge protection features: Digital Subscriber Line (DSL), Fax, Modem, Telephone
Power protection features: Overload
Audible alarm(s): Yes
Audible alarm modes: Low battery alarm, Overload alarm
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Number of output IEC jumpers: 2
USB port: Yes
SmartSlot: No
SmartConnect port: No

At a glance

Form factor	Tower
Cable length	1.83 m
Product colour	Beige
LED indicators	Battery replacement
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	116 VAh
Battery voltage	12 V
Typical backup time at full load	8.6 min

All 64 specifications

Specifications

Design

Form factor	Tower
Cable length	1.83 m
Product colour	Beige
LED indicators	Battery replacement

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	116 VAh
Battery voltage	12 V
Typical backup time at full load	8.6 min
Typical backup time at half load	22.1 min
Battery life (max)	6 year(s)
Battery recharge time	6 h
Automatic battery test	Yes

Features

UPS topology	Standby (Offline)
Output power capacity	0.35 kVA
Output power	210 W
Input operation voltage (min)	180 V
Input operation voltage (max)	266 V
Input frequency	50/60 Hz
Output frequency regulation	47 - 63 Hz
Maximum current	7 A
Surge energy rating	310 J
Hold time (min)	6 ms
Hold time (max)	10 ms
Efficiency	98.6%
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Power protection features	Overload
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm, Overload alarm

Certificates

Compliance certificates	RoHS
Certification	C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI

Logistics data

Products per pallet	48 pc(s)
Harmonized System (HS) code	85078000

Other features

Nominal output voltage	230 V
Nominal input voltage	230 V
Filtering	Yes

Packaging data

Warranty card	Yes
Software CD	Yes
Bundled software	PowerChute Serial Edition
Package width	241 mm
Package depth	368 mm
Package height	178 mm
Package weight	7.05 kg

Sustainability

Sustainability certificates	ENERGY STAR, Green Premium

Packaging content

Cables included	Phone (RJ-11), USB cable
Management card included	No
Quick installation guide	Yes

Ports & interfaces

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
USB port	Yes
SmartSlot	No
SmartConnect port	No

Weight & dimensions

Width	91 mm
Depth	284 mm
Height	165 mm
Weight	6.32 kg

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Questions

$192.04inc GST
