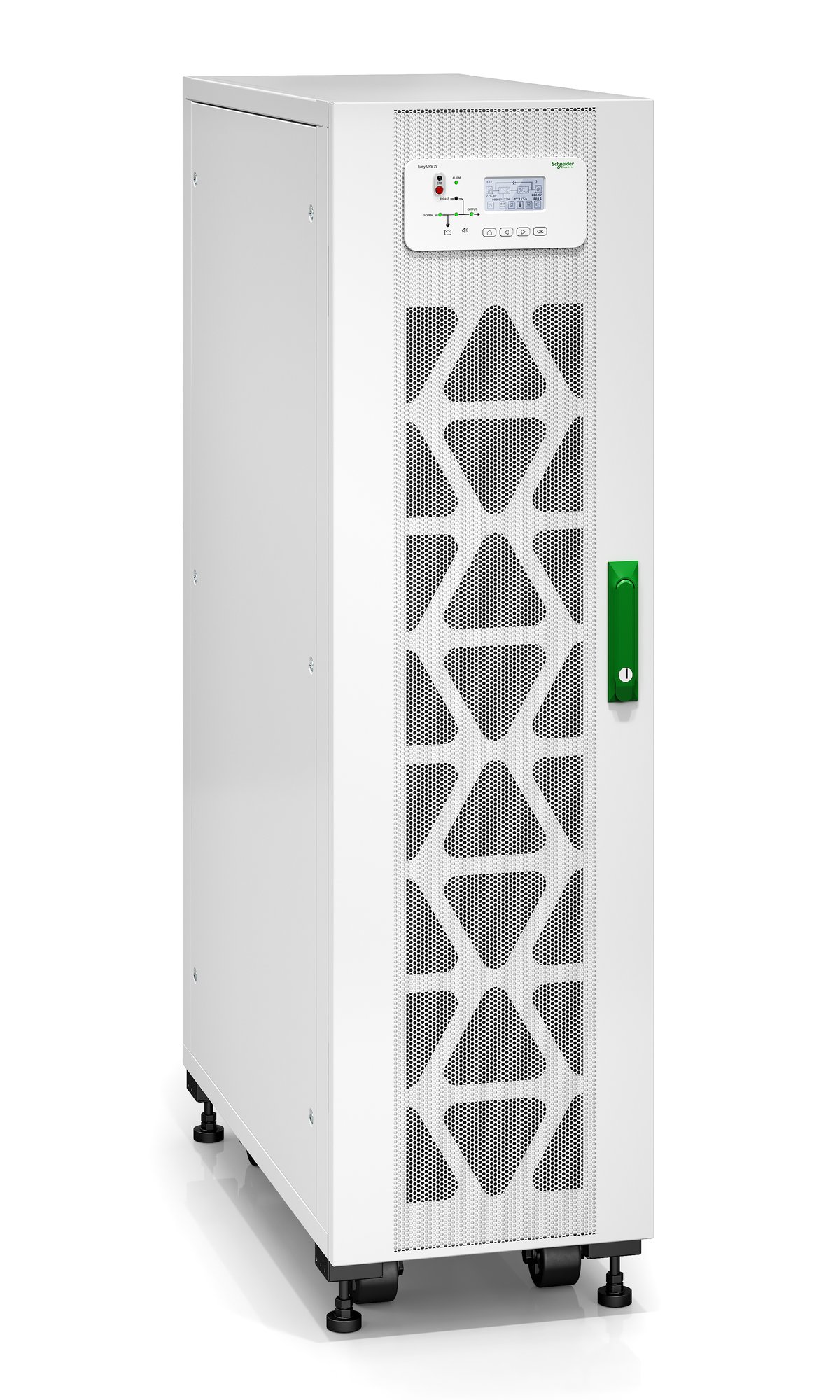

APC EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES

EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES

  • Brand: APC
  • Category: UPS Systems
  • SKU: E3SUPS20KHB
  • MPN: E3SUPS20KHB
APC

APC Easy 3S uninterruptible power supply (UPS) Double-conversion…

SKU
CNZ-DD-019911
MPN
E3SUPS20KHB
APC EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES — APC

Overview

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 380 mm, Depth: 928 mm, Height: 1400 mm

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 20 kVA
  • Output power: 20000 W
  • Waveform: Pure sine
  • Input operation voltage (min): 304 V
  • Input operation voltage (max): 477 V
  • Input frequency: 45/65 Hz
  • Output operation voltage (min): 380 V
  • Output operation voltage (max): 415 V
  • Output frequency: 50/60 Hz
  • Maximum current: 37 A
  • Number of input phases: 3
  • Number of output phases: 3
  • Input power factor: 0.99
  • Output voltage Total Harmonic Distortion (THD): 3%
  • Input current Total Harmonic Distortion (THD): 3%
  • SmartSlot: Yes
  • SmartConnect port: No
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery voltage: 220 V
  • Number of batteries supported: 3
  • Form factor: Tower
  • Product colour: White
  • Display type: LED

Specifications

Design

Form factorTower
Product colourWhite
Display typeLED
International Protection (IP) codeIP20

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage220 V
Number of batteries supported3

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power20000 W
WaveformPure sine
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Maximum current37 A
Number of input phases3
Number of output phases3
Input power factor0.99
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%

Certificates

Compliance certificatesRoHS
CertificationCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH

Logistics data

Harmonized System (HS) code85078000

Other features

Output voltage400 V

Packaging data

Package width563 mm
Package depth1014 mm
Package height1640 mm
Package weight158 kg

Packaging content

Management card includedNo
Quick installation guideYes

Ports & interfaces

SmartSlotYes
SmartConnect portNo

Weight & dimensions

Width380 mm
Depth928 mm
Height1400 mm
Weight122 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 999.9 m
Non-operating altitude0 - 15000 m
