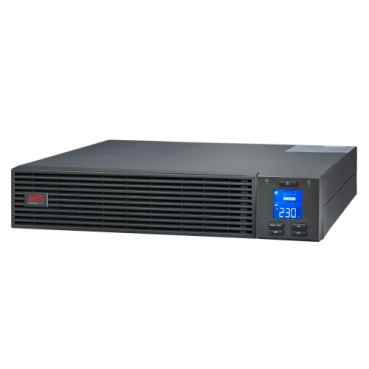

APC SRVPM2KRIL uninterruptible power supply (UPS) Double-conversion…

SKU: CNZ-IM-000108
MPN: SRVPM2KRIL
Rating: No reviews yet

APC EASY UPS ONLINE SRV RM EXT. RUNTIME — APC

Overview

APC SRVPM2KRIL. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery voltage: 72 V. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, REACH, RoHS, WEEE, Certification: UKCA EAC TISI EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Key features

UPS topology: Double-conversion (Online)
Output power capacity: 2 kVA
Output power: 1600 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 285 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Surge energy rating: 600 J
Efficiency: 88%
Crest factor: 3:1
Output voltage Total Harmonic Distortion (THD): 3%
Noise level: 50 dB
Audible alarm(s): Yes
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
Battery voltage: 72 V
Form factor: Rackmount
Rack capacity: 2U
Cooling type: Active
Product colour: Black

At a glance

Form factor	Rackmount
Rack capacity	2U
Cooling type	Active
Product colour	Black
Display type	LCD
International Protection (IP) code	IP20
Battery voltage	72 V
UPS topology	Double-conversion (Online)

All 45 specifications

Specifications

Design

Form factor	Rackmount
Rack capacity	2U
Cooling type	Active
Product colour	Black
Display type	LCD
International Protection (IP) code	IP20

Battery

Battery voltage	72 V

Features

UPS topology	Double-conversion (Online)
Output power capacity	2 kVA
Output power	1600 W
Waveform	Sine
Input operation voltage (min)	110 V
Input operation voltage (max)	285 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	600 J
Efficiency	88%
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	50 dB
Audible alarm(s)	Yes

Certificates

Compliance certificates	CE, REACH, RoHS, WEEE
Certification	UKCA EAC TISI EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Packaging data

Package width	545 mm
Package depth	700 mm
Package height	240 mm
Package weight	18.4 kg

Sustainability

Sustainability compliance	Yes
Doesn't contain	Mercury

Packaging content

Cables included	Output power cable, RS-232, USB cable

Ports & interfaces

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)

Weight & dimensions

Width	438 mm
Depth	462 mm
Height	86 mm
Weight	9.2 kg

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
