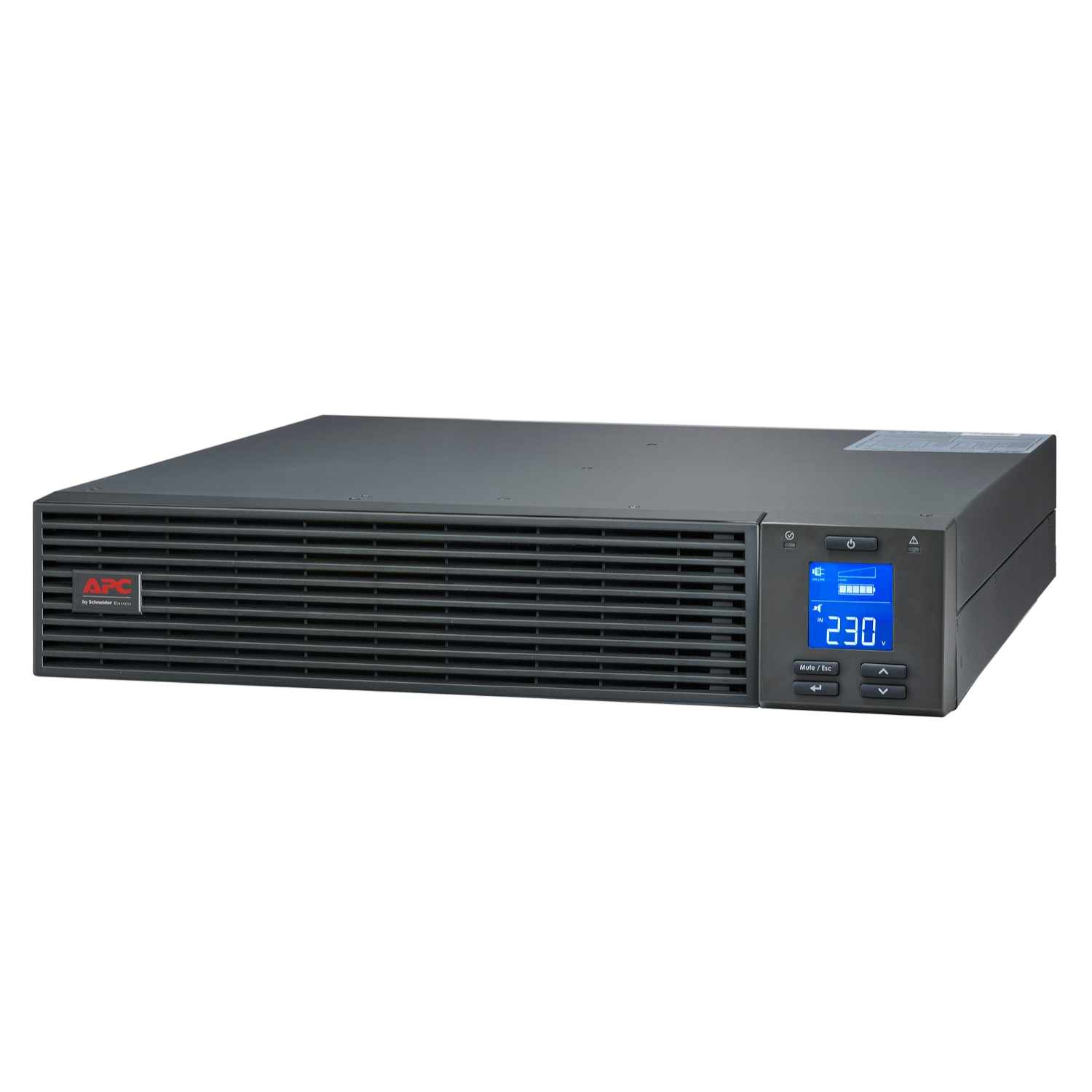

APC SRVPM3KRIL uninterruptible power supply (UPS) Double-conversion…

SKU: CNZ-IM-000109
MPN: SRVPM3KRIL
Rating: No reviews yet

APC EASY UPS ONLINE SRV RM EXT. RUNTIME — APC

Overview

APC SRVPM3KRIL. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2400 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 7 AC outlet(s). Battery voltage: 72 V. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, REACH, RoHS, UKCA, WEEE, Certification: EAC TISI EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Key features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2400 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 285 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Surge energy rating: 600 J
Efficiency: 88%
Noise level: 50 dB
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Power source type: AC
Detachable power cord: Yes
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 7 AC outlet(s)
SmartSlot: Yes
Battery voltage: 72 V
Form factor: Rackmount
Rack capacity: 2U

At a glance

Form factor	Rackmount
Rack capacity	2U
Product colour	Black
Display type	LCD
LED indicators	Yes
Battery voltage	72 V
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA

All 48 specifications

Specifications

Design

Form factor	Rackmount
Rack capacity	2U
Product colour	Black
Display type	LCD
LED indicators	Yes

Battery

Battery voltage	72 V

Features

UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2400 W
Waveform	Sine
Input operation voltage (min)	110 V
Input operation voltage (max)	285 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	600 J
Efficiency	88%
Noise level	50 dB
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Power source type	AC
Detachable power cord	Yes

Certificates

Compliance certificates	CE, REACH, RoHS, UKCA, WEEE
Certification	EAC TISI EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Packaging data

Package width	554 mm
Package depth	700 mm
Package height	240 mm
Package weight	13.7 kg

Sustainability

Sustainability compliance	Yes
Doesn't contain	Mercury

Packaging content

Rack mount kit	Yes
Cables included	Input power cable, Output power cable, RS-232, USB cable
Manual	Yes

Ports & interfaces

AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	7 AC outlet(s)
SmartSlot	Yes

Weight & dimensions

Width	438 mm
Depth	462 mm
Height	86 mm
Weight	9.5 kg

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Questions

$1,591.59inc GST
