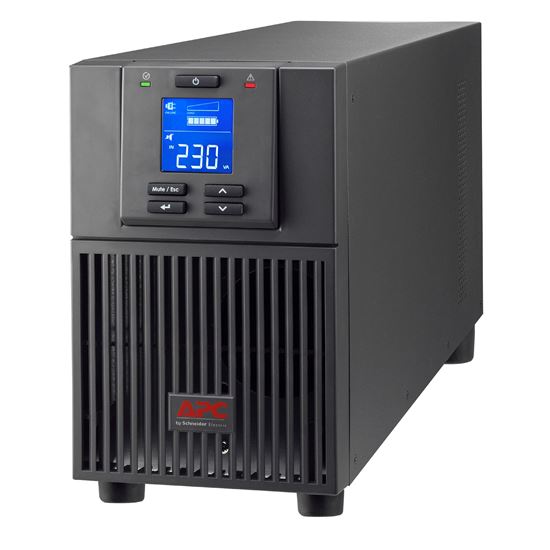

APC Easy UPS SRV 2000VA 230V
APC Easy UPS SRV 2000VA 230V
- Brand: APC
- Category: UPS Systems
- SKU: 4187325
- MPN: SRV2KI
APC
APC SRV2KI uninterruptible power supply (UPS) Double-conversion…
- SKU
- CNZ-IM-000077
- MPN
- SRV2KI
- Rating
- No reviews yet
Overview
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 2 kVA
- Output power: 1600 W
- Waveform: Sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 280 V
- Input frequency: 40 - 70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Surge energy rating: 600 J
- Crest factor: 3:1
- ECO mode: Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Surge protection: Yes
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
- AC outlet types: C13 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
Specifications
Design
| Form factor | Tower |
|---|---|
| Product colour | Black |
| Display type | LCD |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 4 h |
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 2 kVA |
| Output power | 1600 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2, REACH |
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
Packaging data
| Package width | 235 mm |
|---|---|
| Package depth | 525 mm |
| Package height | 355 mm |
| Package weight | 18.1 kg |
Packaging content
| Cables included | USB cable |
|---|---|
| Manual | Yes |
Ports & interfaces
| AC outlet types | C13 coupler |
|---|---|
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
Weight & dimensions
| Width | 145 mm |
|---|---|
| Depth | 400 mm |
| Height | 238 mm |
| Weight | 16.8 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763.6 m |
