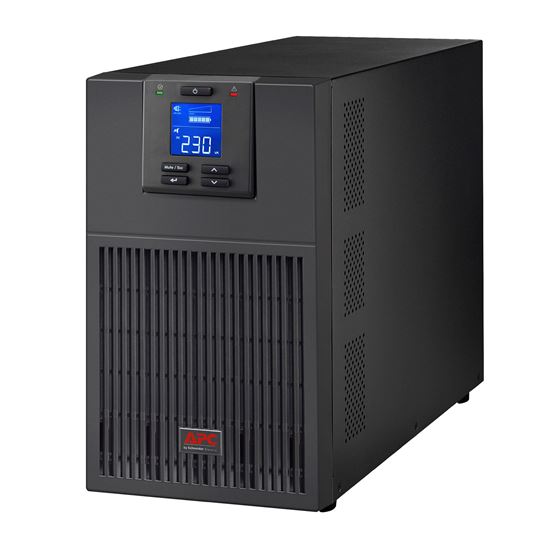

APC Easy UPS SRV 3000VA 230V

APC Easy UPS SRV 3000VA 230V

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4120264
  • MPN: SRV3KI
APC

APC SRV3KI uninterruptible power supply (UPS) Double-conversion…

SKU
CNZ-IM-000074
MPN
SRV3KI
APC Easy UPS SRV 3000VA 230V — APC

Overview

APC Easy UPS SRV 3000VA 230V

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Serial connectivity
Provides management of the UPS via a serial port.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 3 kVA
  • Output power: 2400 W
  • Input operation voltage (min): 110 V
  • Input operation voltage (max): 285 V
  • Input frequency: 40 - 70 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Surge energy rating: 600 J
  • Efficiency: 88%
  • Crest factor: 3:1
  • Emergency Power Off (EPO): No
  • Socket circuit breaker: Yes
  • AC outlet types: C13 coupler
  • Power plug: C19 coupler
  • AC outlets quantity: 6 AC outlet(s)
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • Serial interface: Yes
  • Serial interface type: RS-232
  • RS-232 ports: 1
  • Battery capacity: 9 Ah
  • Battery capacity: 48 VAh
  • Battery voltage: 12 V

Specifications

Design

Form factorMini Tower
Product colourBlack
Display typeLCD

Battery

Battery capacity48 VAh
Battery voltage12 V
Number of batteries supported1
Battery recharge time4 h

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2400 W
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Input frequency40 - 70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating600 J
Efficiency88%
Crest factor3:1
Emergency Power Off (EPO)No
Socket circuit breakerYes

Logistics data

Harmonized System (HS) code85078000

Packaging data

Warranty cardYes
Software CDYes
Package width325 mm
Package depth565 mm
Package height465 mm
Package weight29 kg

Packaging content

Cables includedInput power cable, Output power cable, RS-232, USB cable
ManualYes

Ports & interfaces

AC outlet typesC13 coupler
Power plugC19 coupler
AC outlets quantity6 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1

Weight & dimensions

Width190 mm
Depth425 mm
Height336 mm
Weight26.8 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
