APC EASY UPS3S 20KVA 400V 3:3 UPS
EASY UPS3S 20KVA 400V 3:3 UPSHIGH TOWER IN
- Brand: APC
- Category: UPS Systems
- SKU: 4252562
- MPN: E3SUPS20KHB
APC

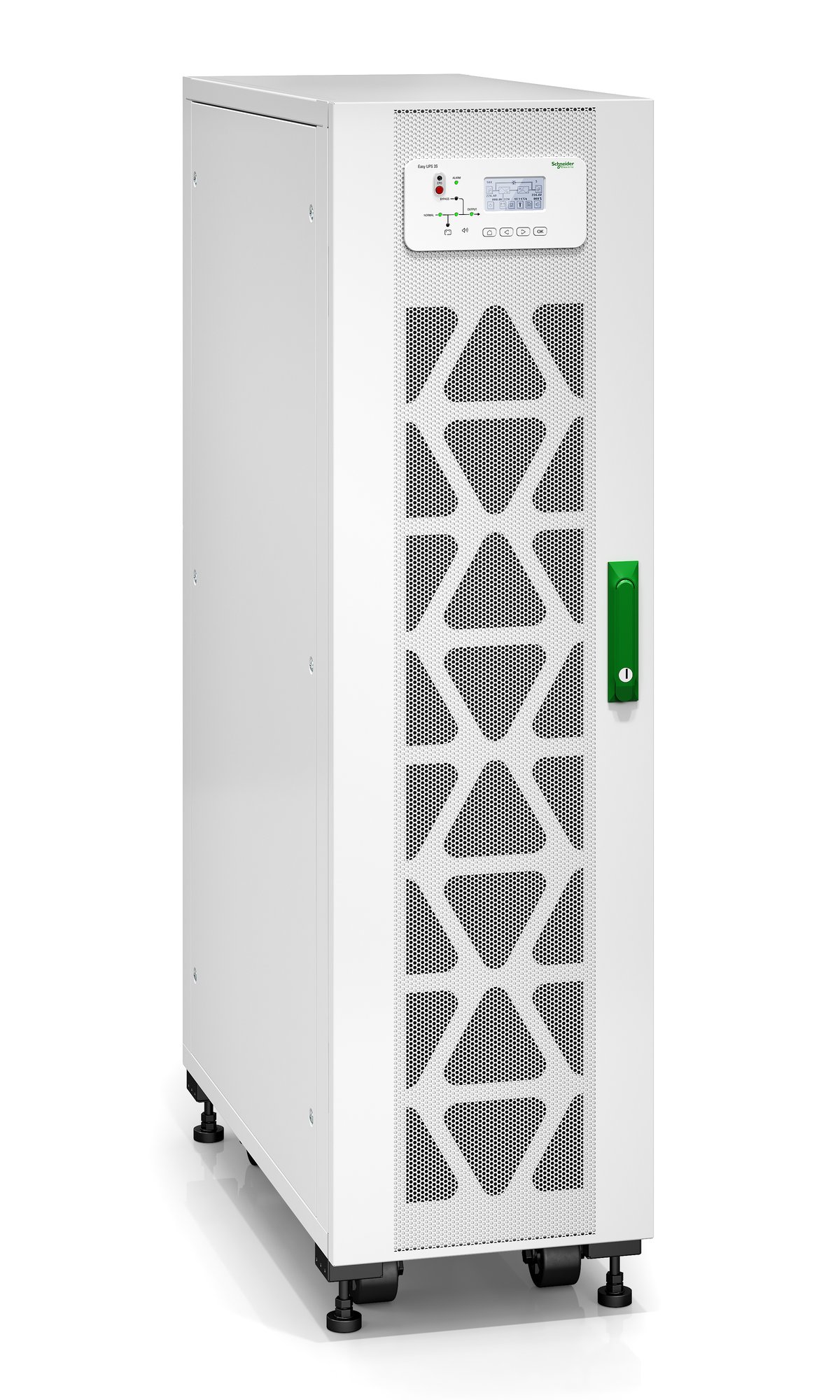

APC Easy 3S uninterruptible power supply (UPS) Double-conversion…
- SKU
- CNZ-IM-039025
- MPN
- E3SUPS20KHB
- Rating
- No reviews yet
−13%
Overview
APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 380 mm, Depth: 928 mm, Height: 1400 mm
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 20 kVA
- Output power: 20000 W
- Waveform: Pure sine
- Input operation voltage (min): 304 V
- Input operation voltage (max): 477 V
- Input frequency: 45/65 Hz
- Output operation voltage (min): 380 V
- Output operation voltage (max): 415 V
- Output frequency: 50/60 Hz
- Maximum current: 37 A
- Number of input phases: 3
- Number of output phases: 3
- Input power factor: 0.99
- Output voltage Total Harmonic Distortion (THD): 3%
- Input current Total Harmonic Distortion (THD): 3%
- SmartSlot: Yes
- SmartConnect port: No
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 220 V
- Number of batteries supported: 3
- Form factor: Tower
- Product colour: White
- Display type: LED
Specifications
Design
| Form factor | Tower |
|---|---|
| Product colour | White |
| Display type | LED |
| International Protection (IP) code | IP20 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery voltage | 220 V |
| Number of batteries supported | 3 |
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 37 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
Other features
| Output voltage | 400 V |
|---|
Packaging data
| Package width | 563 mm |
|---|---|
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 158 kg |
Packaging content
| Management card included | No |
|---|---|
| Quick installation guide | Yes |
Ports & interfaces
| SmartSlot | Yes |
|---|---|
| SmartConnect port | No |
Weight & dimensions
| Width | 380 mm |
|---|---|
| Depth | 928 mm |
| Height | 1400 mm |
| Weight | 122 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
