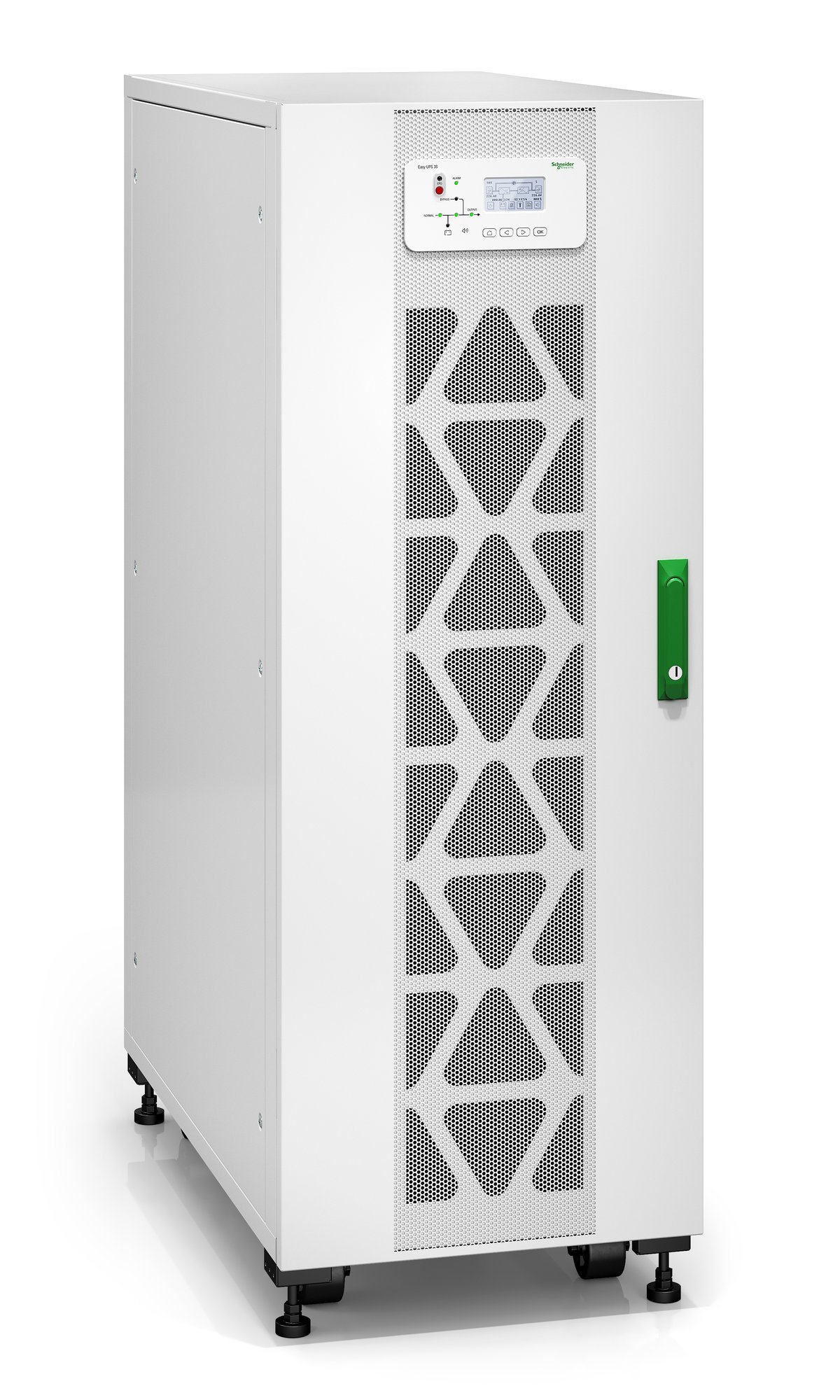

APC Easy UPS3S 40kVA 400V 3:3 UPS
Easy UPS3S 40kVA 400V 3:3 UPS
- Brand: APC
- Category: UPS Systems
- SKU: 4252570
- MPN: E3SUPS40KHB
APC
APC Easy UPS 3S uninterruptible power supply (UPS) Double-conversion…
- SKU
- CNZ-IM-039027
- MPN
- E3SUPS40KHB
- Rating
- No reviews yet
−13%
Overview
APC Easy UPS 3S. UPS topology: Double-conversion (Online), Output power capacity: 40 kVA, Output power: 40000 W. Serial interface type: RS-232. Form factor: Tower, Product colour: White, Display type: LCD. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Safety: IEC 62040-1-1
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 40 kVA
- Output power: 40000 W
- Waveform: Pure sine
- Input operation voltage (min): 304 V
- Input operation voltage (max): 477 V
- Output operation voltage (min): 380 V
- Output operation voltage (max): 400 V
- Output frequency regulation: 45 - 65 Hz
- Maximum current: 73 A
- Number of input phases: 3
- Number of output phases: 3
- Efficiency: 96%
- Emergency Power Off (EPO): Yes
- Noise level: 63 dB
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- SmartSlot: Yes
- SmartConnect port: No
- Form factor: Tower
- Product colour: White
- Display type: LCD
- International Protection (IP) code: IP20
Specifications
Design
| Form factor | Tower |
|---|---|
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 400 V |
| Output frequency regulation | 45 - 65 Hz |
| Maximum current | 73 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 63 dB |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
Packaging data
| Package width | 683 mm |
|---|---|
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 195 kg |
Packaging content
| Management card included | No |
|---|
Ports & interfaces
| USB port | Yes |
|---|---|
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| SmartConnect port | No |
Weight & dimensions
| Width | 500 mm |
|---|---|
| Depth | 760 mm |
| Height | 1400 mm |
| Weight | 158 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 9999 m |
| Non-operating altitude | 0 - 15000 m |
Safety regulation & standards
| Safety | IEC 62040-1-1 |
|---|
