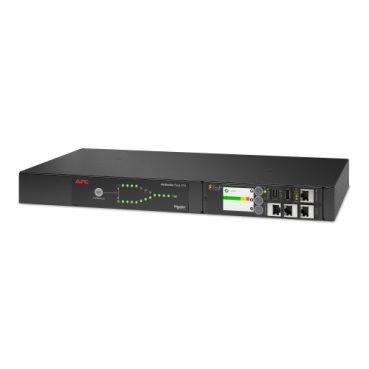

APC Netshelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2…

Our SKU
MPN
Barcode
Rating: No reviews yet

APC Rack ATS G3 230V 16A (2) IEC 309 in (1) — APC

Overview

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4422A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4422A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3840VA load capacity. It comes with 2 IEC 309 inlet and 1 IEC 309 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Key features

Input operation voltage (min): 230 V
Input operation voltage (max): 230 V
AC input frequency: 50/60 Hz
Input current: 16 A
Output operation voltage (min): 230 V
Form factor: Rackmount
Rack capacity: 1U
Product colour: Black
AC outlets quantity: 1 AC outlet(s)
AC outlet types: IEC 60309
Operating temperature (T-T): -5 - 45 °C
Operating relative humidity (H-H): 5 - 95%
Total carbon footprint (kg of CO2e): 484.38
Width: 432 mm
Depth: 236 mm
Height: 44 mm
Weight: 4.21 kg

At a glance

Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
AC input frequency	50/60 Hz
Input current	16 A
Output operation voltage (min)	230 V
Form factor	Rackmount
Rack capacity	1U
Product colour	Black

All 17 specifications

Specifications

Power

Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
AC input frequency	50/60 Hz
Input current	16 A
Output operation voltage (min)	230 V

Design

Form factor	Rackmount
Rack capacity	1U
Product colour	Black

Technical details

Total carbon footprint (kg of CO2e)	484.38

Ports & interfaces

AC outlets quantity	1 AC outlet(s)
AC outlet types	IEC 60309

Weight & dimensions

Width	432 mm
Depth	236 mm
Height	44 mm
Weight	4.21 kg

Operational conditions

Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	5 - 95%

Questions

$2,339.09inc GST
