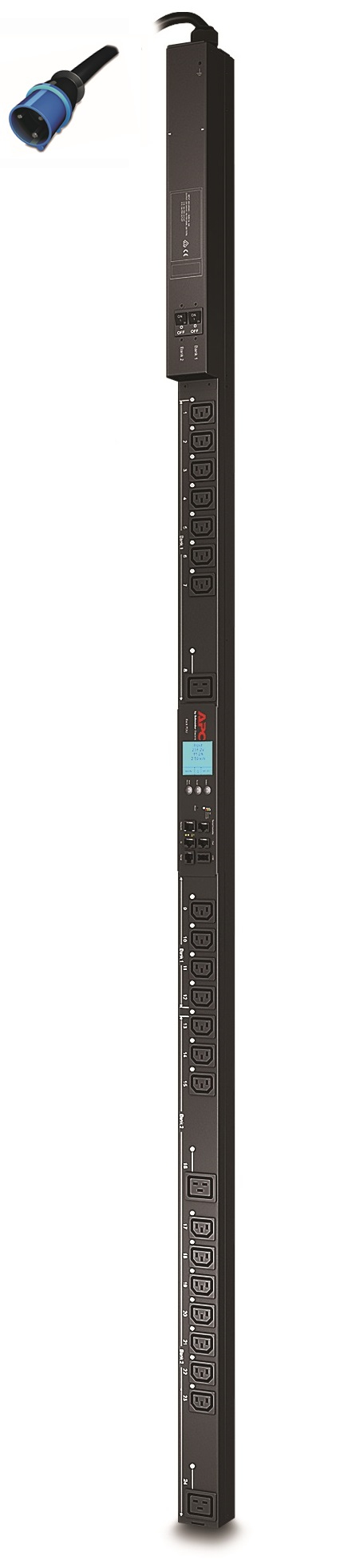

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Key features
PDU types: Metered, Metered-by-outlet, Switched
Type: Single-phase
Rack capacity: 0U
Mounting: Vertical
Product colour: Black
AC outlets quantity: 24 AC outlet(s)
Power plug: IEC309
AC outlet types: C13 coupler, C19 coupler
Cable length: 3 m
Monitoring: Current, Power, Voltage
Outlet control: Lock-out, Recycle, Turn off, Turn on
Nominal input voltage: 230 V
AC input frequency: 50 - 60 Hz
Maximum current: 32 A
Nominal output voltage: 230 V
Load capacity: 7680 VA
Maximum input current per phase: 32 A
Maximum total current draw per phase: 32 A
Power protection features: Overload
Maximum power: 7680 W
Compliance certificates: RoHS
Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Specifications
Power
Nominal input voltage
230 V
AC input frequency
50 - 60 Hz
Maximum current
32 A
Nominal output voltage
230 V
Load capacity
7680 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Power protection features
Overload
Maximum power
7680 W
Design
PDU types
Metered, Metered-by-outlet, Switched
Type
Single-phase
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Features
Cable length
3 m
Certificates
Compliance certificates
RoHS
Certification
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
