Overview

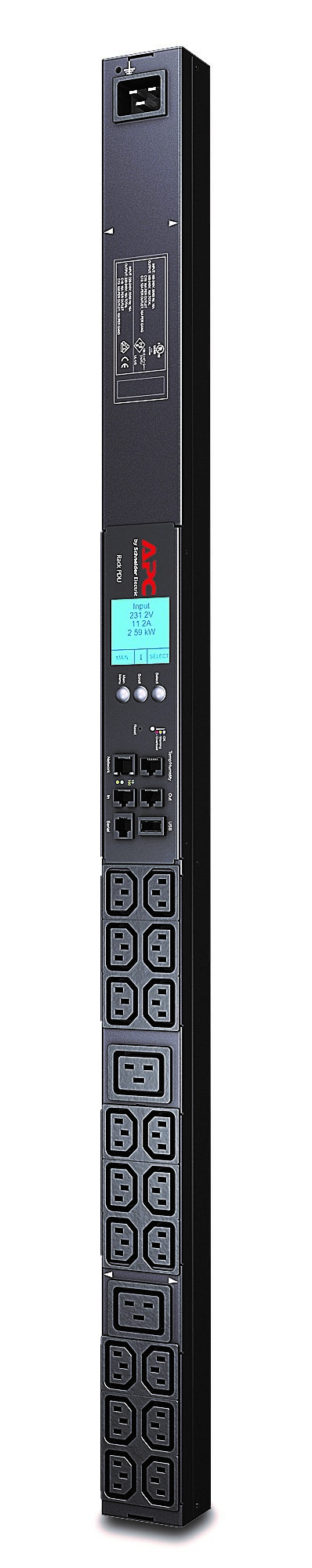

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Key features
- PDU types: Metered
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- AC outlets quantity: 20 AC outlet(s)
- AC outlet types: C13 coupler, C19 coupler
- Input connection type: IEC-320 C20
- Output connections: 18x IEC 320 C13
2x IEC 320 C19
- Monitoring: Current, Power, Voltage
- Nominal input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum total current draw per phase: 16 A
- Maximum power: 3680 W
- Certification: CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS, REACH
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 56 mm
- Depth: 44 mm
- Height: 902 mm
- Weight: 2.93 kg
