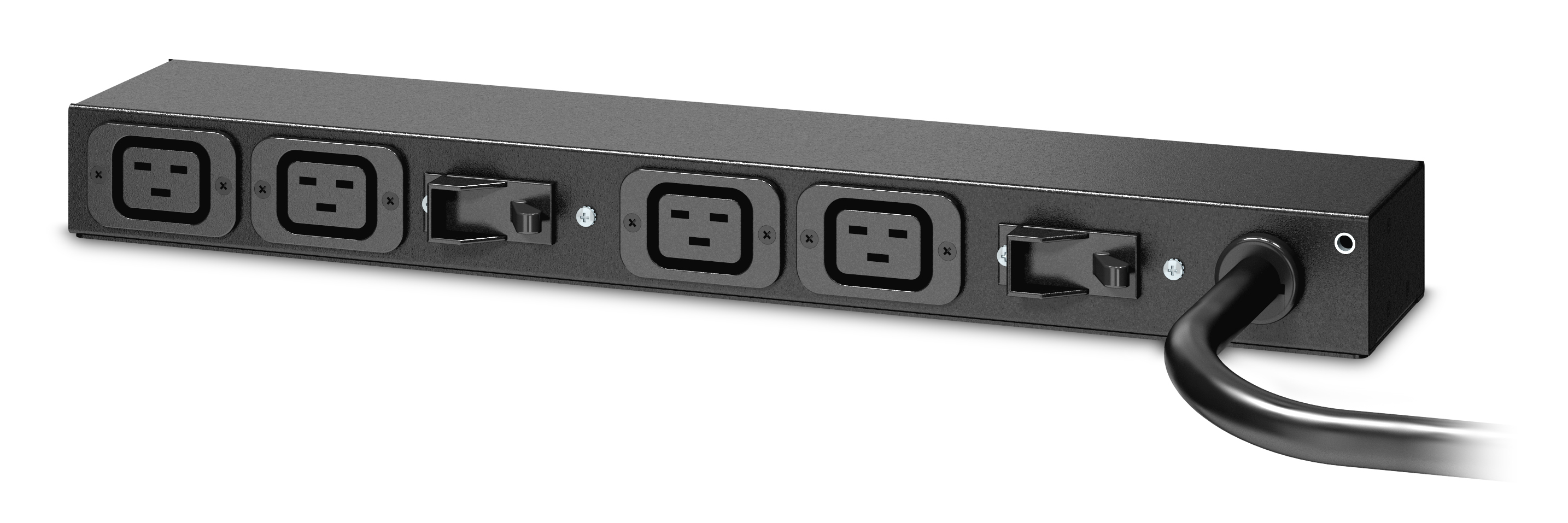

APC Rack PDU. Basic. 0U/1U. 220-240V. 32A. (
Rack PDU. Basic. 0U/1U. 220-240V. 32A. (4) C19. EMEA/ASIA
- Brand: APC
- Category: UPS Systems
- SKU: 3298831
- MPN: AP6032A
APCAPC AP6032A power distribution unit (PDU) 4 AC outlet(s) 0U/1U Black
- SKU
- CNZ-IM-038903
- MPN
- AP6032A
Overview
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Key features
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
- AC outlets quantity: 4 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: C19 coupler
- Cable length: 3.65 m
- Nominal input voltage: 200-240 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Nominal output voltage: 200-240 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum power: 7680 W
- Compliance certificates: RoHS
- Certification: VDE, CE
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -15 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Width: 4.36 mm
- Depth: 9.29 mm
Specifications
Power
| Nominal input voltage | 200-240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 32 A |
|---|
| Nominal output voltage | 200-240 V |
|---|
| Load capacity | 7680 VA |
|---|
| Maximum input current per phase | 32 A |
|---|
| Maximum power | 7680 W |
|---|
Design
| PDU types | Basic |
|---|
| Type | Single-phase |
|---|
| Rack capacity | 0U/1U |
|---|
| Mounting | Horizontal/Vertical |
|---|
| Product colour | Black |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | VDE, CE |
|---|
Ports & interfaces
| AC outlets quantity | 4 AC outlet(s) |
|---|
| Power plug | IEC 60309 |
|---|
| AC outlet types | C19 coupler |
|---|
Weight & dimensions
| Width | 4.36 mm |
|---|
| Depth | 9.29 mm |
|---|
| Height | 43.8 mm |
|---|
| Weight | 2.78 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -15 - 60 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
