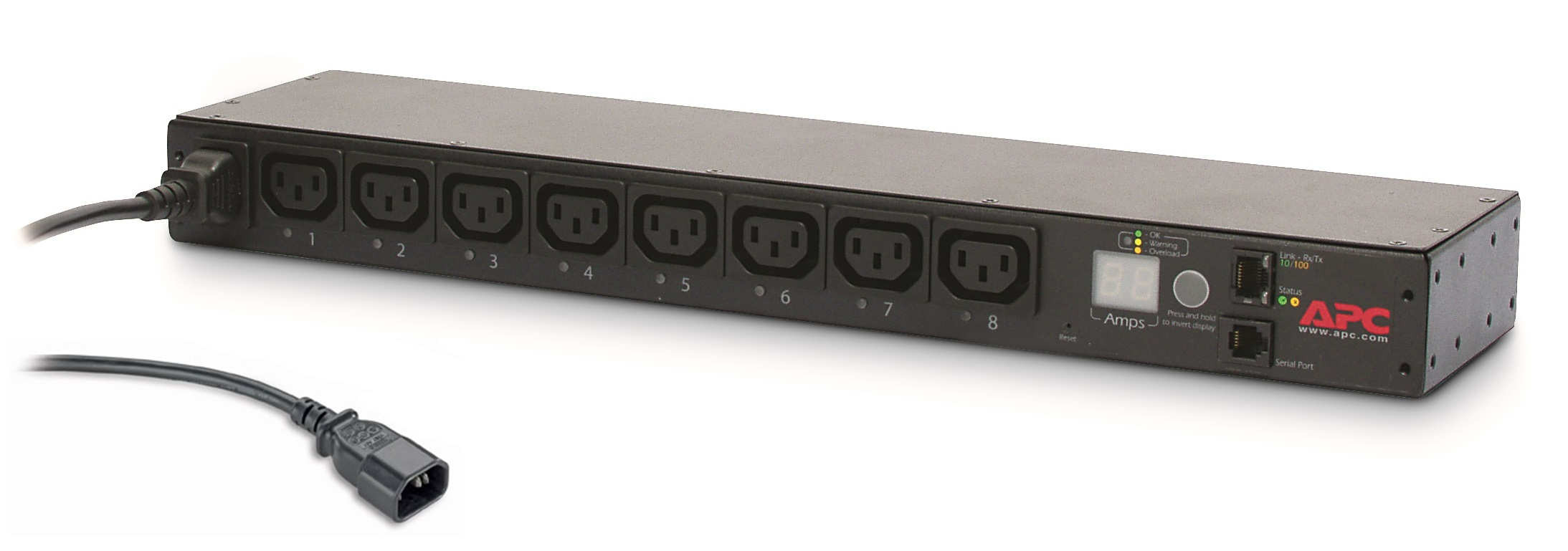

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Key features
PDU types: Metered, Switched
Rack capacity: 0U/1U
Mounting: Horizontal/Vertical
Product colour: Black
AC outlets quantity: 8 AC outlet(s)
Power plug: C14 coupler
AC outlet types: C13 coupler
Input connection type: IEC-320 C14
Cable length: 1.98 m
Monitoring: Current, Power, Voltage
Outlet control: Lock-out, Recycle, Turn off, Turn on
Nominal input voltage: 200-230 V
AC input frequency: 50 - 60 Hz
Maximum current: 10 A
Nominal output voltage: 208-230 V
Load capacity: 2300 VA
Maximum input current per phase: 10 A
Maximum total current draw per phase: 10 A
Maximum power: 2300 W
Compliance certificates: RoHS
Certification: cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Specifications
Power
Nominal input voltage
200-230 V
AC input frequency
50 - 60 Hz
Maximum current
10 A
Nominal output voltage
208-230 V
Load capacity
2300 VA
Maximum input current per phase
10 A
Maximum total current draw per phase
10 A
Maximum power
2300 W
Design
PDU types
Metered, Switched
Rack capacity
0U/1U
Mounting
Horizontal/Vertical
Product colour
Black
Features
Cable length
1.98 m
Certificates
Compliance certificates
RoHS
Certification
cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Logistics data
Total carbon footprint (kg of CO2e)
915.89
Packaging data
Package weight
3.45 kg
Package width
470 mm
Package depth
343 mm
Package height
70 mm
Packaging content
Packaging content
Installation Guide, Rack Mounting Brackets, User Manual
