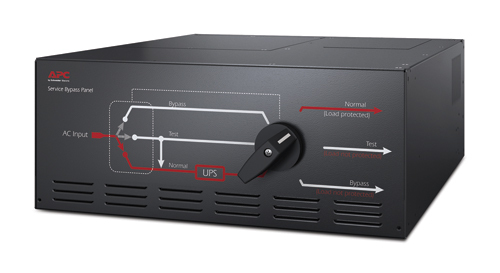

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output

SKU: CNZ-IM-038888
MPN: SBP20KP
Rating: No reviews yet

APC Service Bypass Panel 200/208/230/240 — APC

Overview

Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)

Key features

Output power capacity: 20 kVA
Input operation voltage (min): 200 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Maximum current: 125 A
AC outlet types: Hard Wire 5-wire (3P + N + E)
Form factor: Tower
Product colour: Black
Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 4500 m
Non-operating altitude: 0 - 15000 m
Compliance certificates: RoHS
Certification: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Width: 432 mm
Depth: 554 mm
Height: 178 mm
Weight: 19.3 kg
Package weight: 31.4 kg
Harmonized System (HS) code: 85078000
Operating temperature (T-T): -4 - 122 °F
Overload protection: Yes

At a glance

Form factor	Tower
Product colour	Black
Output power capacity	20 kVA
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Input frequency	50/60 Hz
Maximum current	125 A
Compliance certificates	RoHS

All 25 specifications

Specifications

Design

Form factor	Tower
Product colour	Black

Features

Output power capacity	20 kVA
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Input frequency	50/60 Hz
Maximum current	125 A

Certificates

Compliance certificates	RoHS
Certification	CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778

Logistics data

Harmonized System (HS) code	85078000

Other features

Operating temperature (T-T)	-4 - 122 °F
Overload protection	Yes
Package dimensions (WxDxH)	610 x 845 x 305 mm

Packaging data

Package weight	31.4 kg

Ports & interfaces

AC outlet types	Hard Wire 5-wire (3P + N + E)

Weight & dimensions

Width	432 mm
Depth	554 mm
Height	178 mm
Weight	19.3 kg

Operational conditions

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 4500 m
Non-operating altitude	0 - 15000 m

Questions

$5,196.84inc GST
