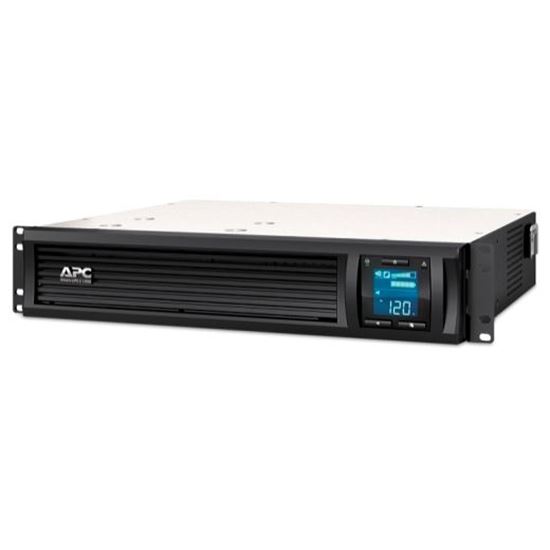

This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. Designed for small offices or small business owners to maintain a core network and business communication.
Key features
UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 600 W
Waveform: Sine
Input operation voltage (min): 170 V
Input operation voltage (max): 300 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 680 J
Output voltage Total Harmonic Distortion (THD): 5%
Noise level: 41 dB
Surge protection: Yes
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
USB port: Yes
USB 2.0 ports quantity: 1
Serial interface: Yes
Serial interface type: RS-232
Specifications
Design
Form factor
Rackmount
Rack capacity
2U
Cable length
2.44 m
Product colour
Black
Display type
LCD
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery life (max)
6 year(s)
Battery recharge time
3 h
Replacement battery cartridge
APCRBC124
Features
UPS topology
Line-Interactive
Output power capacity
1 kVA
Output power
600 W
Waveform
Sine
Input operation voltage (min)
170 V
Input operation voltage (max)
300 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Surge energy rating
680 J
Output voltage Total Harmonic Distortion (THD)
5%
Noise level
41 dB
Surge protection
Yes
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
Certificates
Compliance certificates
RoHS
Certification
CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH
