APC Smart-UPS SRT 10000VA RM 230V Custo

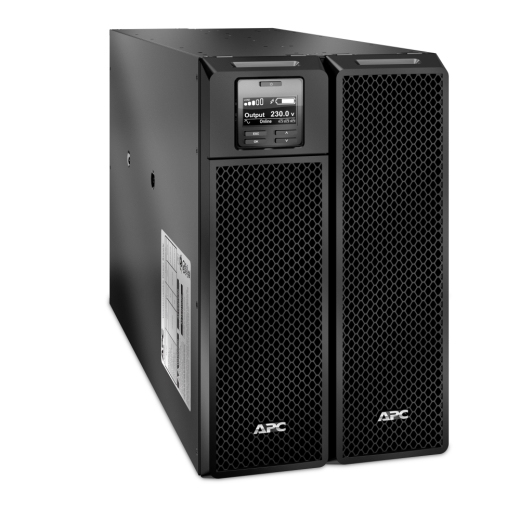

APC Smart-UPS SRT 10000VA RM 230V Custom PDU

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4343572
  • MPN: SRT10RMXLIX806
APC

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A…

SKU
CNZ-IM-000081
MPN
SRT10RMXLIX806

Overview

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire input and hard wire 3-wire/5-wire output connections and 4x IEC 32A outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Key features

  • PDU types: Basic
  • Type: Three-phase
  • Mounting: Vertical
  • Product colour: Black
  • Display: LCD
  • On/off switch: Yes
  • AC outlets quantity: 10 AC outlet(s)
  • AC outlet types: C13 coupler, C14 coupler
  • Ethernet LAN (RJ-45) ports: 2
  • USB ports quantity: 1
  • LED indicators: Power, Status
  • Nominal input voltage: 230, 400 3PH
  • AC input frequency: 40-70 Hz
  • Maximum current: 47 A
  • Nominal output voltage: 230 V
  • Output voltage: 220/230/240 V
  • Maximum input current per phase: 54 A
  • Maximum total current draw per phase: 18 A
  • Maximum power: 10000 W
  • Surge energy rating: 480 J
  • Surge protection: Yes
  • Compliance certificates: RoHS
  • Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
  • Operating temperature (T-T): 0 - 40 °C

Specifications

Power

Nominal input voltage230, 400 3PH
AC input frequency40-70 Hz
Maximum current47 A
Nominal output voltage230 V
Output voltage220/230/240 V
Maximum input current per phase54 A
Maximum total current draw per phase18 A
Maximum power10000 W
Surge energy rating480 J
Surge protectionYes

Design

PDU typesBasic
TypeThree-phase
MountingVertical
Product colourBlack
DisplayLCD
On/off switchYes

Features

LED indicatorsPower, Status

Certificates

Compliance certificatesRoHS
CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Packaging data

Package weight130 kg
Package width600 mm
Package depth1000 mm
Package height461 mm
Package typeBox

Packaging content

Cables includedUSB
ManualYes
Rack mount kitYes
Packaging contentCD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card

Ports & interfaces

AC outlets quantity10 AC outlet(s)
AC outlet typesC13 coupler, C14 coupler
Ethernet LAN (RJ-45) ports2
USB ports quantity1

Weight & dimensions

Width432 mm
Depth715 mm
Height263 mm
Weight111.8 kg

Operational conditions

Operating temperature (T-T)32 - 104 °F
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 15240 m

Questions

$16,907.29inc GST
