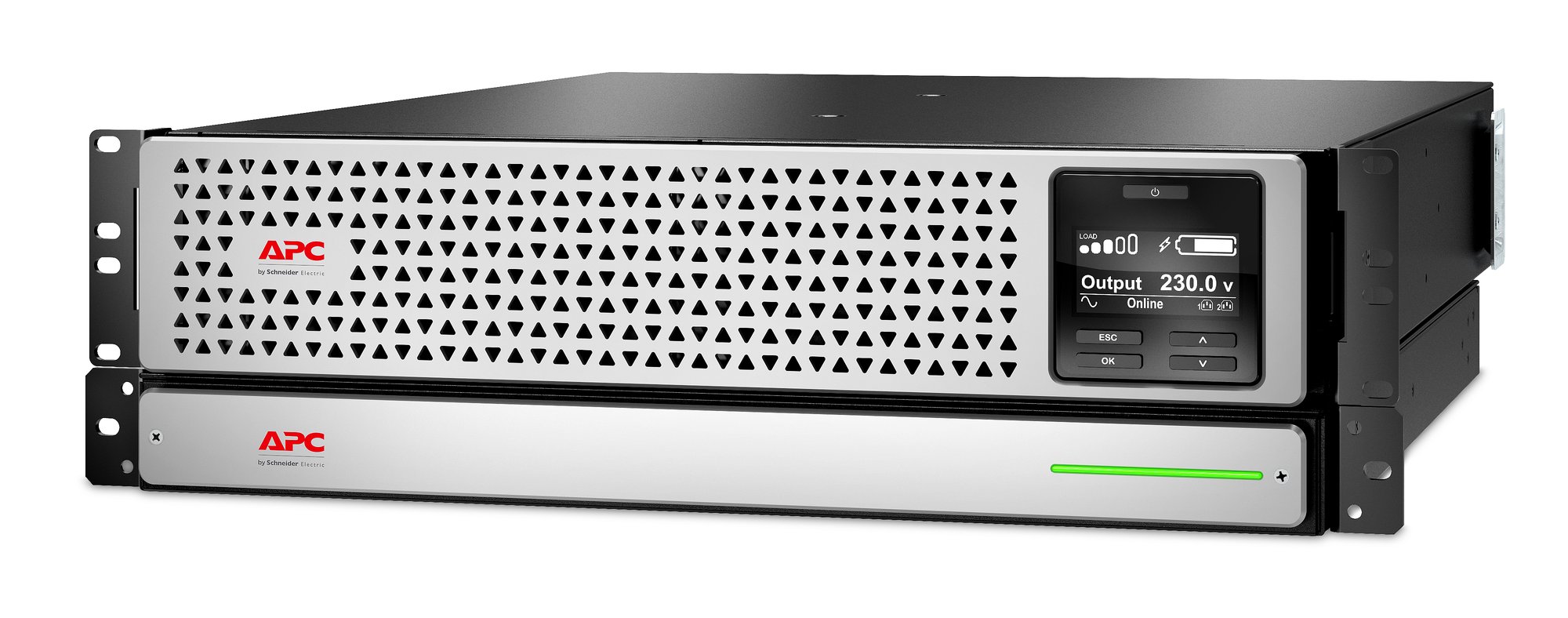

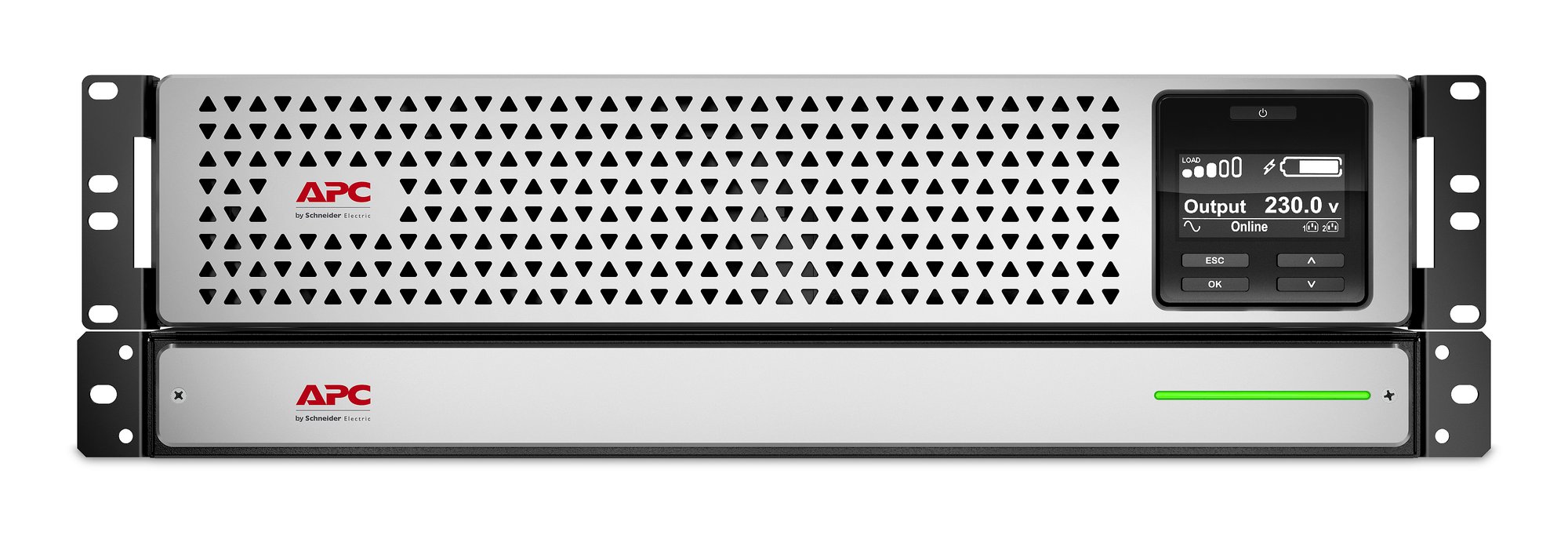

APC Smart-UPS SRT Lithium Ion 1500VA RM

APC Smart-UPS SRT Lithium Ion 1500VA RM 230V Network Card

  • Brand: APC
  • Category: UPS Systems
  • SKU: 4131545
  • MPN: SRTL1500RMXLI-NC
APC

APC Smart-UPS On-Line, 1500VA, Rackmount 3U, 230V, 8x C13 IEC…

SKU
CNZ-IM-039014
MPN
SRTL1500RMXLI-NC

Overview

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Key features

  • UPS topology: Double-conversion (Online)
  • Output power capacity: 1.5 kVA
  • Output power: 1350 W
  • Waveform: Sine
  • Input operation voltage (min): 220 V
  • Input operation voltage (max): 240 V
  • Input frequency: 40/70 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Surge energy rating: 340 J
  • Crest factor: 3:1
  • Emergency Power Off (EPO): Yes
  • Noise level: 50 dB
  • Surge protection: Yes
  • Audible alarm(s): Yes
  • Auto-restart: Yes
  • AC outlet types: C13 coupler
  • Power plug: C14 coupler
  • AC outlets quantity: 8 AC outlet(s)
  • USB port: Yes
  • Serial interface: Yes
  • Serial interface type: RJ-45
  • Serial ports quantity: 1

Specifications

Design

Form factorRackmount
Rack capacity3U
Product colourBlack, Grey
Display typeLCD
LED indicatorsStatus
International Protection (IP) codeIP20

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery life (max)10 year(s)
Battery recharge time6 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Features

UPS topologyDouble-conversion (Online)
Output power capacity1.5 kVA
Output power1350 W
WaveformSine
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating340 J
Crest factor3:1
Emergency Power Off (EPO)Yes
Noise level50 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes

Certificates

CertificationCE, EAC, RCM, VDE

Logistics data

Products per pallet6 pc(s)
Harmonized System (HS) code85078000

Other features

Output voltage230 V

Packaging data

Package width600 mm
Package depth850 mm
Package height445 mm
Package weight37.4 kg

Sustainability

Sustainability certificatesGreen Premium

Packaging content

Management card includedYes

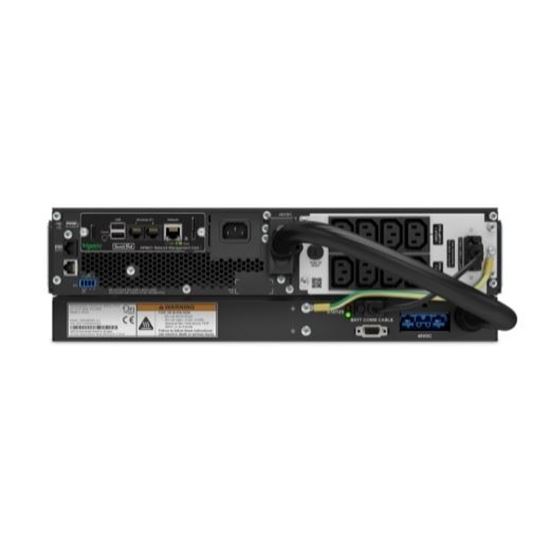

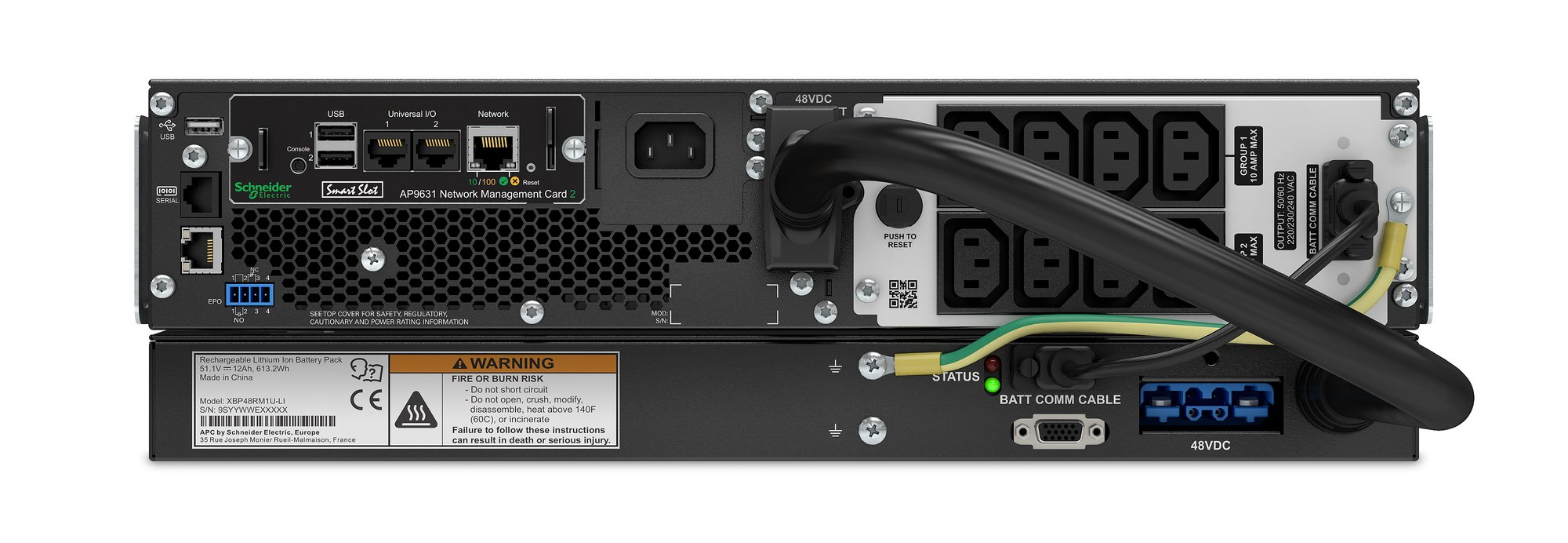

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
Cabling technology10/100Base-T
SmartSlotYes
SmartConnect portNo

Weight & dimensions

Width432 mm
Depth590 mm
Height128 mm
Weight25.7 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Questions

$8,228.24inc GST
