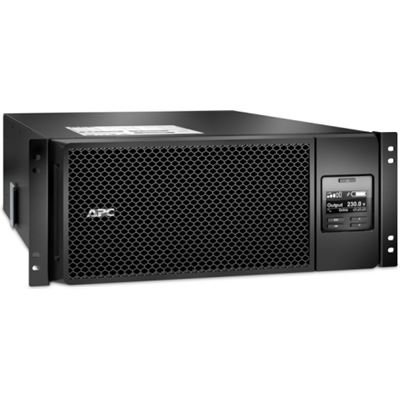

APC Smart-UPS SRT 6000VA RM 230V
APC Smart-UPS SRT 6000VA RM 230V
- Brand: APC
- Category: Power & Rack Equipment
- SKU: 5927063
- MPN: SRT6KRMXLI
APCAPC Smart-UPS SRT 6000VA RM 230V
- SKU
- CNZ-IM-051934
- MPN
- SRT6KRMXLI
Overview
APC Smart-UPS SRT 6000VA RM 230V
Specifications
Bypass
| Bypass | Internal Bypass (Automatic and Manual) |
|---|
Topology
| Topology | Double Conversion Online |
|---|
Battery Type
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|---|
Audible Alarm
| Audible Alarm | Audible and visible alarms prioritized by severity |
|---|
Control panel
| Control panel | Multi-function LCD status and control console |
|---|
Input Frequency
| Input Frequency | 40 - 70 Hz (auto sensing) |
|---|
Input Connections
| Input Connections | Hard Wire 3 wire (1PH+N+G) |
|---|
Interface Port(s)
| Interface Port(s) | RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB |
|---|
Storage Elevation
| Storage Elevation | 0-15000 meters |
|---|
Dimensions (HxWxD)
| Dimensions (HxWxD) | 174 x 432 x 720 mm |
|---|
Output Connections
| Output Connections | (1) Hard Wire 3-wire (H N + G) (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (4) IEC 320 C19 (Battery Backup) , (6) IEC 320 C13 (Battery Backup) |
|---|
Operating Elevation
| Operating Elevation | 0-3000 meters |
|---|
Replacement Battery
| Replacement Battery | APCRBC140 |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Surge energy rating
| Surge energy rating | 480 Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220 , 240 |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Operating Environment
| Operating Environment | 0 - 40 °C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240V |
|---|
Output Power Capacity
| Output Power Capacity | 6000 Watts / 6000 VA |
|---|
Typical recharge time
| Typical recharge time | 1.5 hour(s) |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Nominal Battery Voltage
| Nominal Battery Voltage | 192V |
|---|
Emergency Power Off (EPO)
| Emergency Power Off (EPO) | Yes |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 2% |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95 (non-condensing) % |
|---|
Online Thermal Dissipation
| Online Thermal Dissipation | 1300.000 BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 (non-condensing) % |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 6000 Watts / 6000 VA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
|---|
Available SmartSlot Interface Quantity
| Available SmartSlot Interface Quantity | 1 |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 160 - 275 V |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 55.000 dB |
|---|
Input voltage adjustable range for mains operation
| Input voltage adjustable range for mains operation | 100 - 275 (half load)V |
|---|
