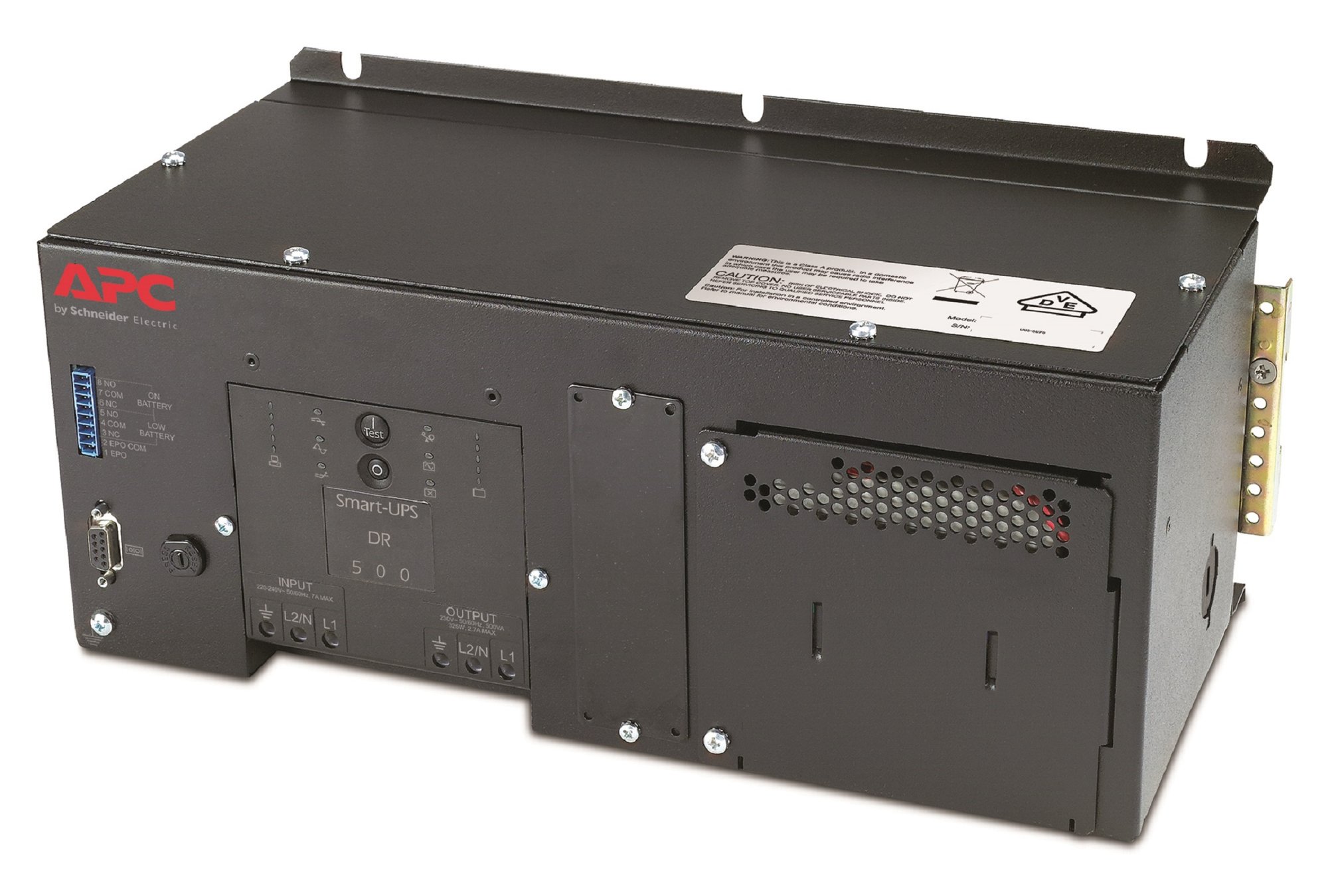

APC (SUA500PDRI-S) DIN RAIL - PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V
Power & UPS > UPS Systems
- Brand: APC
- Category: UPS Systems
- SKU: SUA500PDRI-S
- MPN: SUA500PDRI-S
APCAPC SUA500PDRI-S uninterruptible power supply (UPS) 0.5 kVA 325 W 0…
- SKU
- CNZ-DD-042384
- MPN
- SUA500PDRI-S
Overview
APC SUA500PDRI-S. Output power capacity: 0.5 kVA, Output power: 325 W, Input operation voltage (min): 151 V. Battery technology: Sealed Lead Acid (VRLA). Product colour: Black. Compliance certificates: RoHS, Certification: CE, VDE. Width: 362 mm, Depth: 171 mm, Height: 148 mm
Key features
- Output power capacity: 0.5 kVA
- Output power: 325 W
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Surge energy rating: 540 J
- Efficiency: 94%
- Output voltage Total Harmonic Distortion (THD): 5%
- Noise level: 55 dB
- Surge protection: Yes
- AC outlets quantity: 0 AC outlet(s)
- RS-232 ports: 1
- Battery technology: Sealed Lead Acid (VRLA)
- Number of batteries supported: 1
- Product colour: Black
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
- Compliance certificates: RoHS
Specifications
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Number of batteries supported | 1 |
|---|
Features
| Output power capacity | 0.5 kVA |
|---|
| Output power | 325 W |
|---|
| Input operation voltage (min) | 151 V |
|---|
| Input operation voltage (max) | 302 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 220 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Surge energy rating | 540 J |
|---|
| Efficiency | 94% |
|---|
| Output voltage Total Harmonic Distortion (THD) | 5% |
|---|
| Noise level | 55 dB |
|---|
| Surge protection | Yes |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | CE, VDE |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
Packaging data
| Package width | 297 mm |
|---|
| Package depth | 481 mm |
|---|
| Package height | 297 mm |
|---|
| Package weight | 13.3 kg |
|---|
Ports & interfaces
| AC outlets quantity | 0 AC outlet(s) |
|---|
| RS-232 ports | 1 |
|---|
Weight & dimensions
| Width | 362 mm |
|---|
| Depth | 171 mm |
|---|
| Height | 148 mm |
|---|
| Weight | 12.9 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
$1,176.44inc GST
