APC SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13, 2YR
Power & UPS > PDUs
- Brand: APC
- Category: Racks & Cabinets
- SKU: AP7920B
- MPN: AP7920B
APC
APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW…
- SKU
- CNZ-DD-010223
- MPN
- AP7920B
- Rating
- No reviews yet
−9%
Overview

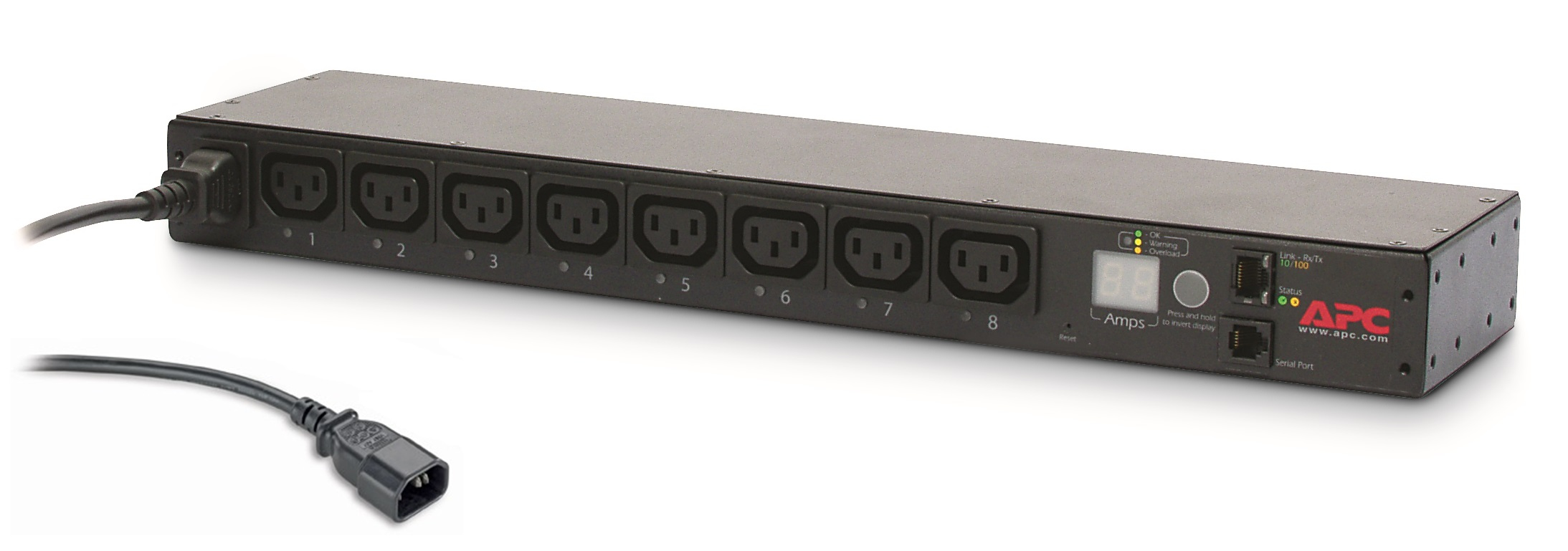

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Key features
- PDU types: Metered, Switched
- Rack capacity: 0U/1U
- Mounting: Horizontal/Vertical
- Product colour: Black
- AC outlets quantity: 8 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- Input connection type: IEC-320 C14
- Cable length: 1.98 m
- Monitoring: Current, Power, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
- Nominal input voltage: 200-230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 10 A
- Nominal output voltage: 208-230 V
- Load capacity: 2300 VA
- Maximum input current per phase: 10 A
- Maximum total current draw per phase: 10 A
- Maximum power: 2300 W
- Compliance certificates: RoHS
- Certification: cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
Specifications
Power
| Nominal input voltage | 200-230 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 208-230 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum total current draw per phase | 10 A |
| Maximum power | 2300 W |
Design
| PDU types | Metered, Switched |
|---|---|
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Features
| Cable length | 1.98 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
Logistics data
| Total carbon footprint (kg of CO2e) | 915.89 |
|---|
Packaging data
| Package weight | 3.45 kg |
|---|---|
| Package width | 470 mm |
| Package depth | 343 mm |
| Package height | 70 mm |
Packaging content
| Packaging content | Installation Guide, Rack Mounting Brackets, User Manual |
|---|
Ports & interfaces
| AC outlets quantity | 8 AC outlet(s) |
|---|---|
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C14 |
Management features
| Monitoring | Current, Power, Voltage |
|---|---|
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
Weight & dimensions
| Width | 445 mm |
|---|---|
| Depth | 108 mm |
| Height | 44 mm |
| Weight | 2.27 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 1 - 15000 m |
