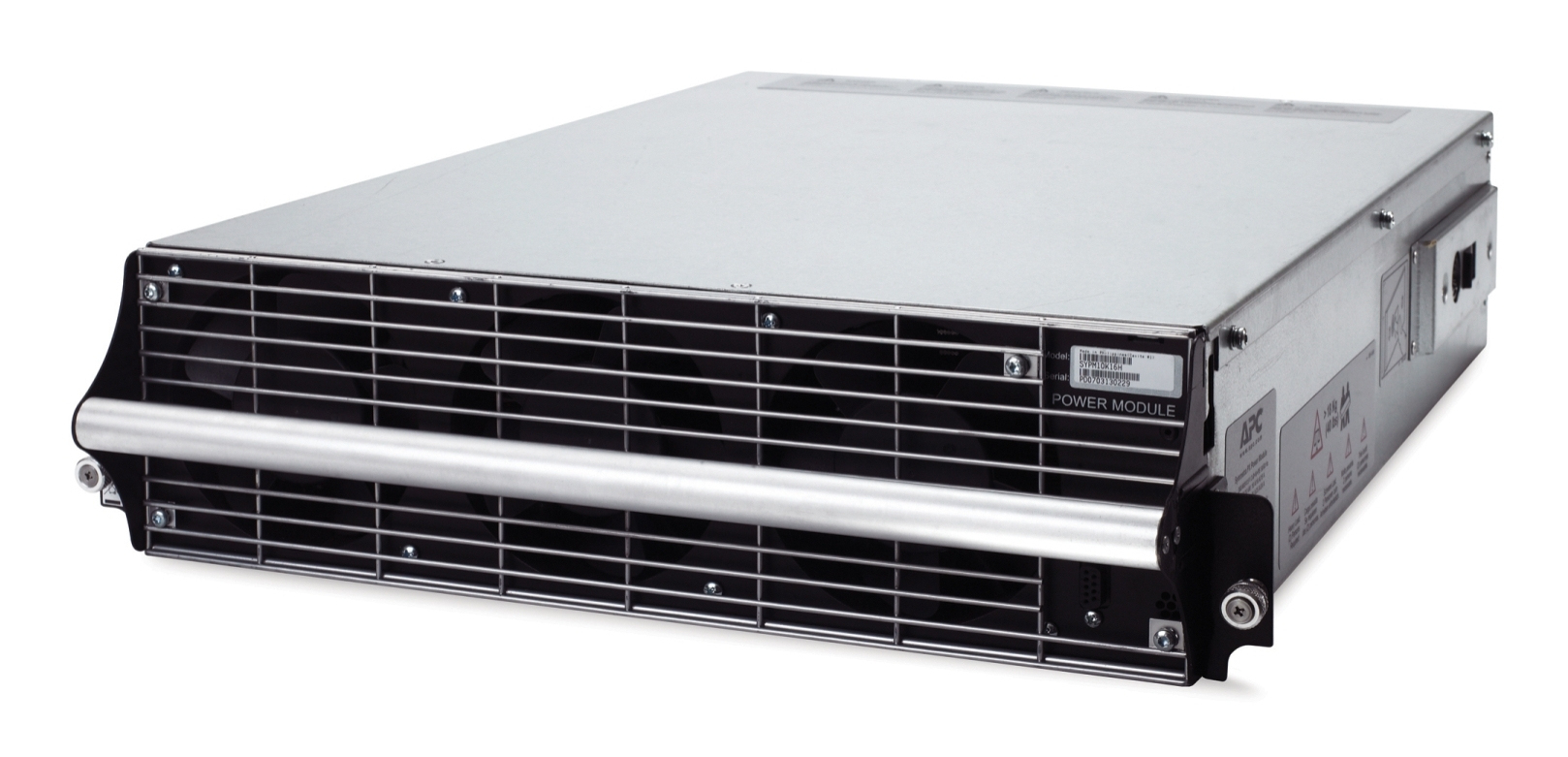

A 16 kW high efficiency power module for the Symmetra PX 160 kW & PX 48 kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10 kW of power protection if installed in a PX 80 kW, 40 KW or 20 kW all-in-one.
Key features
Product type: Power module
Product colour: Black, Grey
Noise level: 63 dB
Load capacity: 16000 VA
Capacity: 16000 W
Input voltage: 400 V
Input frequency: 40/70 Hz
Output voltage: 400 V
Number of phases: 3
Maximum total current draw per phase: 33 A
Output power capacity: 16 kVA
Certification: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 1015 m
Non-operating altitude: 0 - 4572 m
Width: 483 mm
Depth: 70 mm
Height: 132 mm
Weight: 28.5 kg
Package width: 700 mm
Package depth: 595 mm
Specifications
Power
Load capacity
16000 VA
Capacity
16000 W
Input voltage
400 V
Input frequency
40/70 Hz
Output voltage
400 V
Number of phases
3
Maximum total current draw per phase
33 A
Output power capacity
16 kVA
Features
Product type
Power module
Product colour
Black, Grey
Noise level
63 dB
Certificates
Certification
CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111
