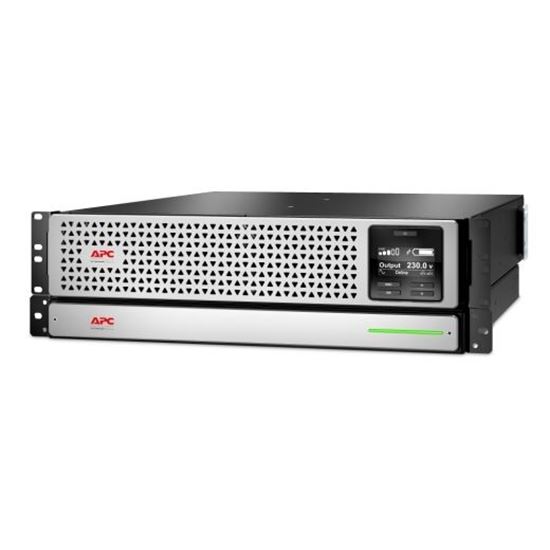

APC Smart-UPS On-Line, 3kVA, Rackmount 3U, 230V, 6x C13+2x C19 IEC…

SKU: CNZ-CD-004433
MPN: SRTL3000RMXLI
Rating: No reviews yet

APC Smart-UPS 3000VA (2700W) 3U Lithium Ion Rack Mount. 230V Input/ — APC

Overview

APC Smart-UPS 3000VA (2700W) 3U Lithium Ion Rack Mount. 230V Input/ Output. 6x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity Rack Mount Kit Included

Key features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
AC outlet types: C13 coupler, C19 coupler
Number of type F outputs: 8
Battery technology: Lithium-Ion (Li-Ion)
Form factor: Rackmount/Tower
Product colour: Grey
Sustainability certificates: Green Premium
Harmonized System (HS) code: 85078000

Specifications

RoHS

RoHS	Compliant

Spec

Spec	Output

Bypass

Bypass	Built-in bypass

Topology

Topology	Double conversion online

Approvals

Approvals	CE, EAC

Bypass (9)

Bypass (9)	Input

Net Weight

Net Weight	30.53KG

Battery type

Battery type	Li-Ion (Lithium-Ion)

Audible Alarm

Audible Alarm	Audible and visible alarms prioritized by severity

Control panel

Control panel	Multifunction LCD status and control console

Maximum Depth

Maximum Depth	639MM, 63.9CM

Maximum Width

Maximum Width	432MM, 43.2CM

Waveform type

Waveform type	Sine wave

Maximum Height

Maximum Height	85MM, 8.5CM

Shipping Depth

Shipping Depth	870MM, 87.0CM

Shipping Width

Shipping Width	600MM, 60.0CM

Input frequency

Input frequency	40~70Hz Auto-sensing

Shipping Height

Shipping Height	245MM, 24.5CM

Shipping weight

Shipping weight	41.4KG

Protection Class

Protection Class	IP20

Units per Pallet

Units per Pallet	12.0

Interface Port(s)

Interface Port(s)	RJ-45 Serial, SmartSlot, USB

Load Crest Factor

Load Crest Factor	3 : 1

Standard warranty

Standard warranty	3 years

Storage Elevation

Storage Elevation	0 - 15240meters

Extendable Run Time

Extendable Run Time	1

Operating Elevation

Operating Elevation	0 - 3048meters

Storage Temperature

Storage Temperature	-20°C - 50°C

Surge energy rating

Surge energy rating	432Joules

Other Input Voltages

Other Input Voltages	220, 240

Number of Power Cords

Number of Power Cords	1

Operating Temperature

Operating Temperature	0°C - 40°C

Other Output Voltages

Other Output Voltages	220, 240

Protection Class (48)

Protection Class (48)	Conformance

Typical recharge time

Typical recharge time	4hour(s)

Units per Pallet (38)

Units per Pallet (38)	Environmental

Standard warranty (51)

Standard warranty (51)	Sustainable Oﬀer Status

Surge energy rating (28)

Surge energy rating (28)	Physical

Other Input Voltages (14)

Other Input Voltages (14)	Batteries & Runtime

Output Voltage Distortion

Output Voltage Distortion	Less than 2 %

Storage Relative Humidity

Storage Relative Humidity	0 - 95%

Emergency Power Oﬀ (EPO)

Emergency Power Oﬀ (EPO)	Yes

Online thermal dissipation

Online thermal dissipation	317.0BTU/hr

Operating Relative Humidity

Operating Relative Humidity	0 - 95%

Battery Charge Power (Watts)

Battery Charge Power (Watts)	158 Watts

Expected Battery Life (years)

Expected Battery Life (years)	5 - 10

Battery Volt-Amp-Hour Capacity

Battery Volt-Amp-Hour Capacity	605

Emergency Power Oﬀ (EPO) (26)

Emergency Power Oﬀ (EPO) (26)	Surge Protection and Filtering

Max Conﬁgurable Power (Watts)

Max Conﬁgurable Power (Watts)	2.7kWatts / 3.0kVA

Output Frequency (sync to mains)

Output Frequency (sync to mains)	50/60Hz +/- 3Hz Sync to mains

Battery Volt-Amp-Hour Capacity (21)

Battery Volt-Amp-Hour Capacity (21)	Communications & Management

Input voltage range for main operations

Input voltage range for main operations	160 - 275V

Audible noise at 1 meter from surface of unit

Audible noise at 1 meter from surface of unit	50.0dBA

Questions

$11,290.69inc GST
