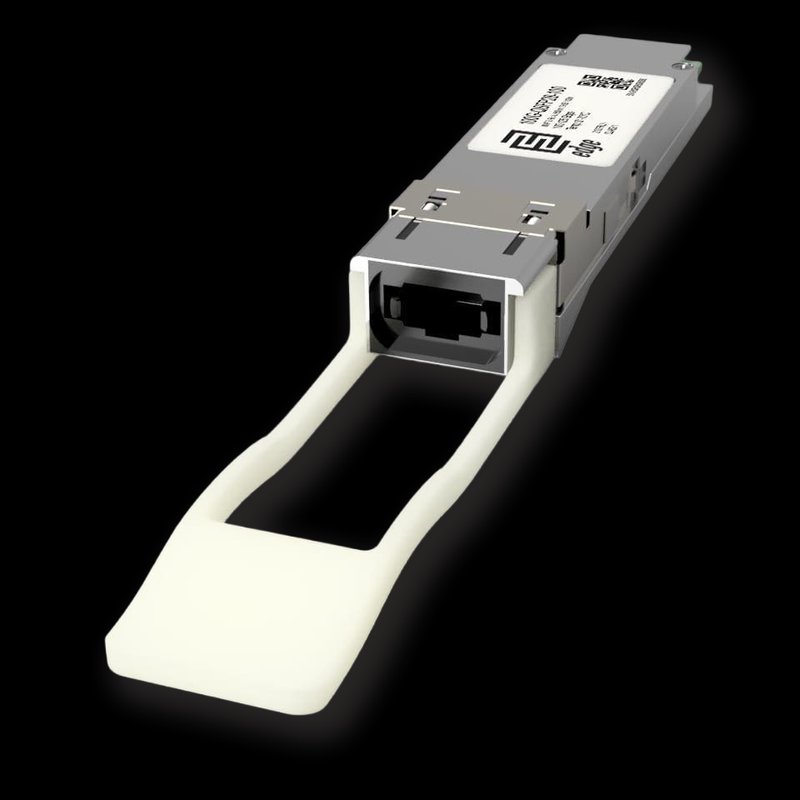

Aruba 100G QSFP28 MPO SR4 MMF XCVR HPE

HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver

  • Brand: ARUBA
  • Category: Switches
  • SKU: 5706748
  • MPN: R9F75A
ARUBA

Aruba 100G QSFP28 MPO SR4 MMF XCVR HPE

Our SKU
MPN
−23%
Aruba 100G QSFP28 MPO SR4 MMF XCVR HPE — ARUBA

Overview

HPE Aruba Networking 100G QSFP28 MPO SR4 MMF Transceiver

Specifications

Power

Power+3.3V single power supply

DDM/DOM

DDM/DOMSupported

Connector

ConnectorMTP/MPO-12 (UPC)

Compliance

ComplianceCE, RoHS, Class 1 FDA and IEC60825-1 Laser Safety Compliant, IEEE 802.3bm, 100GBASE-SR4, QSFP28 MSA, SFF-8636 (Management Interface for 4-lane modules), SFF-8665

Media Type

Media Type4 Lanes of Multi-Mode Fiber (MMF)

Modulation

ModulationNRZ (Non-Return to Zero)

Fiber Count

Fiber Count8 Fibers

Form Factor

Form FactorQSFP28

RX Wavelength

RX Wavelength4-channel 850 nm

Receiver Type

Receiver TypePIN photodiode

TX Wavelength

TX Wavelength850 nm

Maximum Distance

Maximum Distance100 m

Transmitter Type

Transmitter TypeVSCEL Laser

RX Wave Bandwidth

RX Wave Bandwidth20 nm (840-860 nm)

Receiver Overload

Receiver Overload3.4 dBm

Relative Humidity

Relative Humidity5 to 85%

Temperature Range

Temperature RangeStandard 0°-70°C

Tx Wave Bandwidth

Tx Wave Bandwidth20 nm (840-860 nm)

Average Link Budget

Average Link Budget1.9 dB

Storage Temperature

Storage Temperature-40° to 85°C

Supported Data Rate

Supported Data Rate103.125 Gbps

Extinction Ratio (Min)

Extinction Ratio (Min)3 dB

Power Consumption (Max)

Power Consumption (Max)3.5 W

Forward Error Correction (FEC)

Forward Error Correction (FEC)No

Supported Ethernet Applications

Supported Ethernet Applications100G Ethernet (103.125 Gbps)

Average Launch Power (Max) Each Lane

Average Launch Power (Max) Each Lane7.5 dBm

Average Launch Power (Min) Each Lane

Average Launch Power (Min) Each Lane3 dBm

Average Receiver Sensitivity (Max) Each Lane

Average Receiver Sensitivity (Max) Each Lane2.4 dBm

Average Receiver Sensitivity (Min) Each Lane

Average Receiver Sensitivity (Min) Each Lane-10.3 dBm

Questions

$3,722.54inc GST
