ARUBA HP X240 40G QSFP + QSFP + 5

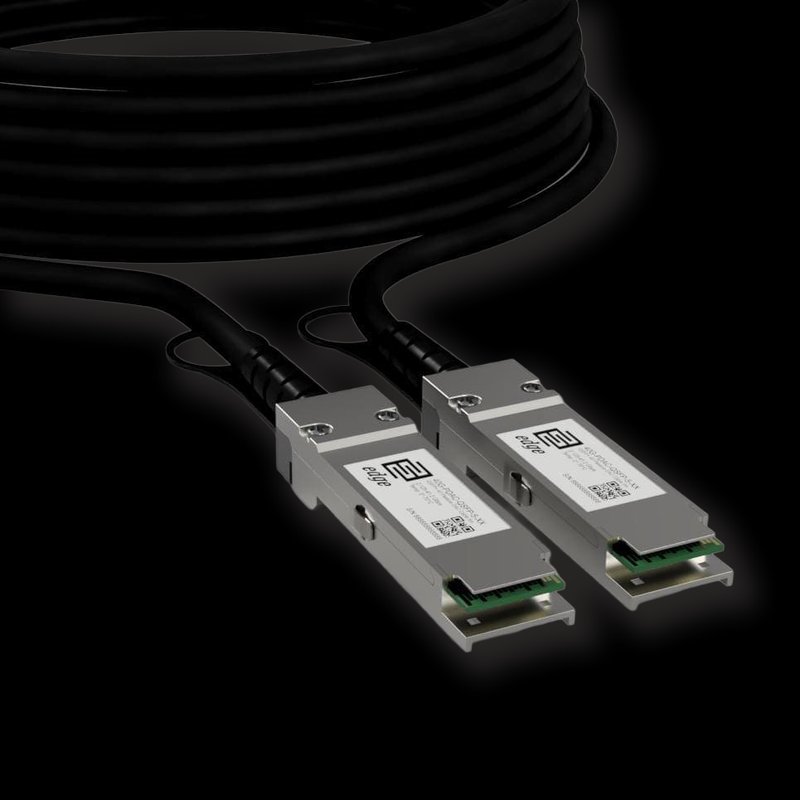

HP X240 40G QSFP+ QSFP+ 5M DAC CABLE
- Brand: ARUBA
- Category: Network Cables
- SKU: 2416880
- MPN: JG328A
ARUBAARUBA HP X240 40G QSFP + QSFP + 5
Overview
HP X240 40G QSFP+ QSFP+ 5M DAC CABLE
Specifications
Cable Type
| Cable Type | Passive Direct Attach Cable (PDAC) |
|---|
Compliance
| Compliance | CE, RoHS, QSFP+ MSA, SFF-8436, IEEE 802.3ba, QDR InfiniBand |
|---|
Media Type
| Media Type | Twinax Copper Cable |
|---|
Connector Type
| Connector Type | QSFP+ to QSFP+ |
|---|
AWG (Wire Gauge)
| AWG (Wire Gauge) | AWG30 (0.5-4m) | AWG26 (5m) |
|---|
Temperature Range
| Temperature Range | Standard 0°-70°C |
|---|
Cable Configuration
| Cable Configuration | Point-to-Point |
|---|
Supported Data Rate
| Supported Data Rate | 2.125 Gbps - 41.2 Gbps |
|---|
Supported Ethernet Applications
| Supported Ethernet Applications | 10G Ethernet (10.31Gbps), 40G Ethernet (41.25Gbps) |
|---|
Supported InfiniBand Applications
| Supported InfiniBand Applications | InfiniBand SDR (10 Gbps), InfiniBand DDR (20 Gbps), InfiniBand QDR (40 Gbps) |
|---|
Supported Fiber Channel Applications
| Supported Fiber Channel Applications | 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps), 10G Fiber Channel (10.52 Gbps) |
|---|
$1,360.44inc GST
