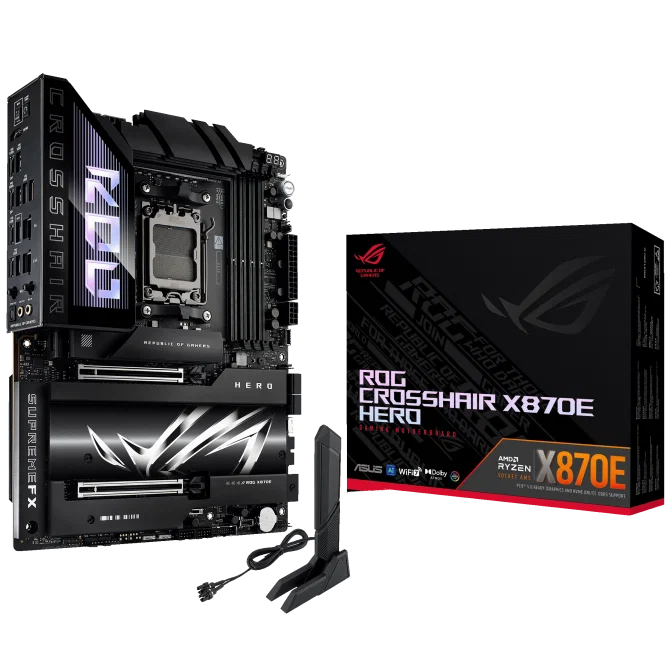

ASUS Rog Crosshair X870E Hero AM5 AMD Motherboard

Name: ASUS Rog Crosshair X870E Hero AM5 AMD Motherboard
Brand: Asus
SKU: 90MB1IE0-M0UAY0
Price: 1603.09 NZD
Availability: InStock

−14%

Overview

The supplier has not provided a description for this product yet.

At a glance

USB	2 x USB 20Gbps connectors (support USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous	3 x Addressable Gen2 headers, 1 x Alteration PCIe mode switch, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x ReTry button, 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, 1 x LN2 Mode jumper
Power Related	1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 1 x 8-pin PCIe Power connector
Audio Features	SupremeFX Shielding Technology, ESS ES9219 QUAD DAC, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors
Supports up to	8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors,
Storage Related	5 x M.2 slots (Key M), 1 x SlimSAS connector, 4 x SATA 6Gb/s ports
AMD X870E Chipset	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Fan and Cooling Related	1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers: 1 x W_PUMP+ header

USB	2 x USB 20Gbps connectors (support USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous	3 x Addressable Gen2 headers, 1 x Alteration PCIe mode switch, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x ReTry button, 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, 1 x LN2 Mode jumper

Power Related	1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 1 x 8-pin PCIe Power connector

Audio Features	SupremeFX Shielding Technology, ESS ES9219 QUAD DAC, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors

Supports up to	8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors,

Storage Related	5 x M.2 slots (Key M), 1 x SlimSAS connector, 4 x SATA 6Gb/s ports

AMD X870E Chipset	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Fan and Cooling Related	1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers: 1 x W_PUMP+ header

Rear USB (Total 10 ports)	2 x USB4 (40Gbps) ports (2 x USB Type-C), 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)

Front USB (Total 10 ports)	1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+), 1 x USB 20Gbps connector (supports USB Type-C), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Ryzen 7000 Series Processors	RAID 0/1/10

Ryzen 8000 Series Processors	RAID 0/1

Ryzen 9000 Series Processors	RAID 0/1/5/10

USB Type-C power delivery output	max. 5V/3A

AMD Ryzen 8000 Series Desktop Processors	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (Not supports), M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)

AMD Ryzen 8500 & 8300 Series Desktop Processors	2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)

AMD Ryzen 9000 & 7000 Series Desktop Processors	2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes)

AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors	2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)

$1,603.09inc GST
