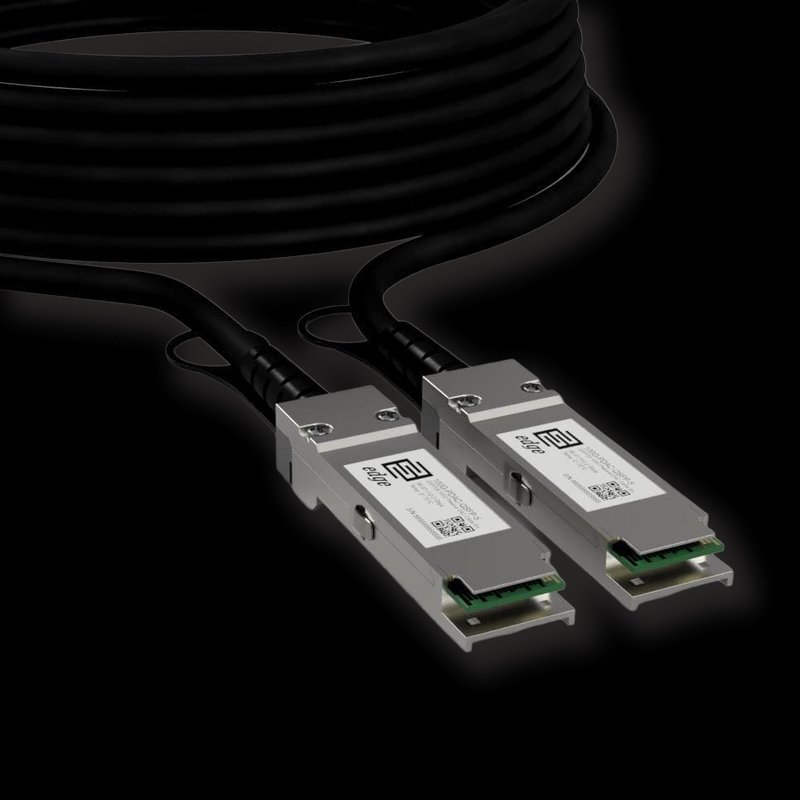

AT-QSFP28-1CU 100G- DAC- PASSIVE- 1M- FOR AT-XEM2-1CQ or x950 QSFP28 fixed port
- Brand: Allied Telesis
- Category: Network Accessories
- SKU: 394065
- MPN: AT-QSFP28-1CU
Allied Telesis
Allied Telesis AT-QSFP28-1CU 100G- DAC- PASSIVE- 1M- FOR AT-XEM2-1CQ or x950 QSFP28 fixed port
- Our SKU
- MPN
- Rating
- No reviews yet
Overview
AT-QSFP28-1CU Allied Telesis Compatible 100G QSFP28 PDAC, 1M over MMF. Explore our portfolio of Allied Telesis compatibles - covering price, datasheet.
Specifications
MTBF
| MTBF | 1000000 hours |
|---|
DDM/DOM
| DDM/DOM | Supported |
|---|
Cable Type
| Cable Type | Passive Direct Attach Cable (PDAC) |
|---|
Compliance
| Compliance | CE, RoHS, QSFP28 MSA, SFF-8436, SFF-8665, IEEE 802.3ba, QDR InfiniBand |
|---|
Media Type
| Media Type | Twinax Copper Cable |
|---|
Connector Type
| Connector Type | QSFP28 to QSFP28 |
|---|
AWG (Wire Gauge)
| AWG (Wire Gauge) | AWG30 (0.5-1.5m) | AWG28 (2-3m) | AWG26 (4-5m) |
|---|
Maximum Distance
| Maximum Distance | 1 meter |
|---|
Temperature Range
| Temperature Range | Standard 0°-70°C |
|---|
Cable Configuration
| Cable Configuration | Point-to-Point |
|---|
Supported Data Rate
| Supported Data Rate | 44.8 Gbps - 112.2 Gbps |
|---|
Supported Ethernet Applications
| Supported Ethernet Applications | 100G Ethernet (103.125 Gbps) |
|---|
Supported InfiniBand Applications
| Supported InfiniBand Applications | InfiniBand EDR (100 Gbps) |
|---|
Supported Fiber Channel Applications
| Supported Fiber Channel Applications | 4x 32G Fiber Channel (112.2Gbps) |
|---|
Questions
$813.04inc GST
