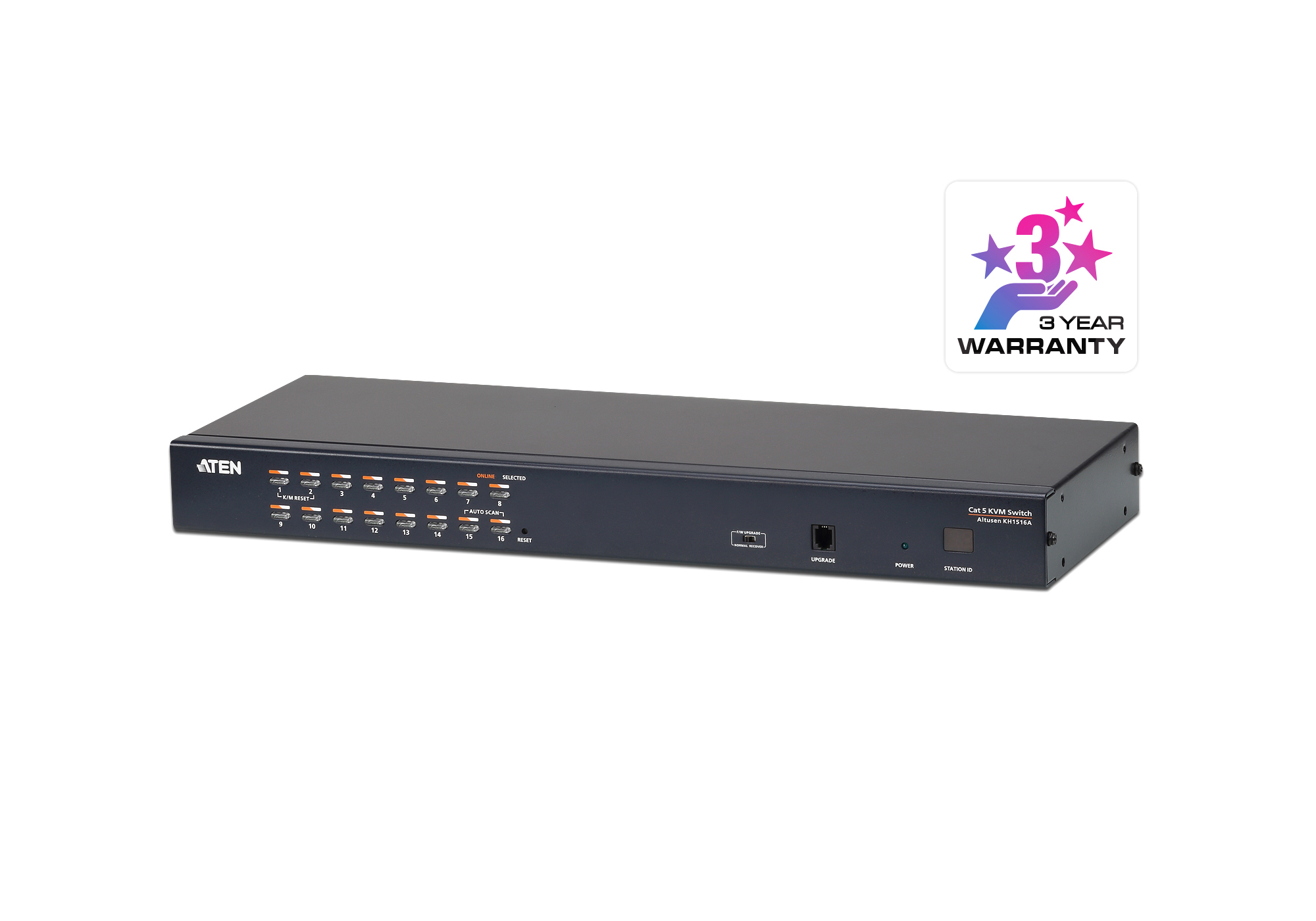

ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 16 PORT WITH DAISY-CHAIN PORT Networking > Network Accessories
Brand: ATEN Category: Networking SKU: KH1516A-AX-U MPN: KH1516A-AX-U Home Networking ATEN ATEN ATEN 16-Port Cat 5e/6 KVM Switch Price inc GST $1,491.54
$1,296.99 ex GST · NZD
Saving $133.75 was $1,625.29
Order in from supplier · ETA on request Dispatches as soon as supplier stock lands
Sign in for trade pricing Tracked courier, NZ-wide. Rates calculated at checkout. Online only, no pick-up.GST tax invoice emailed the moment your order is paid.Genuine NZ warranty . Authorised reseller, sourced through official NZ channels, claims handled by us.Your Consumer Guarantees Act rights apply on top.
Overview Specifications Questions Overview The KH1516A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 16 computers. By daisy chaining up to 31 additional switches, as many as 512 computers can be controlled from the original KVM console.
Key features Number of computers controlled: 16 Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA Console ports: PS/2, USB A, VGA (D-Sub) Console USB ports quantity: 2 USB connector type: USB Type-A PS/2 ports quantity: 2 Ethernet LAN: Yes Ethernet LAN (RJ-45) ports: 16 HD type: WUXGA Maximum resolution: 1920 x 1200 pixels Video bandwidth: 60 Hz Scan interval: 1,255 s Product colour: Black Housing material: Metal LED indicators: Yes Push button: Yes Hot keys: Yes Built-in display: No Power source: AC Input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 1 A At a glance Power source AC Input voltage 100 - 240 V AC input frequency 50 - 60 Hz Input current 1 A Power consumption (typical) 5.3 W Product colour Black Housing material Metal LED indicators Yes
All 46 specifications Specifications Power Power source AC Input voltage 100 - 240 V AC input frequency 50 - 60 Hz Input current 1 A Power consumption (typical) 5.3 W
Design Product colour Black Housing material Metal LED indicators Yes Push button Yes Hot keys Yes
Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 16
Performance HD type WUXGA Maximum resolution 1920 x 1200 pixels Video bandwidth 60 Hz Scan interval 1,255 s
Logistics data Master (outer) case net weight 9.36 kg Harmonized System (HS) code 85176200 Master (outer) case width 420 mm Master (outer) case length 565 mm Master (outer) case height 258 mm Master (outer) case gross weight 11.4 kg Products per master (outer) case 3 pc(s)
Packaging data Package width 131 mm Package depth 540 mm Package height 233 mm Package weight 3.56 kg
Packaging content Quick installation guide Yes Manual Yes
Ports & interfaces Number of computers controlled 16 Keyboard port type USB, PS/2 Mouse port type USB, PS/2 Video port type VGA Console ports PS/2, USB A, VGA (D-Sub) Console USB ports quantity 2 USB connector type USB Type-A PS/2 ports quantity 2
Weight & dimensions Width 437.2 mm Depth 163.6 mm Height 44 mm Weight 3.12 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
