ATEN 10M TRUE 4K HDMI 2.0 ACTIVE OPTICAL CABLE
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE781010-AT
- MPN: VE781010-AT
ATEN

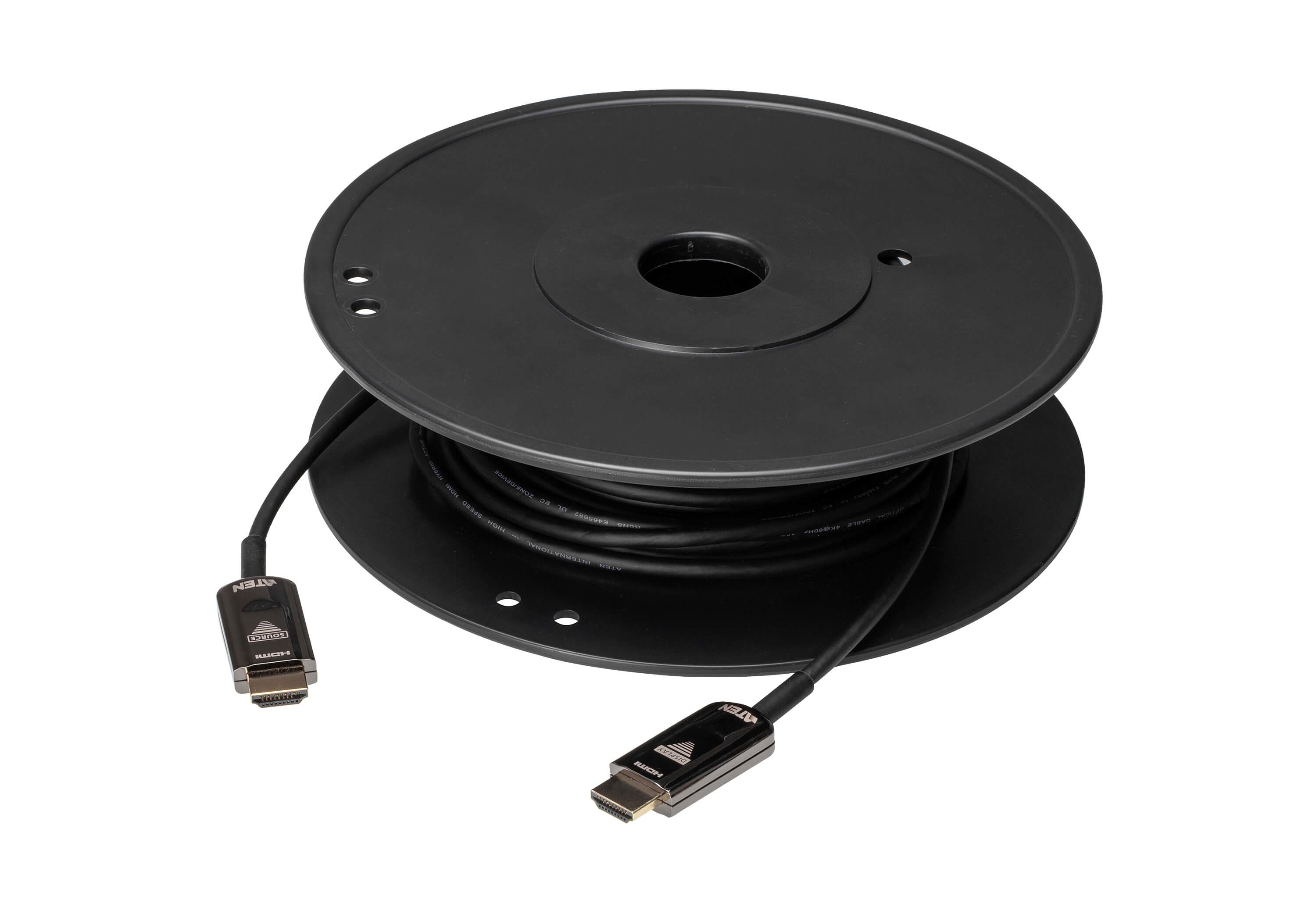

ATEN 10M True 4K HDMI 2.0 Active Optical Cable (True 4K@10m)
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−11%
Overview
ATEN VE781010 True 4K HDMI 2.0 Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 10m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI 2.0 specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781010 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
1x VE781010 10M True 4K HDMI 2.0 Active Optical Cable
1x Installation Notice
1x VE781010 10M True 4K HDMI 2.0 Active Optical Cable
1x Installation Notice
Key features
- Cable length: 10 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- HDMI version: 2.0
- 3D: Yes
- Supported graphics resolutions: 3840 x 2160
- Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
- Audio Return Channel (ARC): Yes
- HDCP: Yes
- HDCP version: 2.2
- Data transfer rate: 18 Gbit/s
- Bandwidth: 600 MHz
- Maximum refresh rate: 60 Hz
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 85%
- Compliance certificates: RoHS
Specifications
Features
| Cable length | 10 m |
|---|---|
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 2.0 |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Data transfer rate | 18 Gbit/s |
| Bandwidth | 600 MHz |
| Maximum refresh rate | 60 Hz |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE / FCC/ REACH / UL VW-1/ EMC Class-A / Class-B |
Logistics data
| Master (outer) case net weight | 3.45 kg |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 263 mm |
| Master (outer) case gross weight | 3.85 kg |
| Products per master (outer) case | 5 pc(s) |
Packaging data
| Package width | 225 mm |
|---|---|
| Package depth | 235 mm |
| Package height | 74 mm |
| Package weight | 690 g |
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Cable diameter | 4.5 mm |
|---|---|
| Weight | 690 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Questions
$215.04inc GST
