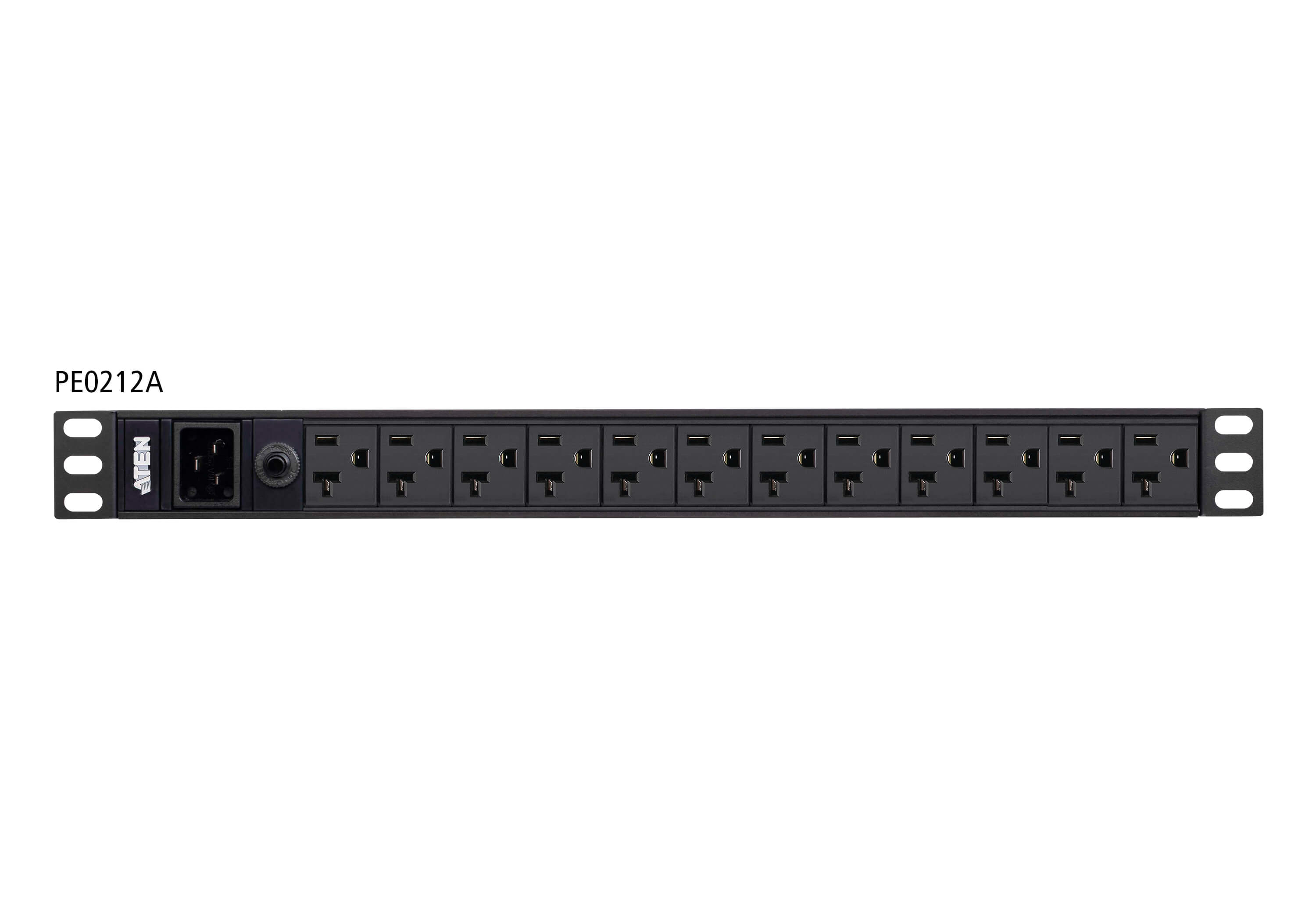

ATEN 12 PORT 1U BASIC PDU SUPPORTS UP TO 15A WITH 12 IEC C13 OUTPUTS Networking > Network Accessories
Brand: ATEN Category: Networking SKU: PE0212G-AT-G MPN: PE0212G-AT-G Home Networking ATEN ATEN ATEN 1U 16A 12Port Basic PDU Overview Specifications Questions Overview The PE0212 series Basic PDU contains 12 AC outlets and is available in IEC or NEMA socket configurations. The PE0212 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a more effi cient use of space in the server room, while providing 12 AC outlets.
Key features PDU types: Basic Type: Single-phase Rack capacity: 1U Housing material: Aluminium Product colour: Black AC outlets quantity: 12 AC outlet(s) Power plug: C20 coupler AC outlet types: C13 coupler Nominal input voltage: 100 - 240 V AC input frequency: 50 / 60 Hz Maximum current: 16 A Load capacity: 3840 VA Power protection features: Over current Compliance certificates: RoHS Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -20 - 60 °C Operating altitude: 0 - 3000 m Width: 488 mm Depth: 44 mm Height: 45 mm Weight: 1.3 kg Package weight: 1.49 kg Package width: 112 mm Package depth: 697 mm At a glance Nominal input voltage 100 - 240 V AC input frequency 50 / 60 Hz Maximum current 16 A Load capacity 3840 VA Power protection features Over current PDU types Basic Type Single-phase Rack capacity 1U
All 31 specifications Specifications Power Nominal input voltage 100 - 240 V AC input frequency 50 / 60 Hz Maximum current 16 A Load capacity 3840 VA Power protection features Over current
Design PDU types Basic Type Single-phase Rack capacity 1U Housing material Aluminium Product colour Black
Certificates Compliance certificates RoHS
Logistics data Master (outer) case net weight 13 kg Master (outer) case width 595 mm Master (outer) case length 710 mm Master (outer) case height 188 mm Master (outer) case gross weight 14.9 kg Products per master (outer) case 10 pc(s)
Packaging data Package weight 1.49 kg Package width 112 mm Package depth 697 mm Package height 82 mm
Ports & interfaces AC outlets quantity 12 AC outlet(s) Power plug C20 coupler AC outlet types C13 coupler
Weight & dimensions Width 488 mm Depth 44 mm Height 45 mm Weight 1.3 kg
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating altitude 0 - 3000 m
$147.19 inc GST
