ATEN 16 PORT 0U 16A "DUMB" PDU, 16XC13 OUTLETS
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: PE1216G-AX-G
- MPN: PE1216G-AX-G
ATEN

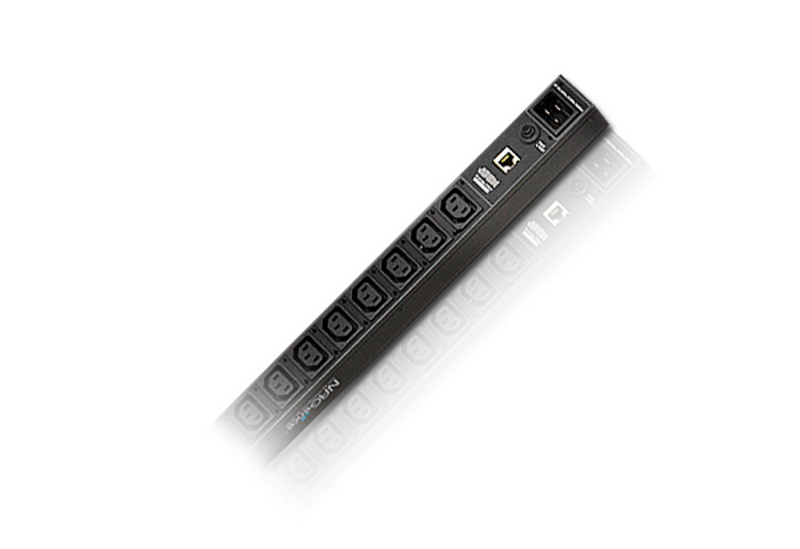

ATEN 16-Port 0U Power Distribution Unit (PDU) (16 x C13) (IP-ready)
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
-PE1216A: 100~120V; North America, Mexico, Japan, Taiwan
-PE1216B: 200~240V; North America, Mexico, Japan, Taiwan
-PE1216G: International
The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
1x PE1216 Energy PDU
1x Power Cord
(310 cm- Seperate cable with power connectors C19 and C20)
1x Mounting Kit
1x User Instructions
-PE1216B: 200~240V; North America, Mexico, Japan, Taiwan
-PE1216G: International
The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
1x PE1216 Energy PDU
1x Power Cord
(310 cm- Seperate cable with power connectors C19 and C20)
1x Mounting Kit
1x User Instructions
Key features
- PDU types: Metered
- Housing material: Metal
- Product colour: Black
- AC outlets quantity: 16 AC outlet(s)
- Power plug: C20 coupler
- AC outlet types: C13 coupler
- Ethernet LAN (RJ-45) ports: 1
- Cable length: 3 m
- Nominal input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Nominal output voltage: 100 - 240 V
- Certification: CE, C-Tick, TUV-CB, GOST
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 44 mm
- Depth: 730 mm
- Height: 44 mm
- Weight: 1.88 kg
- Cables included: AC
- Manual: Yes
- Package weight: 2.18 kg
Specifications
Power
| Nominal input voltage | 100-240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 100 - 240 V |
Design
| PDU types | Metered |
|---|---|
| Housing material | Metal |
| Product colour | Black |
Features
| Cable length | 3 m |
|---|
Certificates
| Certification | CE, C-Tick, TUV-CB, GOST |
|---|
Logistics data
| Master (outer) case net weight | 3.76 kg |
|---|---|
| Master (outer) case width | 203 mm |
| Master (outer) case length | 806 mm |
| Master (outer) case height | 127 mm |
| Master (outer) case gross weight | 4.85 kg |
| Products per master (outer) case | 2 pc(s) |
Packaging data
| Package weight | 2.18 kg |
|---|---|
| Package width | 90 mm |
| Package depth | 790 mm |
| Package height | 109 mm |
Packaging content
| Cables included | AC |
|---|---|
| Manual | Yes |
Ports & interfaces
| AC outlets quantity | 16 AC outlet(s) |
|---|---|
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
Weight & dimensions
| Width | 44 mm |
|---|---|
| Depth | 730 mm |
| Height | 44 mm |
| Weight | 1.88 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
