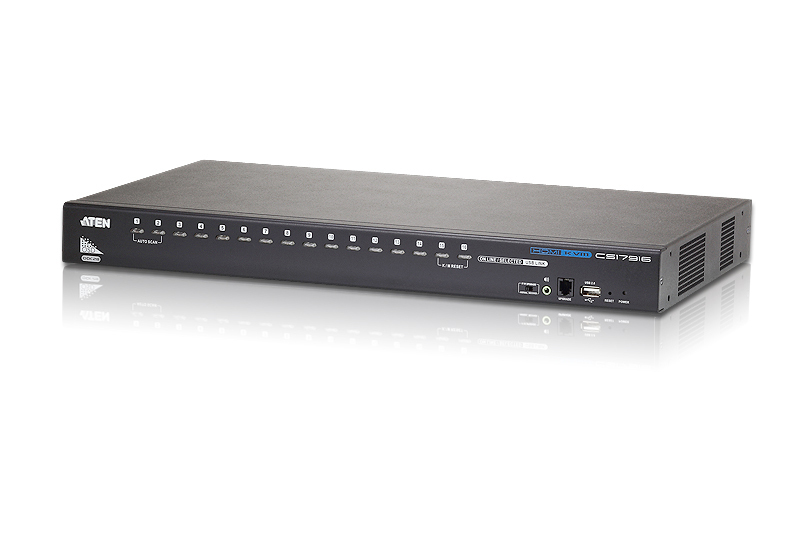

ATEN 16 PORT USB 2.0 HDMI KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS17916-AT-U
- MPN: CS17916-AT-U
Overview
The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
Key features
- Number of computers controlled: 16
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 16
- USB 2.0 Type-B ports quantity: 16
- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 17
- Number of microphone inputs: 1
- DC-in jack: Yes
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 8.66 W
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 8.66 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
Packaging data
| Package width | 133 mm |
|---|---|
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 5.68 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 16 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 16 |
| USB 2.0 Type-B ports quantity | 16 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 17 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 432.4 mm |
|---|---|
| Depth | 257.2 mm |
| Height | 44 mm |
| Weight | 5.1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$1,866.44inc GST
