ATEN 19" 8 PORT LCD KVM Networking > Network Accessories

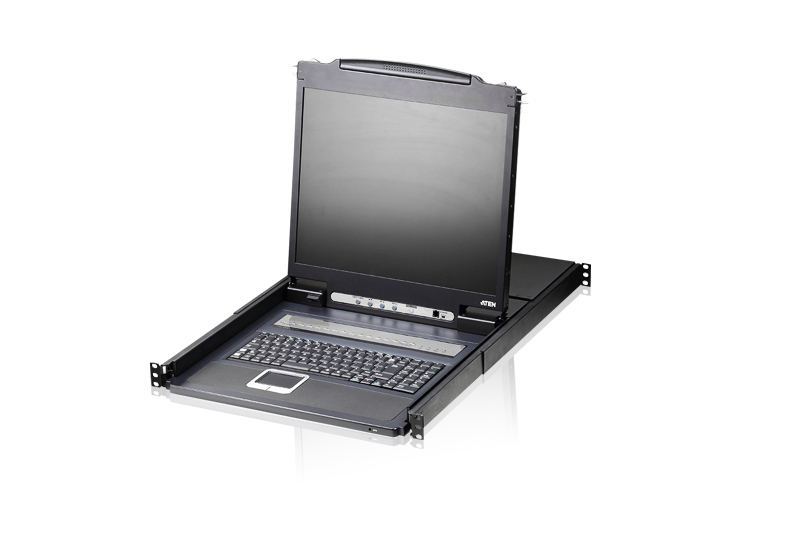

Brand: ATEN Category: Networking SKU: CL1308N-ATA-AU MPN: CL1308N-ATA-AU Home Networking ATEN ATEN ATEN CL1308N-ATA-AU KVM switch Rack mounting Black Overview Specifications Questions Overview With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
Key features Number of computers controlled: 128 Keyboard port type: PS/2 Mouse port type: USB Video port type: VGA VGA (D-Sub) ports quantity: 8 Console ports: VGA (D-Sub) HD type: WUXGA Maximum resolution: 1920 x 1200 pixels Video bandwidth: 60 Hz Scan interval: 1,255 s DDC2B support: Yes Hot-Plug support: Yes Firmware upgradeable: Yes Rack mounting: Yes Rack capacity: 1U Product colour: Black Housing material: Metal, Plastic LED indicators: Yes Push button: Yes Hot keys: Yes Built-in display: Yes Display: LCD Display diagonal: 48.3 cm (19") On Screen Display (OSD): Yes At a glance Power source AC Input voltage 100 - 240 V AC input frequency 50 - 60 Hz Input current 1 A Power consumption (typical) 22 W Rack mounting Yes Rack capacity 1U Product colour Black
All 48 specifications Specifications Power Power source AC Input voltage 100 - 240 V AC input frequency 50 - 60 Hz Input current 1 A Power consumption (typical) 22 W
Design Rack mounting Yes Rack capacity 1U Product colour Black Housing material Metal, Plastic LED indicators Yes Push button Yes Hot keys Yes
Display Built-in display Yes Display LCD Display diagonal 48.3 cm (19") On Screen Display (OSD) Yes
Performance HD type WUXGA Maximum resolution 1920 x 1200 pixels Video bandwidth 60 Hz Scan interval 1,255 s DDC2B support Yes Hot-Plug support Yes Firmware upgradeable Yes
Packaging data Package width 668 mm Package depth 833 mm Package height 135 mm Package weight 16.1 kg
Sustainability Compliance certificates RoHS
Packaging content Cables included AC, KVM Quick installation guide Yes Manual Yes Rack mount kit Yes
Ports & interfaces Number of computers controlled 128 Keyboard port type PS/2 Mouse port type USB Video port type VGA VGA (D-Sub) ports quantity 8 Console ports VGA (D-Sub)
System requirements Windows operating systems supported Yes Linux operating systems supported Yes Mac operating systems supported Yes
Weight & dimensions Width 483 mm Depth 689.2 mm Height 44 mm Weight 12.7 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80%
$2,851.99 inc GST
