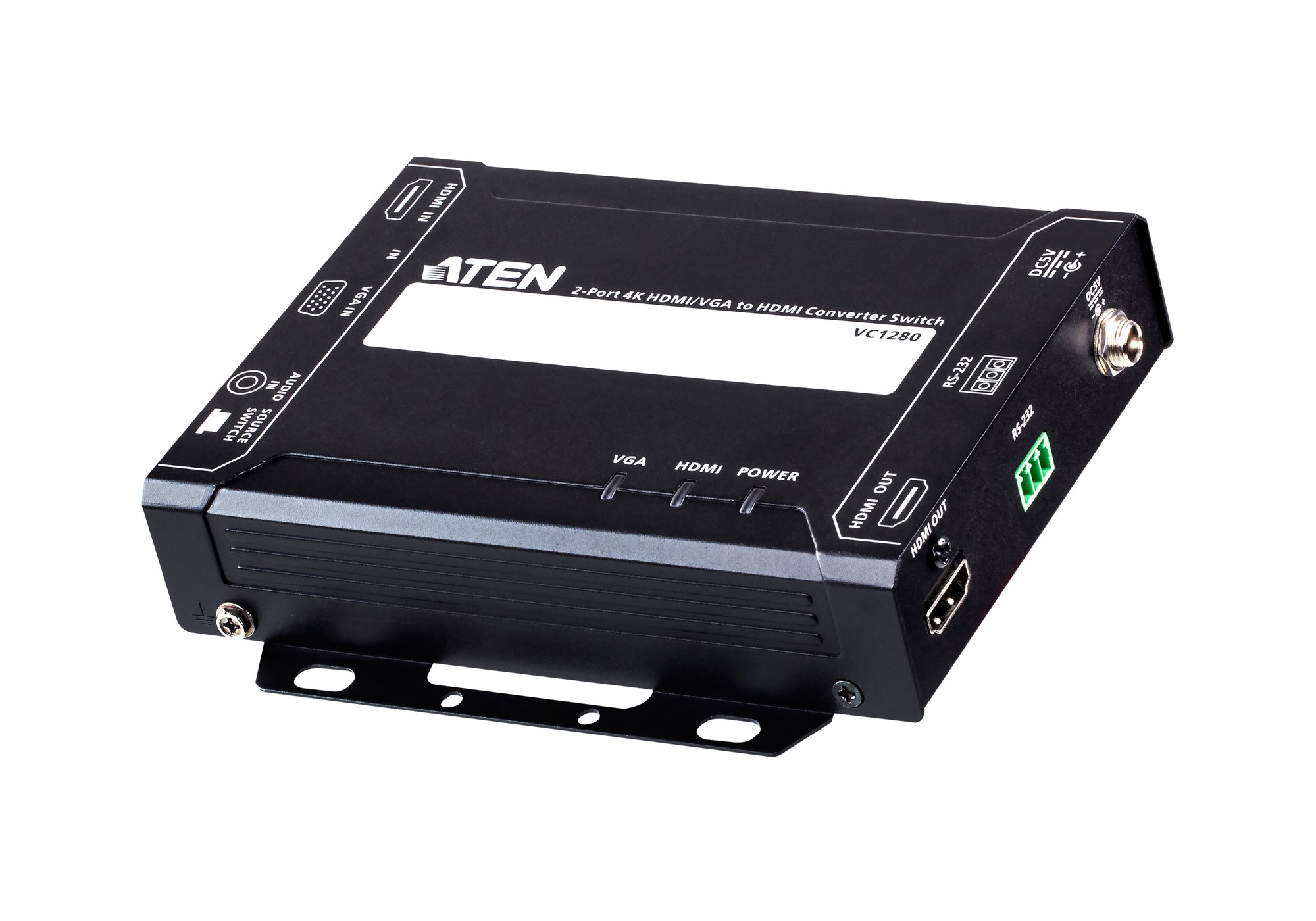

ATEN 2 PORT 4K 30HZ HDMI/VGA TO HDMI CONVERTER SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: VC1280-AT-U
- MPN: VC1280-AT-U
−20%
Overview
The ATEN VC1280 is a user-friendly device that simply connects HDMI and VGA sources to one HDMI display or projector. Apart from being compliant with HDCP 1.4, the VC1280 also supports HDMI 1.4 including 3D, Deep Color and 4K (3840 X 2160@30 Hz). In addition, the VC1280 features built-in VGA conversion, which allows you to transmit VGA signals to HDMI output without using extra adapters or scalers.
1x VC1280 2-Port 4K HDMI/VGA to HDMI Converter Switch
1x 0AD8-1F05-26M1 Power Adapter
1x RS-232 Terminal Block
1x User Instructions
1x VC1280 2-Port 4K HDMI/VGA to HDMI Converter Switch
1x 0AD8-1F05-26M1 Power Adapter
1x RS-232 Terminal Block
1x User Instructions
Key features
- LED indicators: Power
- Product colour: Black
- Housing material: Metal
- Maximum video resolution: 3840 x 2160 pixels
- Video resolutions: 1920 x 1200,3840 x 2160 pixels
- HDCP: Yes
- Output interface: HDMI
- Video in: HDMI, VGA
- 3.5 mm connector: Yes
- DC-in jack: Yes
- Input voltage: 5 V
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 123 mm
- Depth: 136 mm
- Height: 30 mm
- Weight: 520 g
- Power supply included: Yes
- Quantity: 1
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 704 g
Specifications
Power
| Input voltage | 5 V |
|---|
Video
| Maximum video resolution | 3840 x 2160 pixels |
|---|---|
| Video resolutions | 1920 x 1200,3840 x 2160 pixels |
| HDCP | Yes |
Features
| LED indicators | Power |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Logistics data
| Master (outer) case net weight | 5.2 kg |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case gross weight | 7.48 kg |
| Products per master (outer) case | 10 pc(s) |
Packaging data
| Power supply included | Yes |
|---|---|
| Quantity | 1 |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 704 g |
Ports & interfaces
| Output interface | HDMI |
|---|---|
| Video in | HDMI, VGA |
| 3.5 mm connector | Yes |
| DC-in jack | Yes |
Weight & dimensions
| Width | 123 mm |
|---|---|
| Depth | 136 mm |
| Height | 30 mm |
| Weight | 520 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
