ATEN 2 PORT USB 2.0 DVI CABLE KVM SWITCH 2YR Networking > Network Accessories

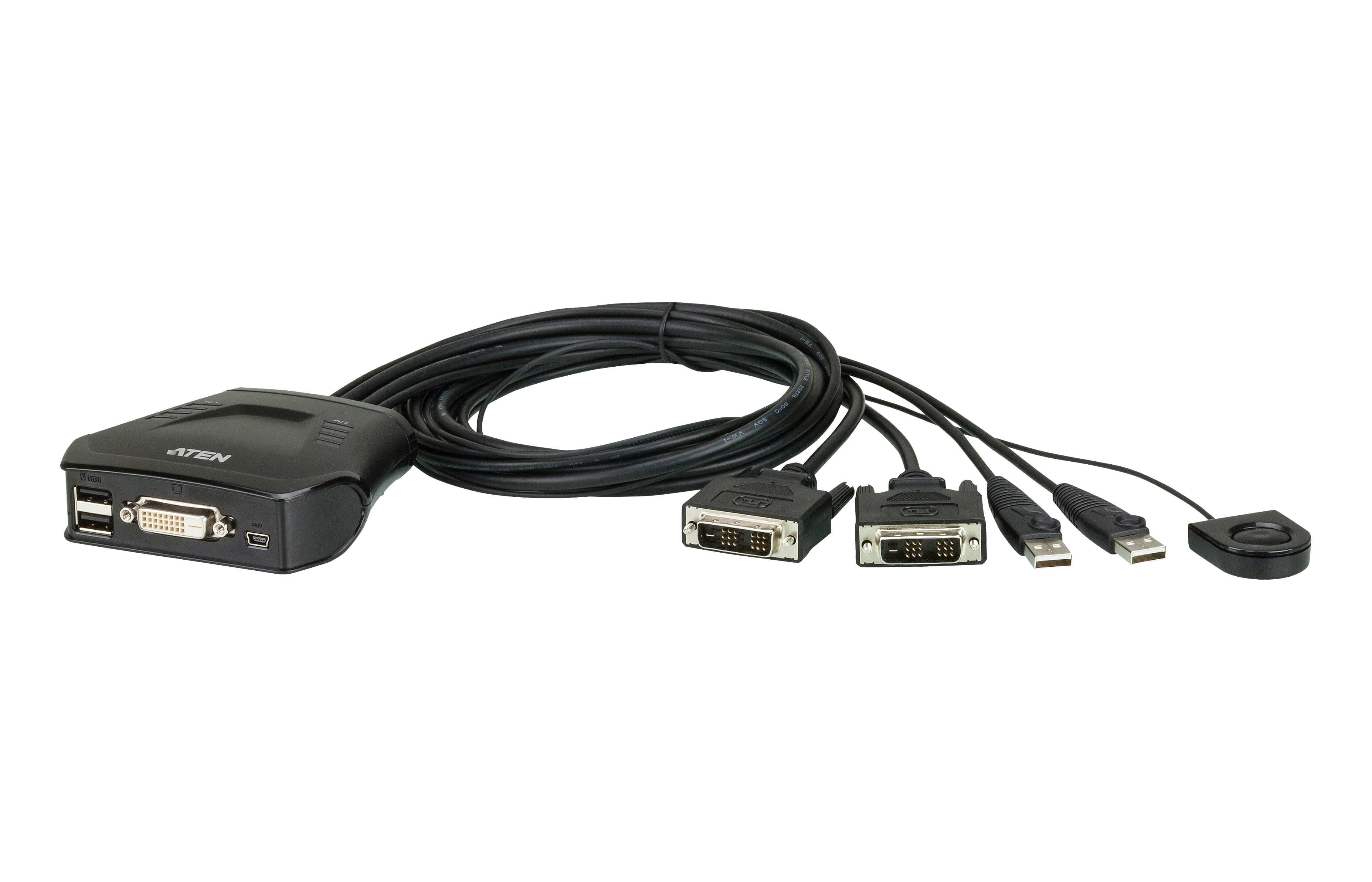

Brand: ATEN Category: Switches SKU: CS22D-AT MPN: CS22D-AT Home Switches ATEN ATEN ATEN 2-Port USB DVI KVM Switch Overview Specifications Questions Overview The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
Key features Number of computers controlled: 2 Keyboard port type: USB Mouse port type: USB Video port type: DVI-D DVI-D ports quantity: 2 Console ports: DVI-D, USB A, Mini-USB B HD type: WUXGA Maximum resolution: 1920 x 1200 pixels Video bandwidth: 60 Hz Rack mounting: No Product colour: Black LED indicators: Yes Built-in display: No Power source: DC Input voltage: 5 V Power consumption (typical): 0.93 W Operating temperature (T-T): 0 - 50 °C Storage temperature (T-T): -20 - 60 °C Operating relative humidity (H-H): 0 - 80% Storage relative humidity (H-H): 0 - 80% Width: 99.5 mm Depth: 96.6 mm Height: 30.1 mm Weight: 340 g At a glance Power source DC Input voltage 5 V Power consumption (typical) 0.93 W Rack mounting No Product colour Black LED indicators Yes Built-in display No HD type WUXGA
All 36 specifications Specifications Power Power source DC Input voltage 5 V Power consumption (typical) 0.93 W
Design Rack mounting No Product colour Black LED indicators Yes
Performance HD type WUXGA Maximum resolution 1920 x 1200 pixels Video bandwidth 60 Hz
Logistics data Master (outer) case net weight 6.8 kg Harmonized System (HS) code 85176200 Master (outer) case width 328 mm Master (outer) case length 389 mm Master (outer) case height 330 mm Master (outer) case gross weight 9.06 kg Products per master (outer) case 20 pc(s)
Packaging data Package width 55 mm Package depth 155 mm Package height 223 mm Package weight 408 g
Packaging content Quick installation guide Yes
Ports & interfaces Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type DVI-D DVI-D ports quantity 2 Console ports DVI-D, USB A, Mini-USB B
Weight & dimensions Width 99.5 mm Depth 96.6 mm Height 30.1 mm Weight 340 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$165.59 inc GST
