ATEN 2 PORT USB 2.0 DVI CABLE KVMP SWITCH WITH AUDIO Networking > Network Accessories

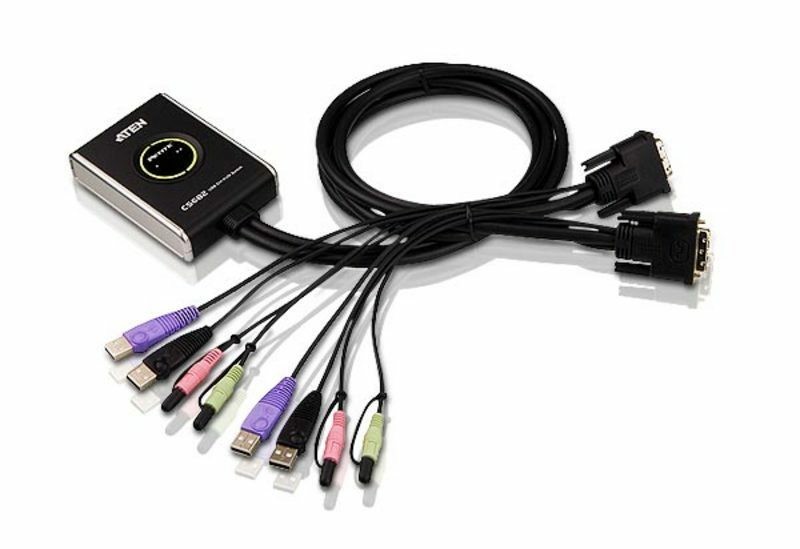

Brand: ATEN Category: Switches SKU: CS682-AT MPN: CS682-AT Home Switches ATEN ATEN ATEN 2-Port USB DVI KVM Switch with Audio Overview Specifications Questions Overview The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.
Key features Number of computers controlled: 2 Keyboard port type: USB Mouse port type: USB Video port type: DVI-D DVI-D ports quantity: 2 Console ports: 3.5mm headphone, 3.5mm mic, DVI-D, USB A Console USB ports quantity: 2 USB 2.0 Type-A hub ports quantity: 4 USB connector type: USB Type-A, USB Type-B Audio connections: Yes Headphone outputs: 3 Number of microphone inputs: 3 HD type: WUXGA Maximum resolution: 1920 x 1200 pixels Video bandwidth: 60 Hz Scan interval: 3,5,10,20 s Rack mounting: No Product colour: Black LED indicators: Yes Built-in display: No Power source: DC Input voltage: 5 V Power consumption (typical): 1.9 W Operating temperature (T-T): 0 - 50 °C At a glance Power source DC Input voltage 5 V Power consumption (typical) 1.9 W Rack mounting No Product colour Black LED indicators Yes Built-in display No HD type WUXGA
All 44 specifications Specifications Power Power source DC Input voltage 5 V Power consumption (typical) 1.9 W
Design Rack mounting No Product colour Black LED indicators Yes
Performance HD type WUXGA Maximum resolution 1920 x 1200 pixels Video bandwidth 60 Hz Scan interval 3,5,10,20 s
Logistics data Master (outer) case net weight 4.6 kg Harmonized System (HS) code 85176200 Master (outer) case width 395 mm Master (outer) case length 405 mm Master (outer) case height 182 mm Master (outer) case gross weight 6.61 kg Products per master (outer) case 10 pc(s)
Packaging data Package width 70 mm Package depth 163 mm Package height 235 mm Package weight 590 g
Packaging content Quick installation guide Yes Manual Yes
Ports & interfaces Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type DVI-D DVI-D ports quantity 2 Console ports 3.5mm headphone, 3.5mm mic, DVI-D, USB A Console USB ports quantity 2 USB 2.0 Type-A hub ports quantity 4 USB connector type USB Type-A, USB Type-B Audio connections Yes Headphone outputs 3 Number of microphone inputs 3
Weight & dimensions Width 111.5 mm Depth 78 mm Height 24 mm Weight 460 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$177.09 inc GST
