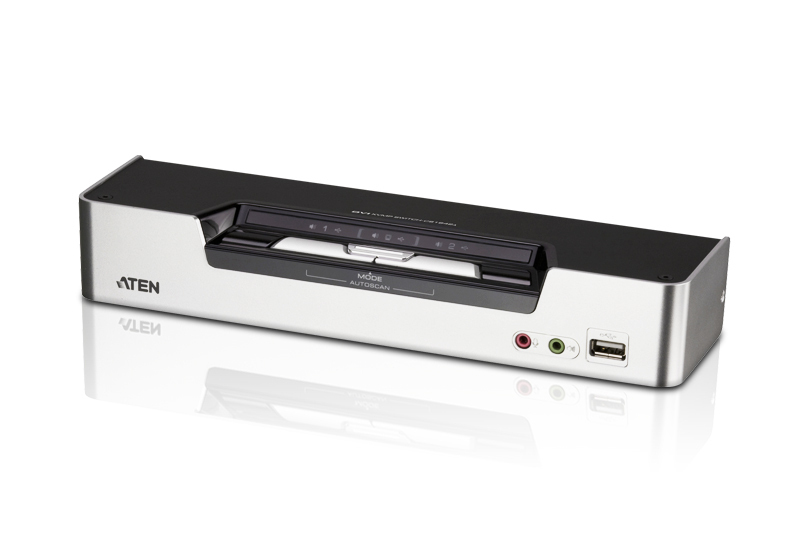

ATEN 2 PORT USB 2.0 DVI DUAL VIEW KVMP SWITCH Networking > Network Accessories
Brand: ATEN Category: Switches SKU: CS1642A-AT-U MPN: CS1642A-AT-U Home Switches ATEN ATEN ATEN CS1642A-AT-U KVM switch Rack mounting Black, Silver Overview Specifications Questions Overview The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 2-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
Key features Number of computers controlled: 2 Keyboard port type: USB Mouse port type: USB Video port type: DVI-I DVI-I ports quantity: 6 Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A Console USB ports quantity: 2 USB 2.0 Type-A hub ports quantity: 2 Audio connections: Yes Headphone outputs: 2 Number of microphone inputs: 1 DC-in jack: Yes Ethernet LAN: Yes Ethernet LAN (RJ-45) ports: 1 Maximum resolution: 2560 x 1600 pixels Video bandwidth: 60 Hz Scan interval: 1,99 s Rack mounting: Yes Rack capacity: 1U Product colour: Black, Silver Housing material: Metal, Plastic LED indicators: Yes Push button: Yes Hot keys: Yes At a glance Power source DC Input voltage 5.3 V Power consumption (typical) 10.6 W Rack mounting Yes Rack capacity 1U Product colour Black, Silver Housing material Metal, Plastic LED indicators Yes
All 48 specifications Specifications Power Power source DC Input voltage 5.3 V Power consumption (typical) 10.6 W
Design Rack mounting Yes Rack capacity 1U Product colour Black, Silver Housing material Metal, Plastic LED indicators Yes Push button Yes Hot keys Yes
Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1
Performance Maximum resolution 2560 x 1600 pixels Video bandwidth 60 Hz Scan interval 1,99 s
Packaging data Package width 98 mm Package depth 325 mm Package height 210 mm Package weight 2 kg
Sustainability Compliance certificates RoHS
Packaging content Cables included DVI, KVM Quick installation guide Yes Manual Yes AC adapter included Yes
Ports & interfaces Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type DVI-I DVI-I ports quantity 6 Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A Console USB ports quantity 2 USB 2.0 Type-A hub ports quantity 2 Audio connections Yes Headphone outputs 2 Number of microphone inputs 1 DC-in jack Yes
System requirements Windows operating systems supported Yes Linux operating systems supported Yes Mac operating systems supported Yes Other operating systems supported Yes
Weight & dimensions Width 262.3 mm Depth 76.8 mm Height 44 mm Weight 1.72 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80%
$838.34 inc GST
