ATEN 2 PORT USB 2.0 HDMI KVMP SWITCH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Switches
  • SKU: CS1792-AT-U
  • MPN: CS1792-AT-U
ATEN

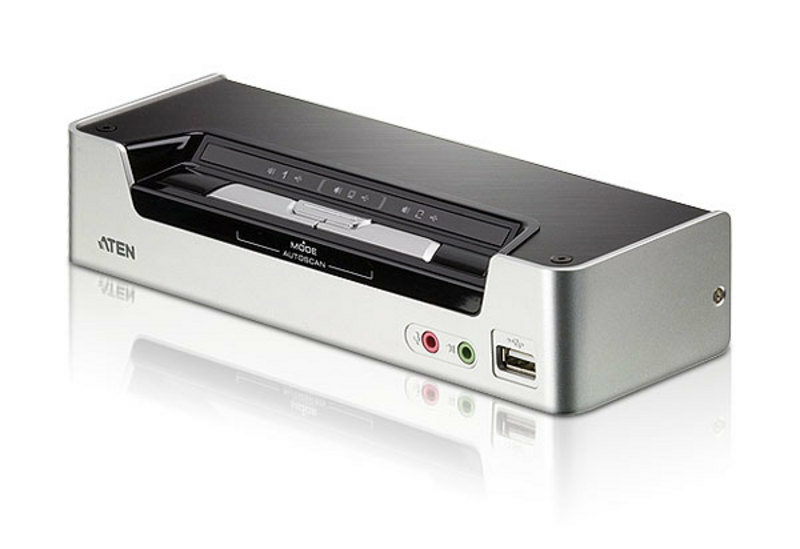

ATEN CS1792-AT-U KVM switch Black, Grey

Our SKU
MPN
ATEN 2 PORT USB 2.0 HDMI KVMP SWITCH — ATEN

Overview

With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
1x CS1792 USB 2.0 HDMI KVMP™ Switch
2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Key features

  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 2
  • Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 4
  • DC-in jack: Yes
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black, Grey
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC

Specifications

Power

Power sourceDC
Input voltage5.3 V
Power consumption (typical)5.35 W

Design

Product colourBlack, Grey
Housing materialMetal, Plastic
LED indicatorsYes
Hot keysYes

Display

Built-in displayNo

Performance

HD typeWUXGA
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Scan interval1,5,99 s

Packaging data

Package width95 mm
Package depth265 mm
Package height220 mm
Package weight1.37 kg

Packaging content

Quick installation guideYes
ManualYes

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity2
Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity2
USB hubYes
USB 2.0 Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs4
Number of microphone inputs4
DC-in jackYes

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Width206.3 mm
Depth72.4 mm
Height44 mm
Weight1.04 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Questions

$378.34inc GST
