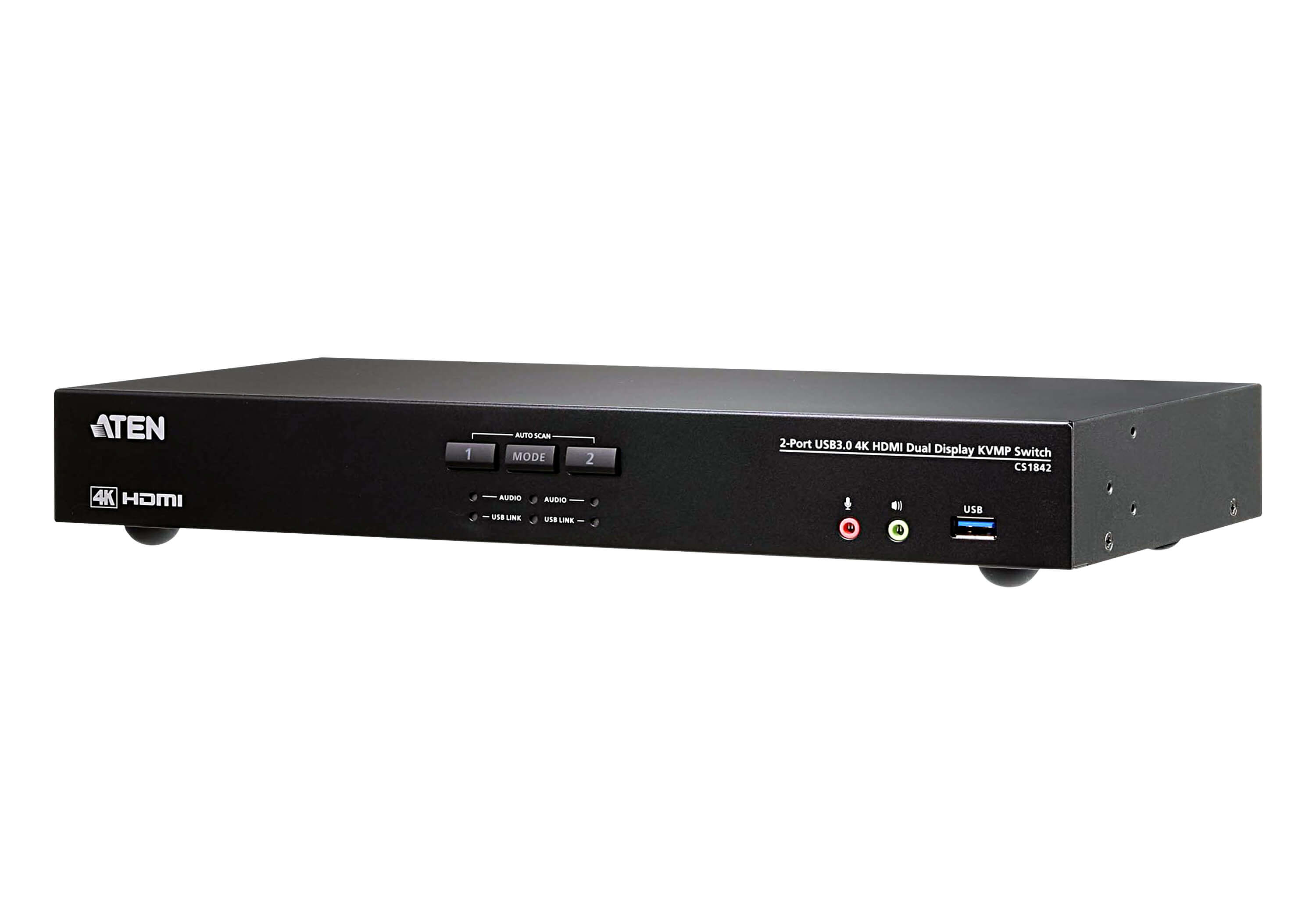

ATEN 2 PORT USB 3.0 4K 60HZ DUAL HDMI KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1842-AT-U
- MPN: CS1842-AT-U
−5%
Overview
1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Speaker Cables
2x LIN5-0205-21DG Microphone Cables
1x 0AD8-8012-33MG Power Adapter
1x 2XRT-0016G Remote Port Selector
1x User Instructions
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
- Console ports: 3.5mm headphone, HDMI, USB A
- Console USB ports quantity: 2
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 4
- Number of microphone inputs: 4
- DC-in jack: Yes
- HD type: 4K Ultra HD
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,99 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 12 V |
| Power consumption (typical) | 3.17 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
Logistics data
| Master (outer) case net weight | 8.25 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 11.5 kg |
| Products per master (outer) case | 3 pc(s) |
Packaging data
| Package width | 116 mm |
|---|---|
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 3.52 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
System requirements
| Windows operating systems supported | Yes |
|---|
Weight & dimensions
| Width | 335 mm |
|---|---|
| Depth | 160.5 mm |
| Height | 44 mm |
| Weight | 2.75 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
