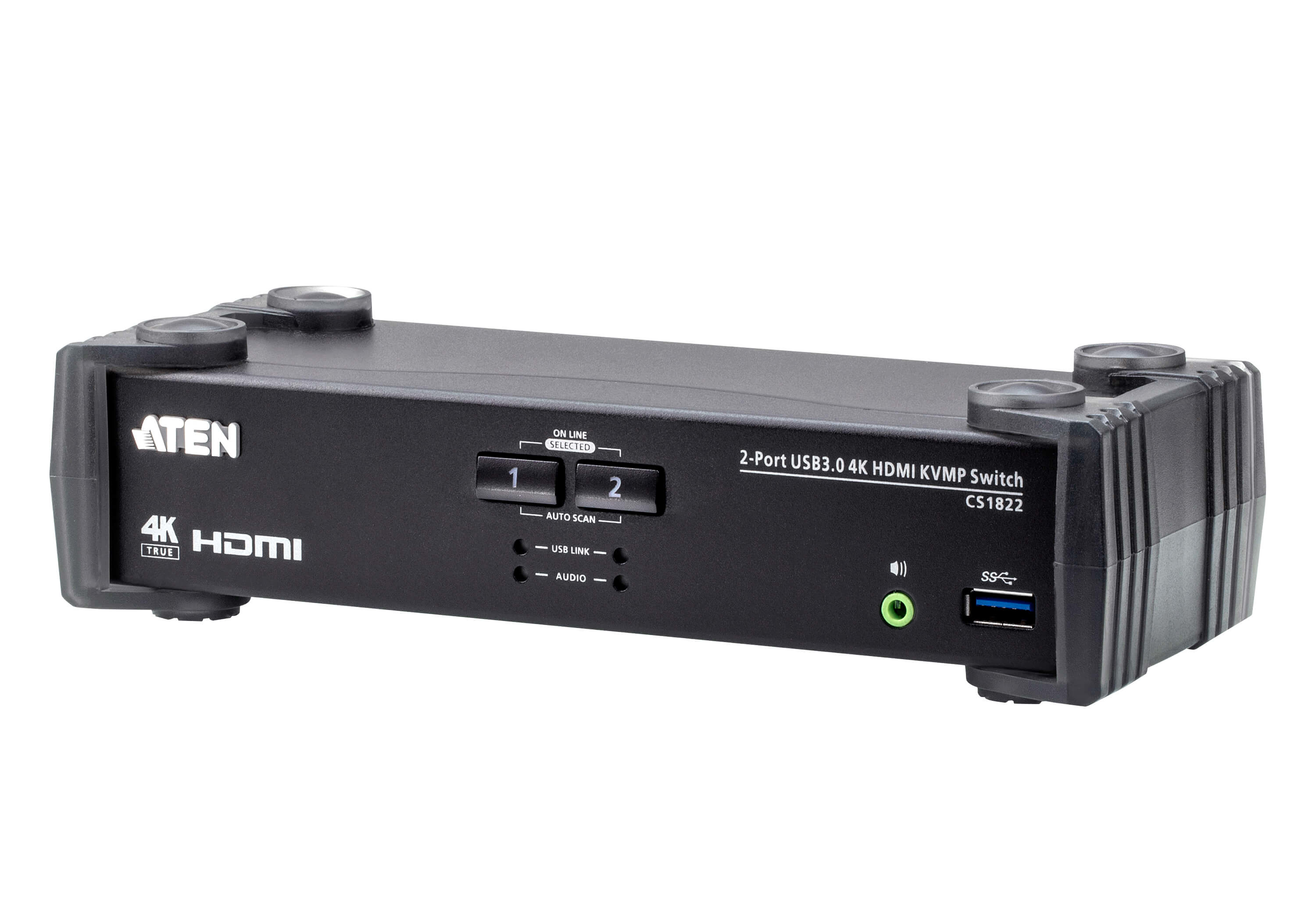

ATEN 2-PORT USB 3.0 4K HDMI KVMP SWITCH
Networking > Network Accessories
- Brand: ATEN
- Category: Switches
- SKU: CS1822-AT-U
- MPN: CS1822-AT-U
Overview
The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 1
- HDMI version: 2.0
- Console ports: HDMI, USB A
- Console USB ports quantity: 2
- USB hub: Yes
- Serial ports quantity: 1
- Headphone outputs: 2
- DC-in jack: Yes
- HD type: 4K DCI
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- HDCP: Yes
- Firmware upgradeable: Yes
- Product colour: Black
- Housing material: Metal, Plastic
- LED indicators: Yes
- Push button: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5 V
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 1.78 W |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | 4K DCI |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| HDCP | Yes |
| Firmware upgradeable | Yes |
Sustainability
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Console ports | HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| Serial ports quantity | 1 |
| Headphone outputs | 2 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 88 mm |
|---|---|
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 740 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
$576.14inc GST
