ATEN 2 PORT USB HDMI CABLE KVM SWTCH
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: CS692-AT
- MPN: CS692-AT
Overview

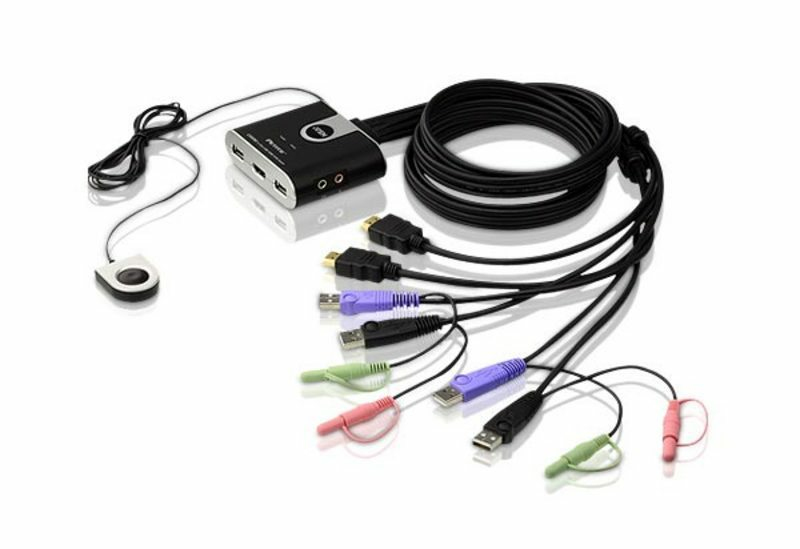

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 2
- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- Console USB ports quantity: 2
- USB 2.0 Type-A hub ports quantity: 4
- USB connector type: USB Type-A
- Audio connections: Yes
- Headphone outputs: 3
- Number of microphone inputs: 3
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 3,5,10,20 s
- Rack mounting: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- Power source: DC
Specifications
Power
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|
Performance
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
Logistics data
| Master (outer) case net weight | 4.09 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 182 mm |
| Master (outer) case gross weight | 6.13 kg |
| Products per master (outer) case | 10 pc(s) |
Packaging data
| Package width | 70 mm |
|---|---|
| Package depth | 163 mm |
| Package height | 235 mm |
| Package weight | 550 g |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
Weight & dimensions
| Width | 82.4 mm |
|---|---|
| Depth | 66.5 mm |
| Height | 25.2 mm |
| Weight | 409 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
$135.69inc GST
