ATEN 2 PORT USB VGA CABLE KVM SWITCH Networking > Network Accessories

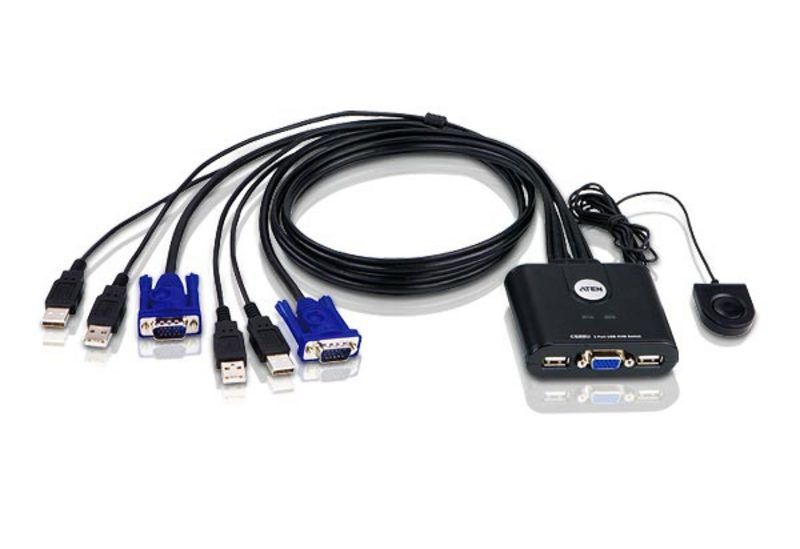

Brand: ATEN Category: Switches SKU: CS22U-AT MPN: CS22U-AT Home Switches ATEN ATEN ATEN 2-Port USB VGA KVM Switch Overview Specifications Questions Overview The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers- a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.
Key features Number of computers controlled: 2 Keyboard port type: USB Mouse port type: USB Video port type: VGA VGA (D-Sub) ports quantity: 2 Console ports: USB A, VGA (D-Sub) USB hub: Yes USB 2.0 Type-A hub ports quantity: 2 USB connector type: USB Type-A HD type: QXGA Maximum resolution: 2048 x 1536 pixels DDC2B support: Yes Rack mounting: No Product colour: Black Housing material: Plastic LED indicators: Yes Built-in display: No Power source: DC Input voltage: 5 V Power consumption (typical): 0.14 W Operating temperature (T-T): 0 - 50 °C Storage temperature (T-T): -20 - 60 °C Operating relative humidity (H-H): 0 - 80% Storage relative humidity (H-H): 0 - 80% At a glance Power source DC Input voltage 5 V Power consumption (typical) 0.14 W Rack mounting No Product colour Black Housing material Plastic LED indicators Yes Built-in display No
All 40 specifications Specifications Power Power source DC Input voltage 5 V Power consumption (typical) 0.14 W
Design Rack mounting No Product colour Black Housing material Plastic LED indicators Yes
Performance HD type QXGA Maximum resolution 2048 x 1536 pixels DDC2B support Yes
Logistics data Master (outer) case net weight 6.04 kg Harmonized System (HS) code 85176200 Master (outer) case width 328 mm Master (outer) case length 389 mm Master (outer) case height 330 mm Master (outer) case gross weight 8.48 kg Products per master (outer) case 20 pc(s)
Packaging data Package width 55 mm Package depth 155 mm Package height 223 mm Package weight 400 g
Packaging content Quick installation guide Yes
Ports & interfaces Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type VGA VGA (D-Sub) ports quantity 2 Console ports USB A, VGA (D-Sub) USB hub Yes USB 2.0 Type-A hub ports quantity 2 USB connector type USB Type-A
Weight & dimensions Width 82.4 mm Depth 70.1 mm Height 24.6 mm Weight 302 g
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$57.49 inc GST
