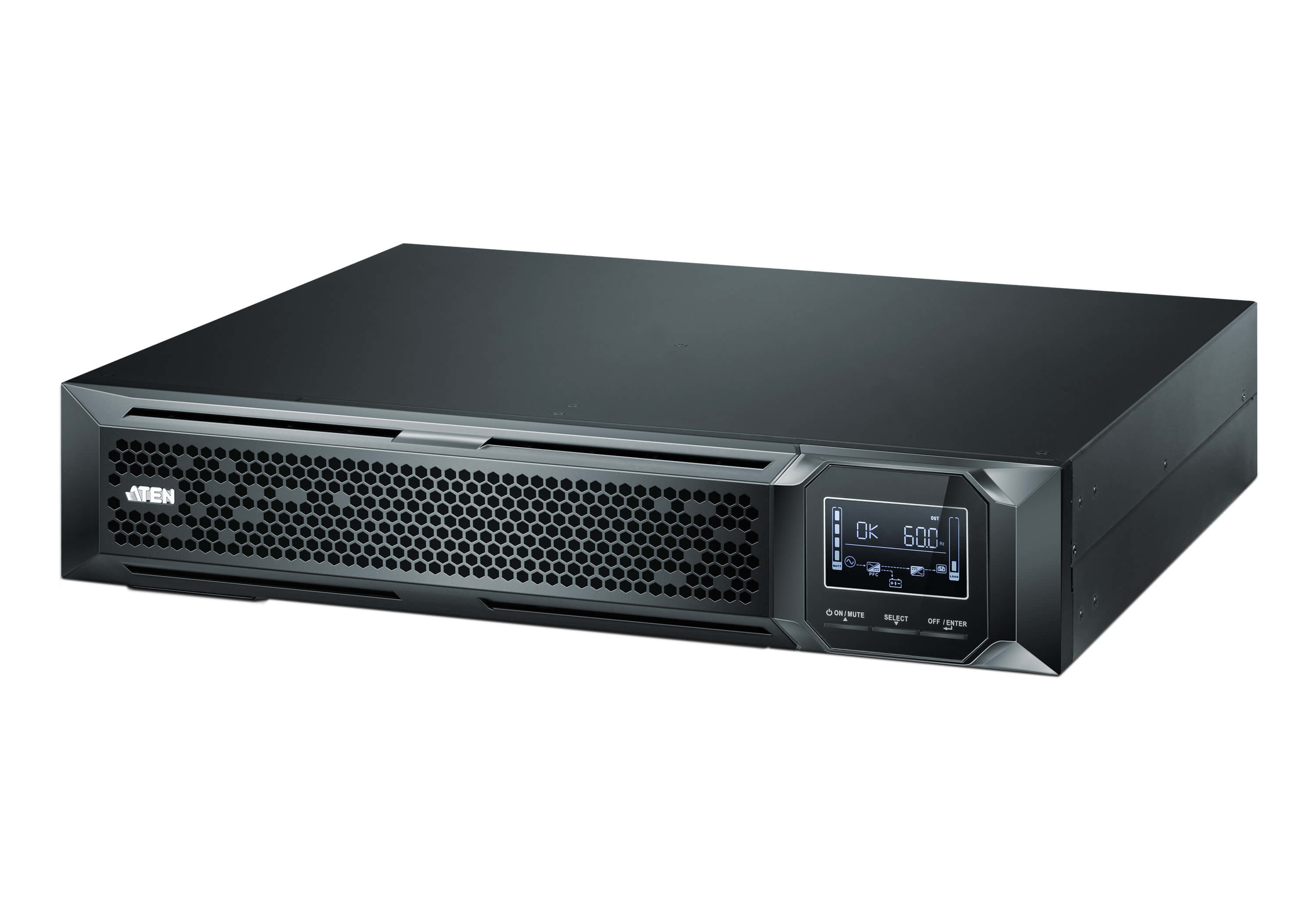

ATEN 3000VA/3000W PROFESSIONAL ONLINE UPS WITH USB/DB9 CONNECTION
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: OL3000HV-AT-G
- MPN: OL3000HV-AT-G
Overview
The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 3000 W
- Waveform: Sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 300 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Response time: 4 ms
- Efficiency: 90%
- Efficiency (ECO mode): 96%
- Crest factor: 3:1
- ECO mode: Yes
- Noise level: 50 dB
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 9 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
Specifications
Design
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 2U |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | Black |
| LED indicators | Yes |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 72 V |
| Number of battery cells | 6 |
| Number of batteries supported | 6 |
| Typical backup time at full load | 2.96 min |
| Typical backup time at half load | 10.1 min |
| Battery recharge time | 3 h |
| Charging current | 2 A |
| Cold start | Yes |
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 3000 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Response time | 4 ms |
| Efficiency | 90% |
| Efficiency (ECO mode) | 96% |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Noise level | 50 dB |
Certificates
| Certification | CE RoHS |
|---|
Logistics data
| Master (outer) case net weight | 27.6 kg |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Master (outer) case width | 600 mm |
| Master (outer) case length | 760 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 34.8 kg |
| Products per master (outer) case | 1 pc(s) |
Packaging data
| Package width | 88 mm |
|---|---|
| Package depth | 438 mm |
| Package height | 630 mm |
| Package weight | 34.8 kg |
Packaging content
| Cables included | Output power cable, Power load cable, RS-232, USB cable |
|---|---|
| Manual | Yes |
Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
Weight & dimensions
| Width | 438 mm |
|---|---|
| Depth | 88 mm |
| Height | 630 mm |
| Weight | 27.6 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
