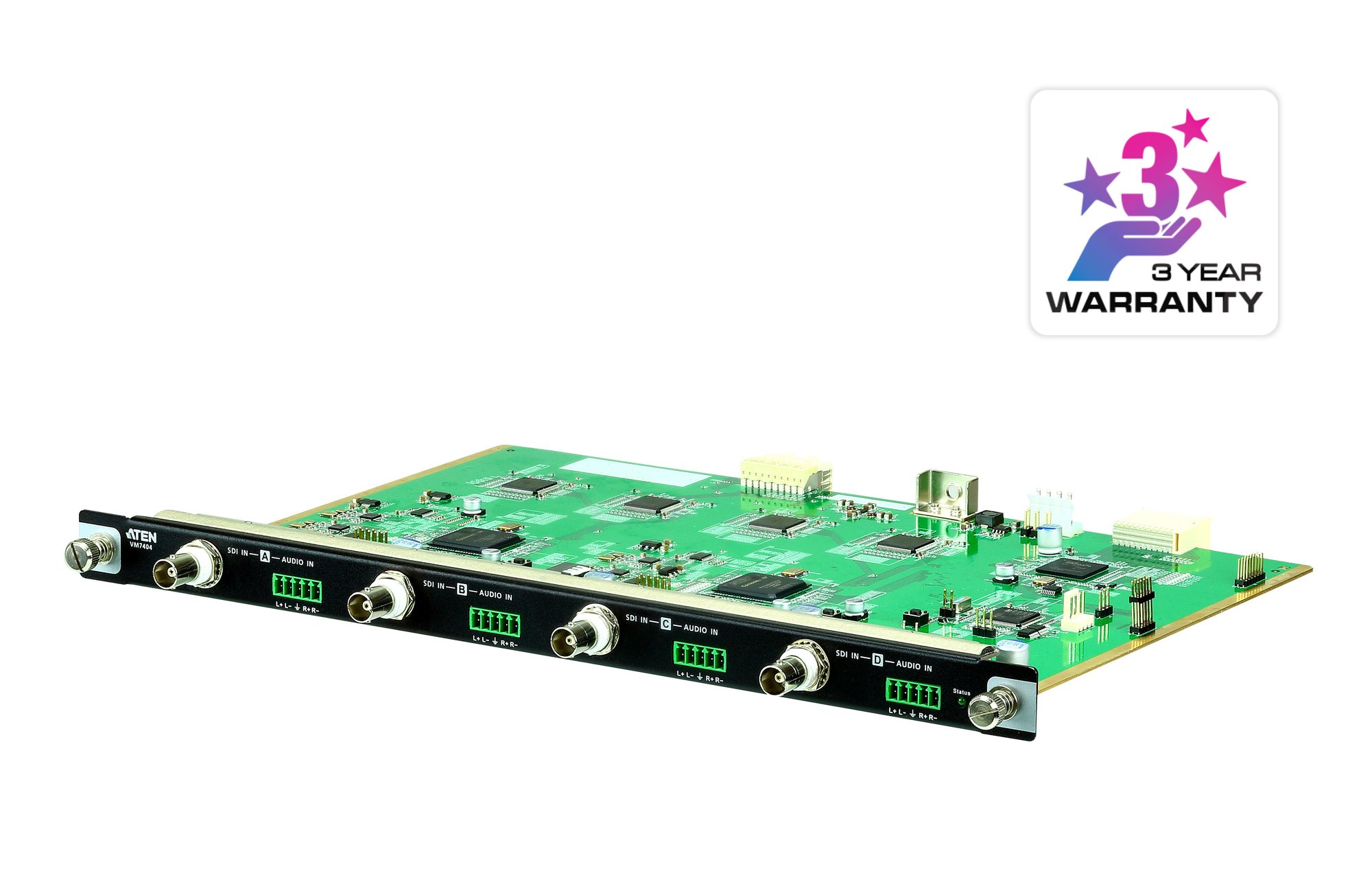

ATEN 4 PORT SDI INPUT BOARD FOR VM1600A/VM3200
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VM7404-AT
- MPN: VM7404-AT
−14%
Overview
The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATEN Modular Matrix Switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high quality video resolutions up to 1080p @ 60 Hz. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN Modular Matrix Switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices.
1x VM7404 4-Port 3G-SDI Input Board
4x Terminal Block Connectors
1x User Instructions
1x VM7404 4-Port 3G-SDI Input Board
4x Terminal Block Connectors
1x User Instructions
Key features
- Product type: Input board
- Product colour: Black, Green
- Material: Metal
- BNC ports quantity: 4
- Power consumption (typical): 16 W
- Width: 352 mm
- Depth: 242 mm
- Height: 22 mm
- Weight: 600 g
- Package width: 285 mm
- Package depth: 426 mm
- Package height: 57 mm
- Package weight: 960 g
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Products per master (outer) case: 2 pc(s)
- Master (outer) case gross weight: 2.4 kg
- Master (outer) case length: 440 mm
- Master (outer) case width: 300 mm
- Master (outer) case height: 138 mm
- Master (outer) case net weight: 1.2 kg
Specifications
Power
| Power consumption (typical) | 16 W |
|---|
Design
| Product type | Input board |
|---|---|
| Product colour | Black, Green |
| Material | Metal |
Logistics data
| Products per master (outer) case | 2 pc(s) |
|---|---|
| Master (outer) case gross weight | 2.4 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.2 kg |
Packaging data
| Package width | 285 mm |
|---|---|
| Package depth | 426 mm |
| Package height | 57 mm |
| Package weight | 960 g |
Ports & interfaces
| BNC ports quantity | 4 |
|---|
Weight & dimensions
| Width | 352 mm |
|---|---|
| Depth | 242 mm |
| Height | 22 mm |
| Weight | 600 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
