ATEN 4 PORT USB 2.0 DVI KVMP SWITCH Networking > Network Accessories

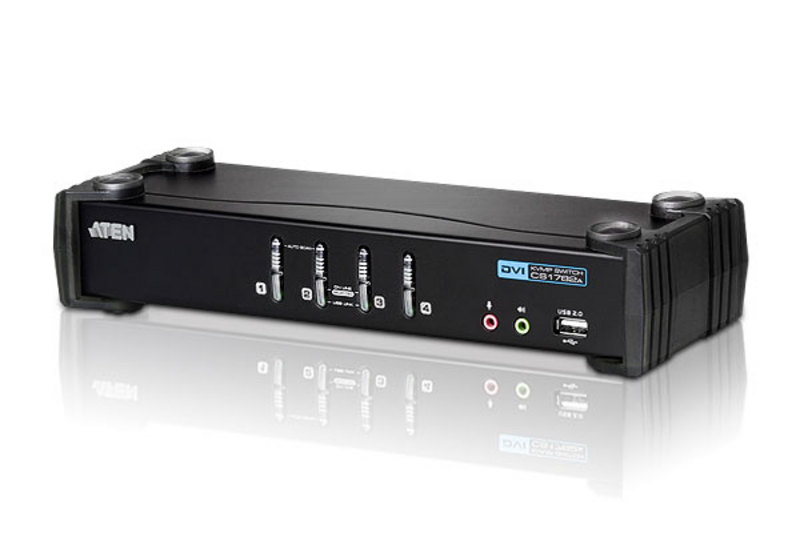

Brand: ATEN Category: Switches SKU: CS1764A-AT-U MPN: CS1764A-AT-U Home Switches ATEN ATEN ATEN 4-Port USB DVI KVM Switch with Audio & USB 2.0 Hub (KVM Cables… Overview Specifications Questions Overview The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
Key features Number of computers controlled: 4 Keyboard port type: USB Mouse port type: USB Video port type: DVI-I DVI-I ports quantity: 4 USB 2.0 Type-B ports quantity: 4 Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A Console USB ports quantity: 4 USB hub: Yes USB connector type: USB Type-A, USB Type-B Audio connections: Yes Headphone outputs: 6 Number of microphone inputs: 6 DC-in jack: Yes HD type: WUXGA Maximum resolution: 1920 x 1200 pixels Video bandwidth: 60 Hz Scan interval: 1,5,99 s DDC2B support: Yes Product colour: Black Housing material: Metal LED indicators: Yes Push button: Yes Hot keys: Yes At a glance Power source DC Input voltage 5.3 V Power consumption (typical) 4.8 W Product colour Black Housing material Metal LED indicators Yes Push button Yes Hot keys Yes
All 49 specifications Specifications Power Power source DC Input voltage 5.3 V Power consumption (typical) 4.8 W
Design Product colour Black Housing material Metal LED indicators Yes Push button Yes Hot keys Yes
Performance HD type WUXGA Maximum resolution 1920 x 1200 pixels Video bandwidth 60 Hz Scan interval 1,5,99 s DDC2B support Yes
Logistics data Master (outer) case net weight 10.5 kg Harmonized System (HS) code 85176200 Master (outer) case width 342 mm Master (outer) case length 512 mm Master (outer) case height 232 mm Master (outer) case gross weight 12.7 kg Products per master (outer) case 5 pc(s)
Packaging data Package width 98 mm Package depth 325 mm Package height 210 mm Package weight 2.41 kg
Packaging content Quick installation guide Yes Manual Yes
Ports & interfaces Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type DVI-I DVI-I ports quantity 4 USB 2.0 Type-B ports quantity 4 Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A Console USB ports quantity 4 USB hub Yes USB connector type USB Type-A, USB Type-B Audio connections Yes Headphone outputs 6 Number of microphone inputs 6 DC-in jack Yes
Weight & dimensions Width 270 mm Depth 88 mm Height 55.5 mm Weight 2.1 kg
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Storage relative humidity (H-H) 0 - 80%
$470.34 inc GST
